Power Door Lock Control Module: Testing and Inspection

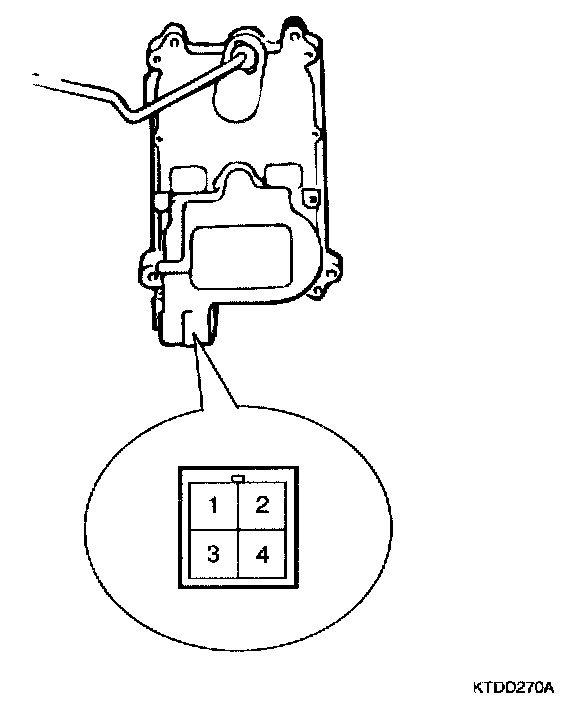

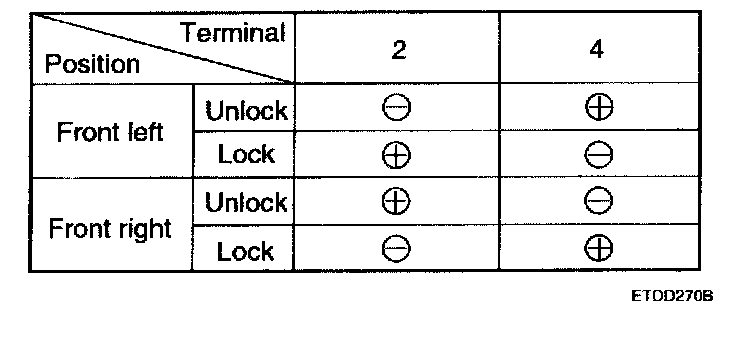

FRONT DOOR LOCK ACTUATOR INSPECTION
1. Remove the front door trim panel. (Refer to BD group- Front door)




2. Disconnect the 4P connector from the actuator.




3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

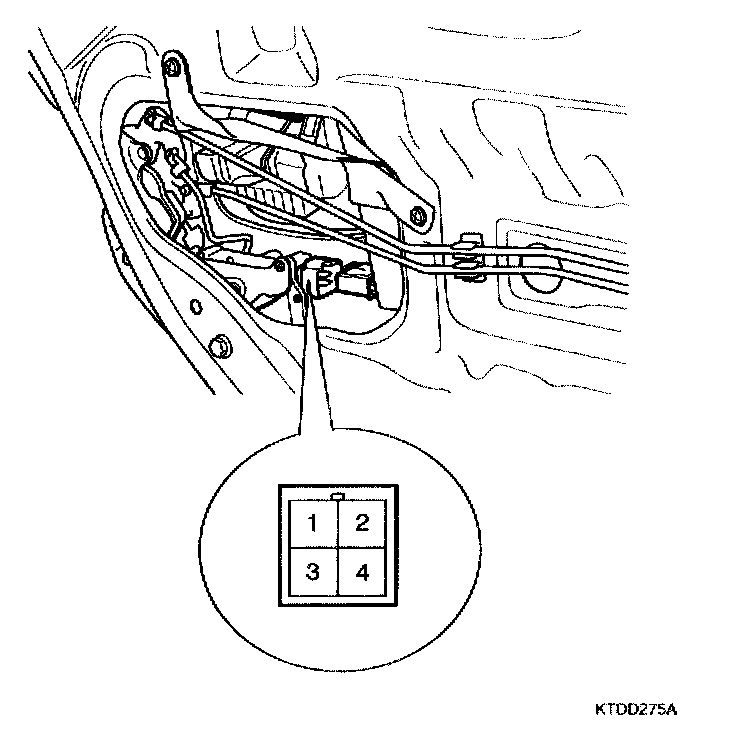

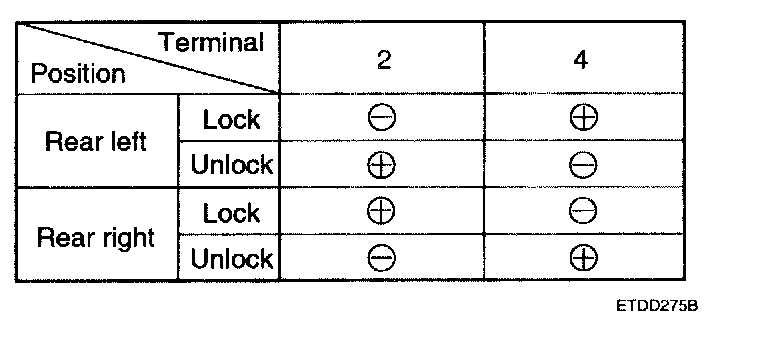

REAR DOOR LOCK ACTUATOR INSPECTION
1. Remove the rear door trim panel. (Refer to BD group Rear door)




2. Disconnect the 4P connector from the actuator.




3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
