Connector View and Numbering Order

CONNECTOR VIEW AND NUMBERING ORDER

Connector View:

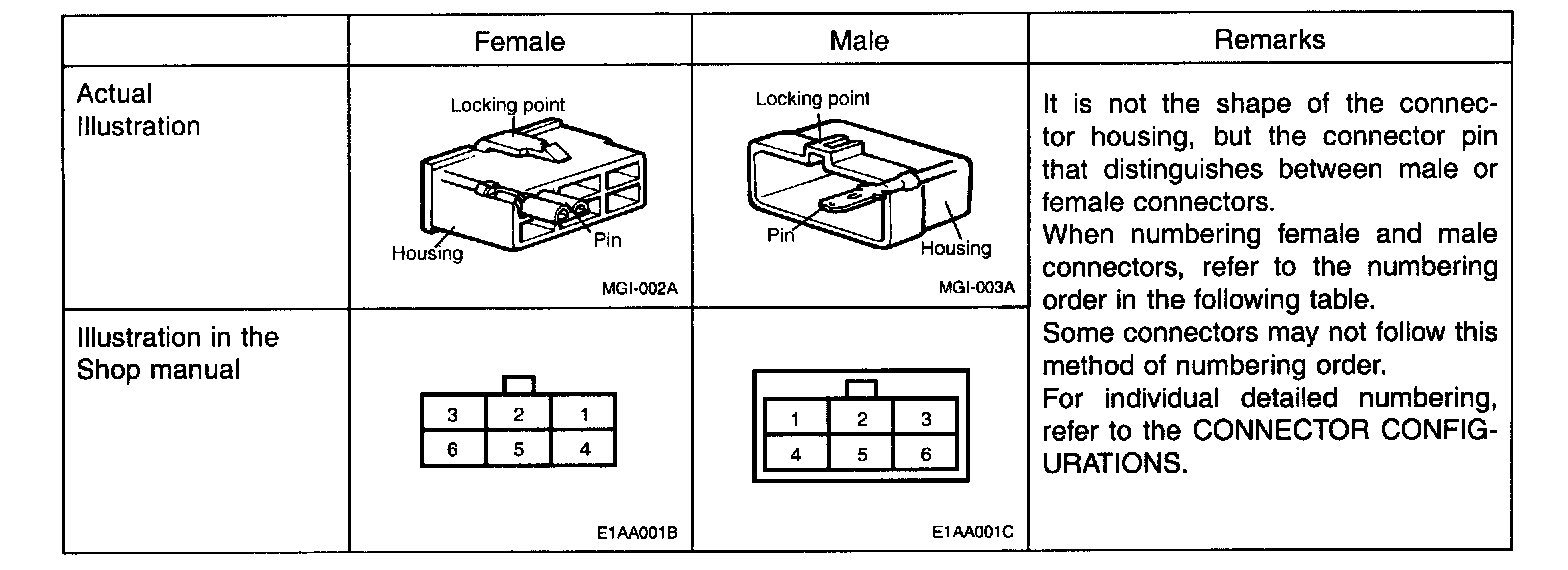

1. CONNECTOR VIEW

NOTE: Unless otherwise stated, all connector views are from the terminal side of the connector.

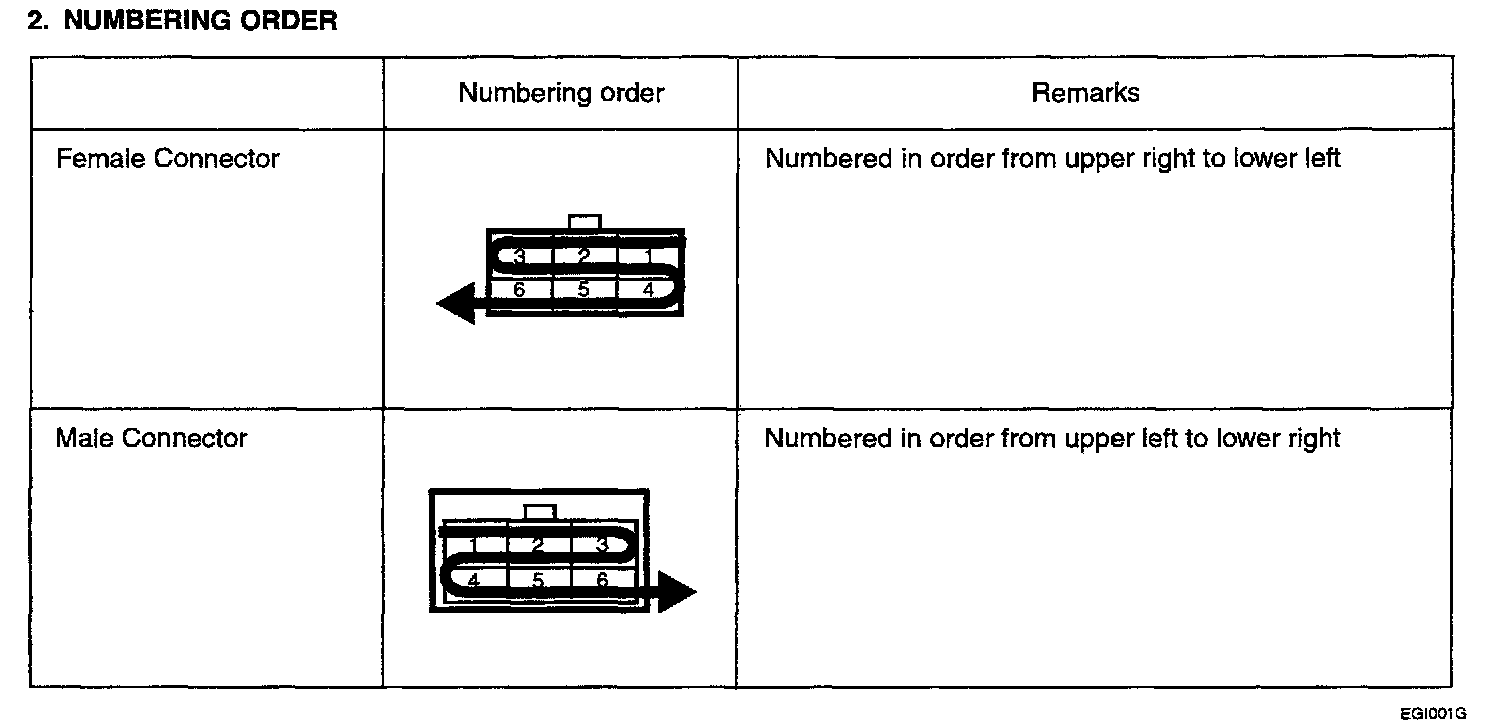

2. NUMBERING ORDER
