Crankshaft

CRANKSHAFT:

Crankshaft journal O.D: ..........50 mm (1.9685 inch)
Crankshaft pin O.D: ...........45 mm (1.7717 inch)
Crankshaft journal, pin out-of-roundness and taper: ..........0.005 mm (0.0002 inch) or less


Connecting rod bearing oil clearance:.................0.018 - 0.036 mm (0.0007 - 0.0014 inch)
Crankshaft main bearing oil clearance .....................NO.1,2,4,5: 0.022 - 0.040 mm (0.0009 - 0.0018 inch) NO.3: 0.028 - 0.046 mm (0.0011 - 0.0018 inch)


Clearance between sensor wheel and crank position sensor: ..............0.5 - 1.1 mm (0.020 - 0.043 inch)

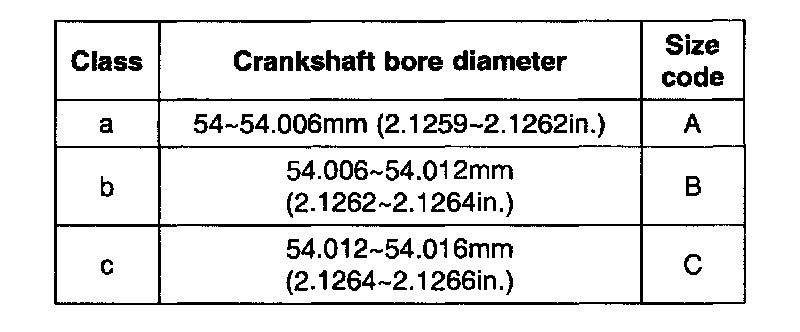

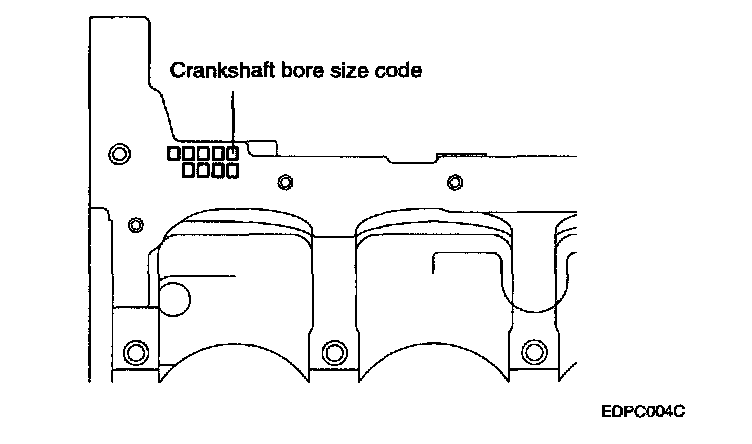

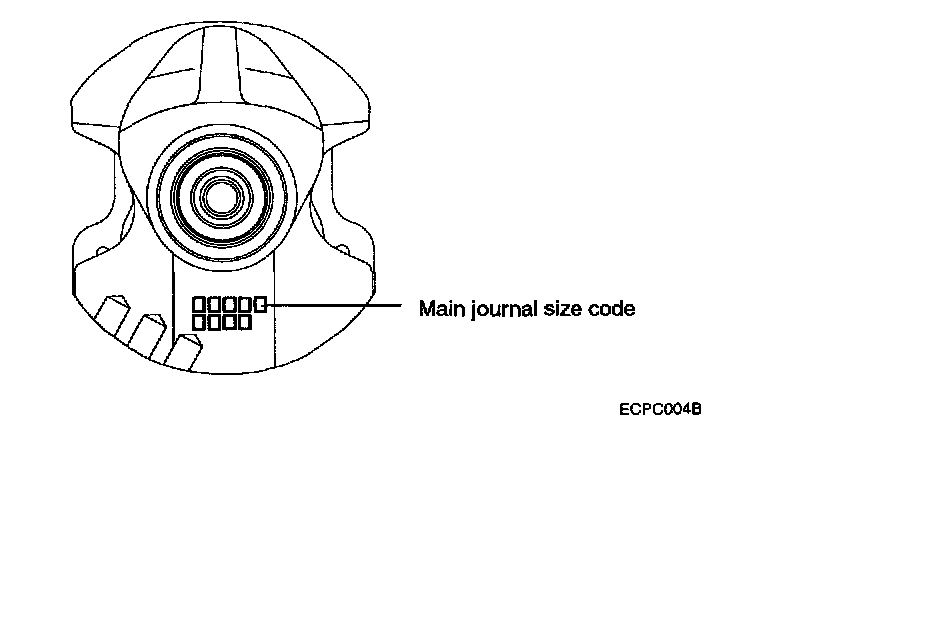

CRANKSHAFT MAIN JOURNAL DIAMETER:

MAIN JOURNAL BEARING THICKNESS / NO 1 2 4 5 (MAIN BEARING):

MAIN JOURNAL BEARING THICKNESS / NO.3 (CENTER BEARING):

Main bearing cap bolt: .......55 - 60 Nm (550 - 600 kg-cm, 41 - 44 ft. lbs.)
Connecting rod cap bolt: .............32 - 35 Nm (320 - 350 kg-cm, 24 - 26 ft. lbs.)


Crankshaft end play: ................0.05 - 0.175 mm (0.0019 - 0.0068 inch)
