External Wiring Diagram (Abs)

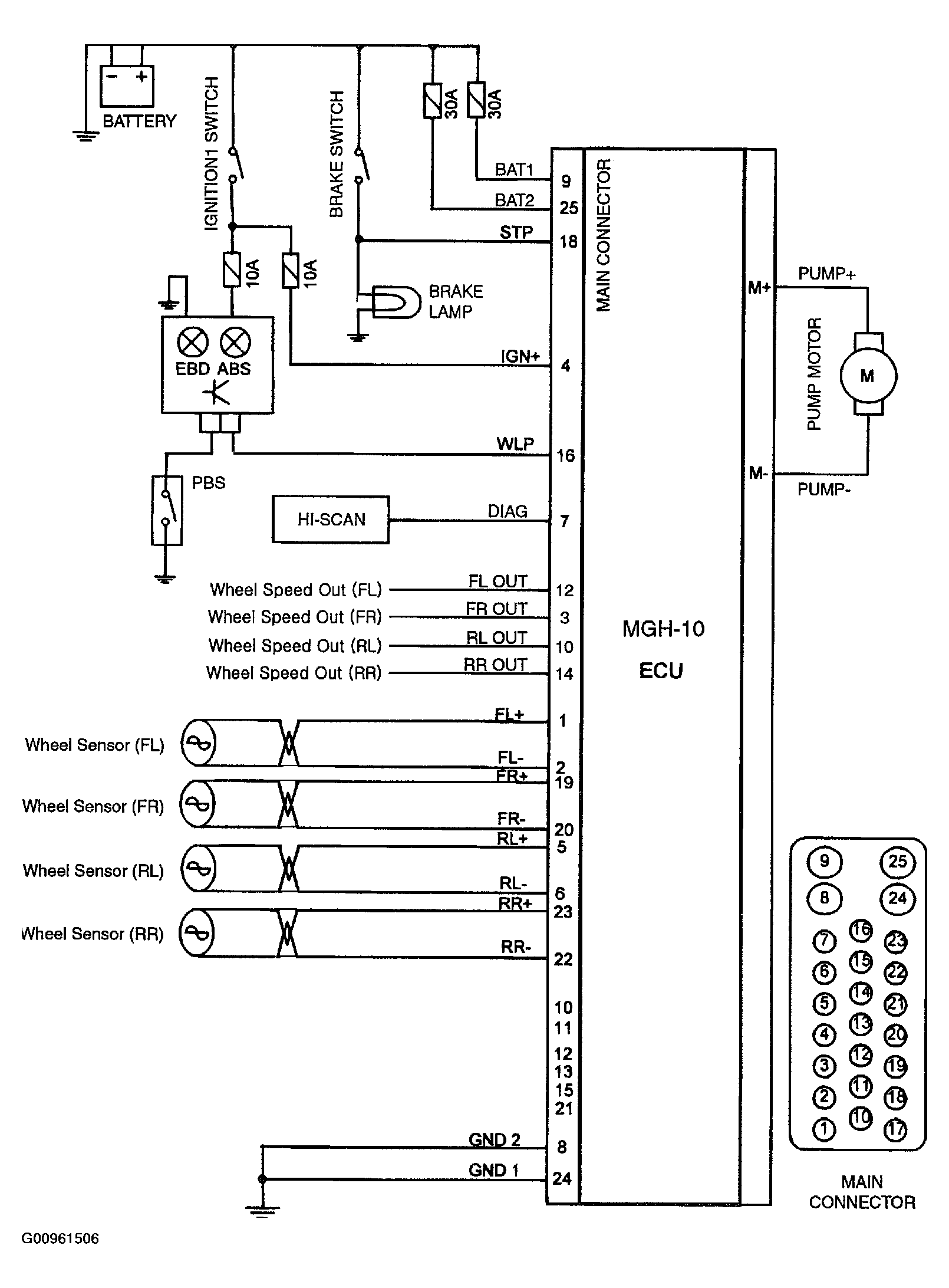

Fig 1: ABS External Wiring Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
