Front Wheel Speed Sensor

  1. Remove the front wheel speed sensor mounting bolt.

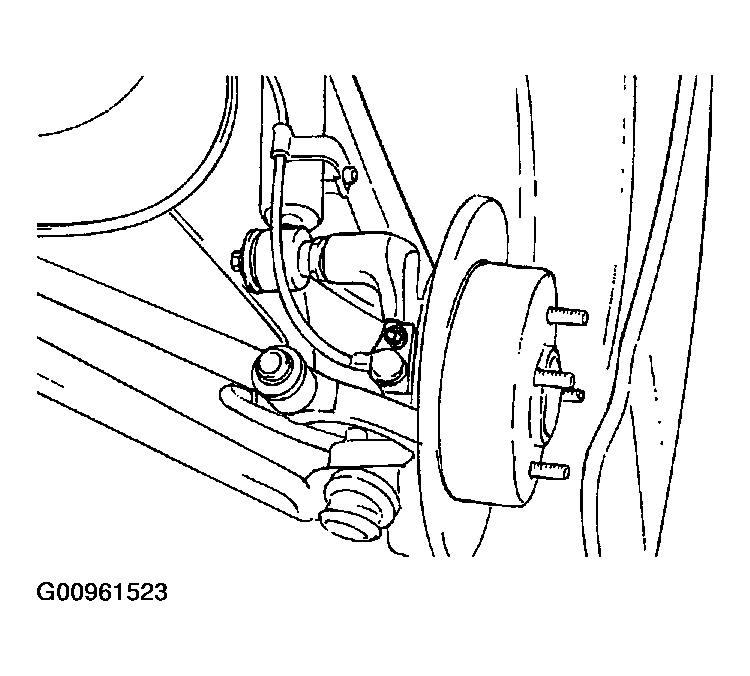

    Fig 1: Identifying Front Wheel Speed Sensor Mounting Bolt
    G00961523Courtesy of HYUNDAI MOTOR CO.
  2. Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector.

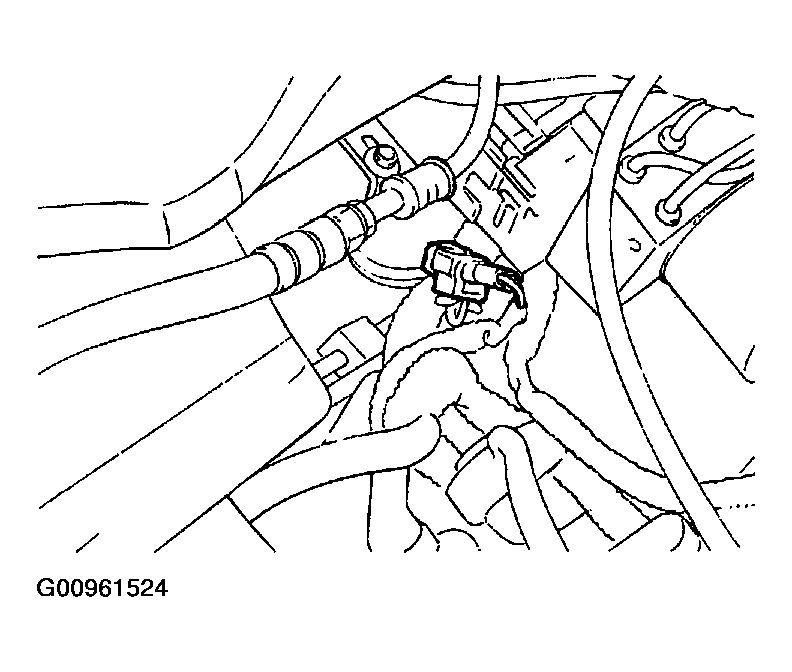

    Fig 2: Removing Front Wheel Speed Sensor
    G00961524Courtesy of HYUNDAI MOTOR CO.
