Inspection Procedure 10

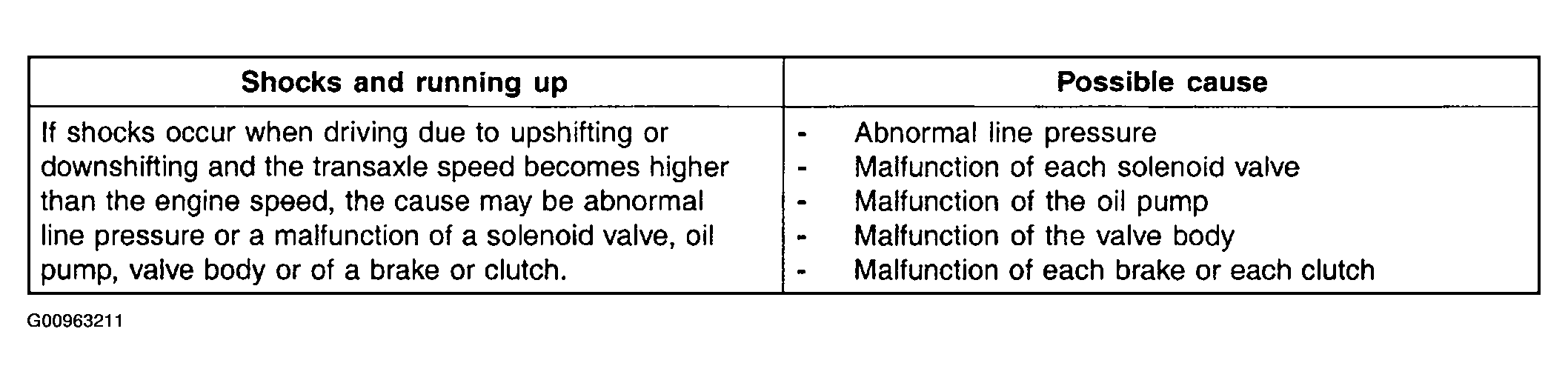

Fig 1: Shocks & Running Up Possible Causes Table
G00963211Courtesy of HYUNDAI MOTOR CO.

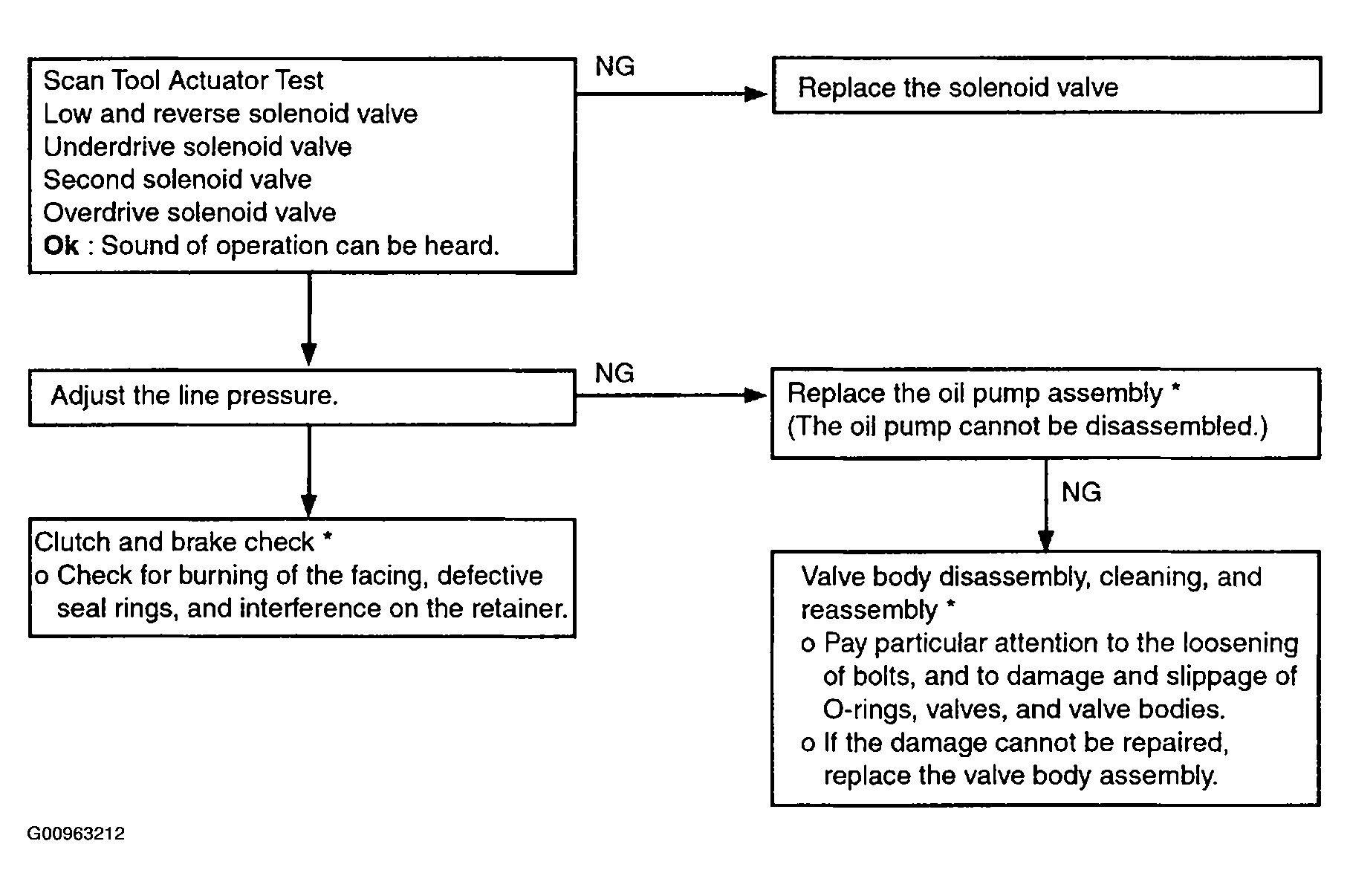

Fig 2: Shocks & Running Up Diagnostic Flow Chart
G00963212Courtesy of HYUNDAI MOTOR CO.
