Using Hi-Scan

To store transmitter code, first connect keyless adapter (09900-21300) to DLC (Data Link Connector) cable of hi-scan as shown in the illustration.

Fig 1: Identifying Keyless Adapter Cable Of Hi-Scan
Courtesy of HYUNDAI MOTOR CO.
After connecting keyless adapter to the multi purpose check connector (10 pins) beside data link connector in driver side crash pad lower panel, turn the power on hi-scan.

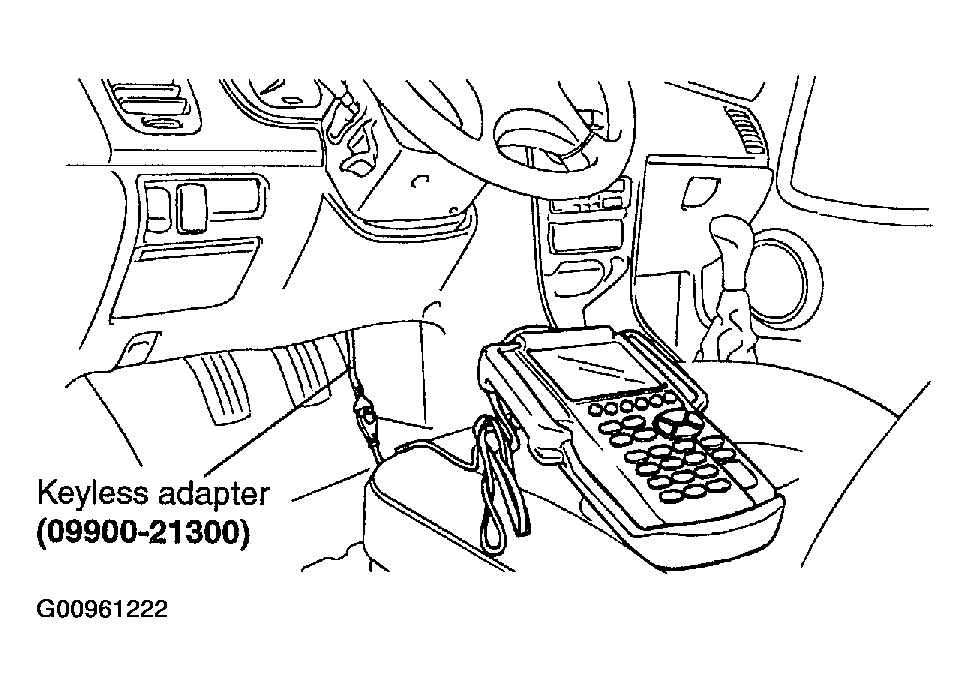

Fig 2: View Of Hi-Scan Hooked Up To Data Link Connector
Courtesy of HYUNDAI MOTOR CO.
Select "02. ELANTRA" in the figure as shown below.

Fig 3: Selecting Vehicle Model Using Hi-Scan
Courtesy of HYUNDAI MOTOR CO.
Select "07. TRANSMITTER CODE SAVING" and press ENTER key.

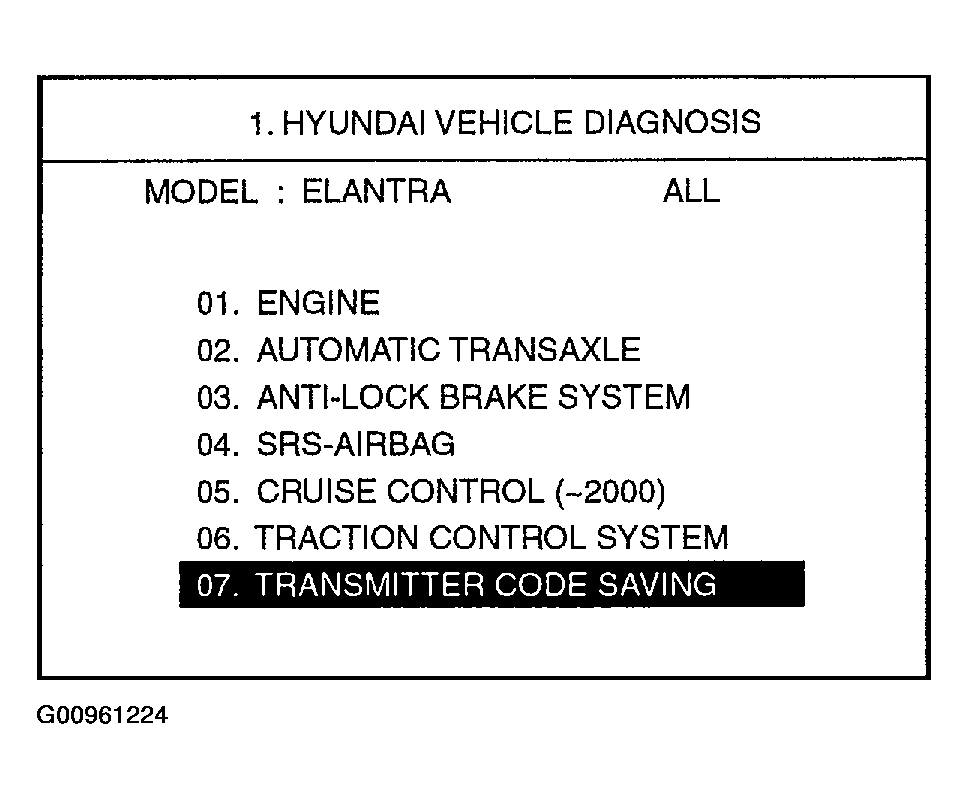

Fig 4: Selecting "07. TRANSMITTER CODE SAVING"
Courtesy of HYUNDAI MOTOR CO.
When pressed, following screen will be displayed, select "01. 2001-" in the figure as shown below.

Fig 5: Selecting "01. 2001-"
Courtesy of HYUNDAI MOTOR CO.
When pressed, the screen will be displayed as shown below.

Fig 6: "KEYLESS ENTRY CODE SAVING" Selecting Screen
Courtesy of HYUNDAI MOTOR CO.
After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving.

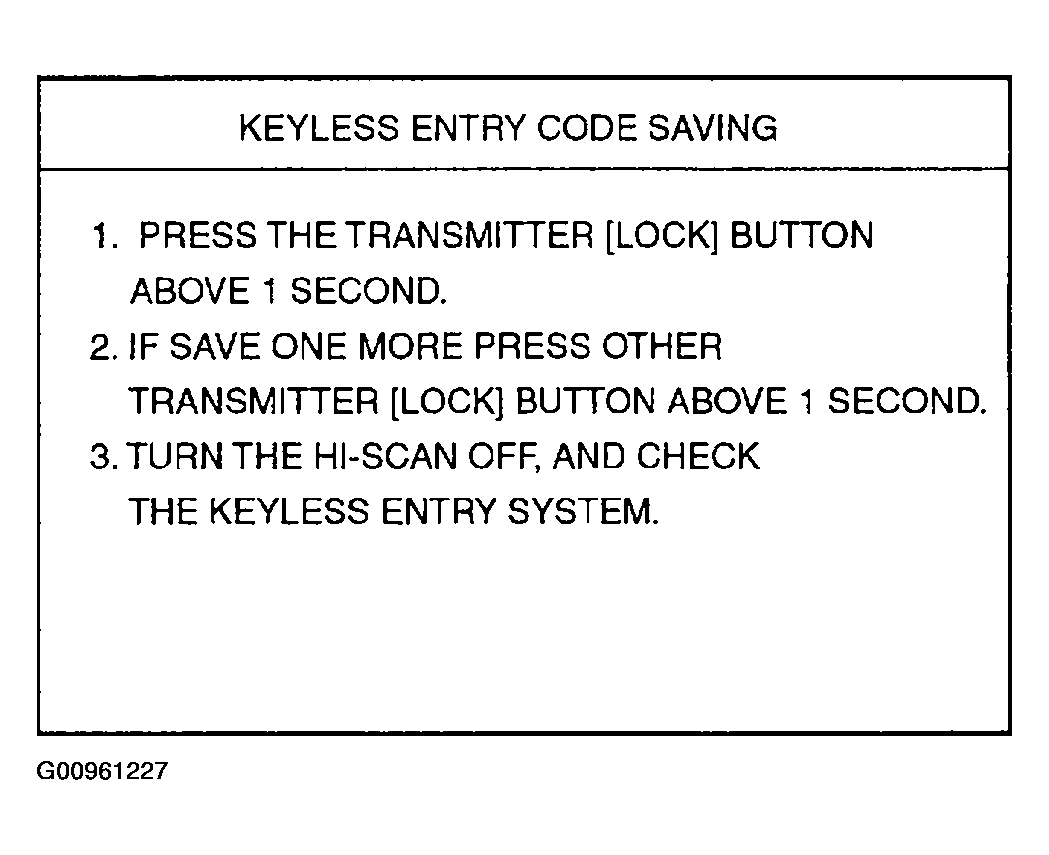

Fig 7: Keyless Entry Code Saving Procedure Screen
Courtesy of HYUNDAI MOTOR CO.
Follow steps 1 to 3 and then code saving is completed.
Disconnect keyless adapter (09900-21300) from DLC cable and then proceed to self-diagnosis with DLC cable connected.
