Power Window Main Switch

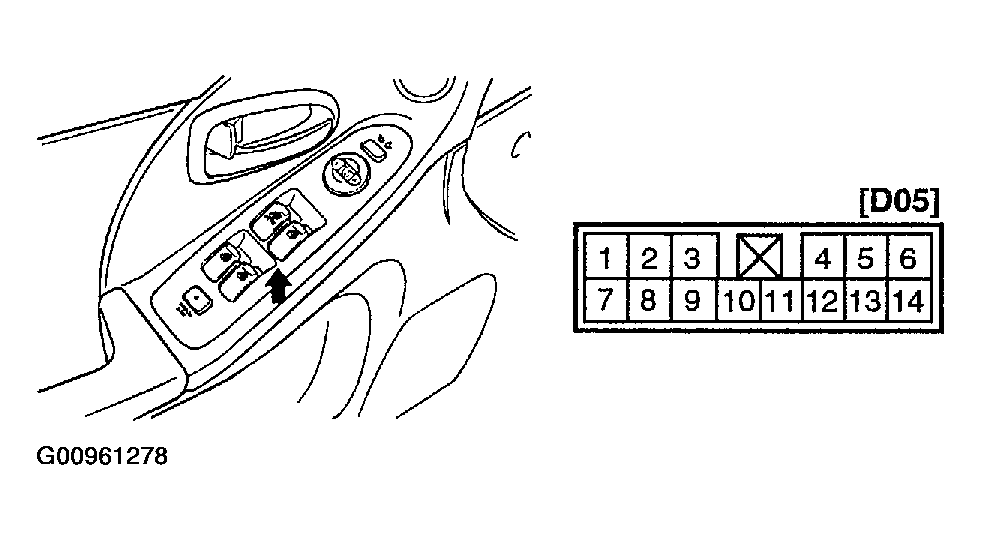

Fig 1: Identifying Power Window Main Switch Connector Terminals
G00961278Courtesy of HYUNDAI MOTOR CO.

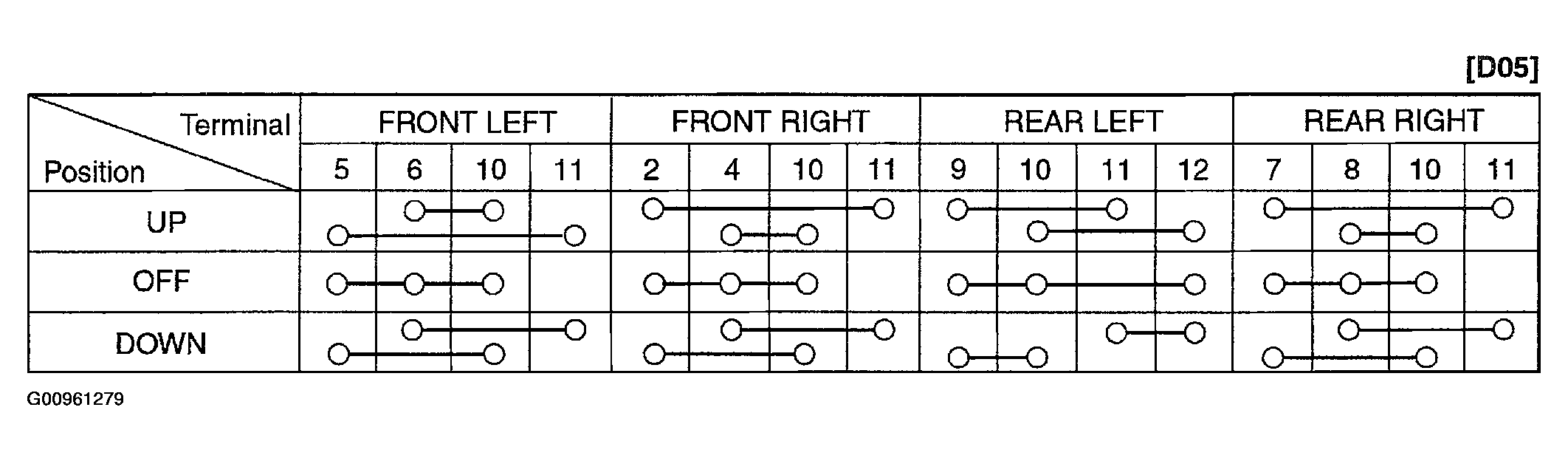

Fig 2: Power Window Main Switch Continuity Table
G00961279Courtesy of HYUNDAI MOTOR CO.
