Front Door Module Assembly

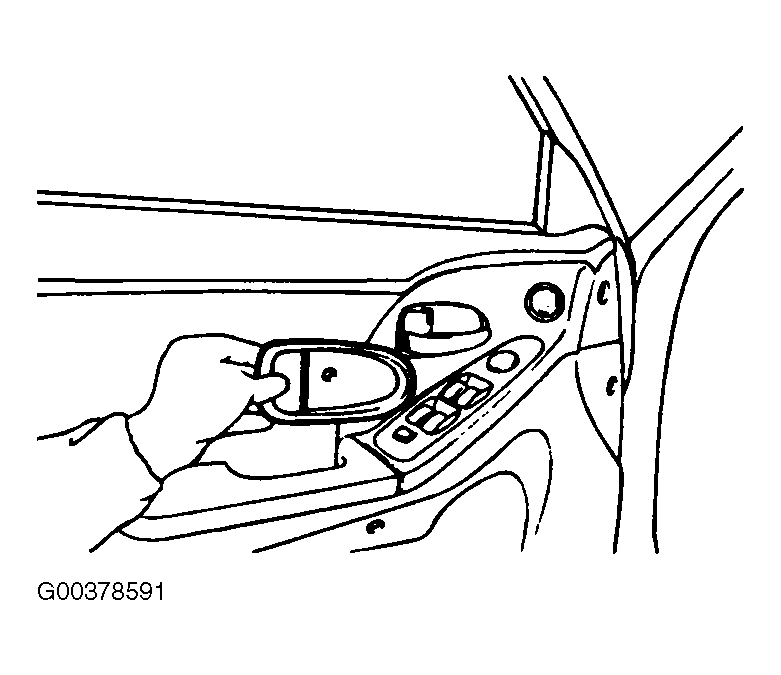

Remove the screw holding the inside door handle trim.

Fig 1: Removing Inside Door Handle Trim
Courtesy of HYUNDAI MOTOR CO.
Remove the screws holding the door trim panel.

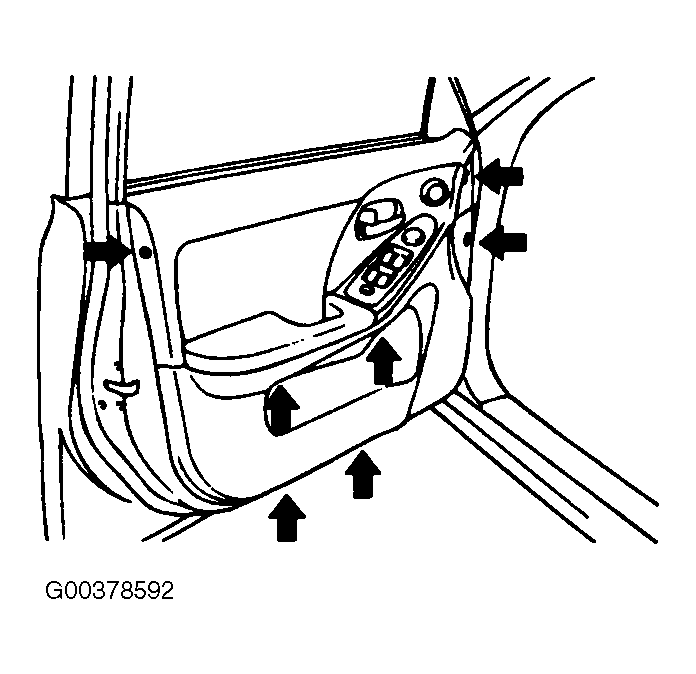

Fig 2: Identifying Door Trim Panel Screws
Courtesy of HYUNDAI MOTOR CO.

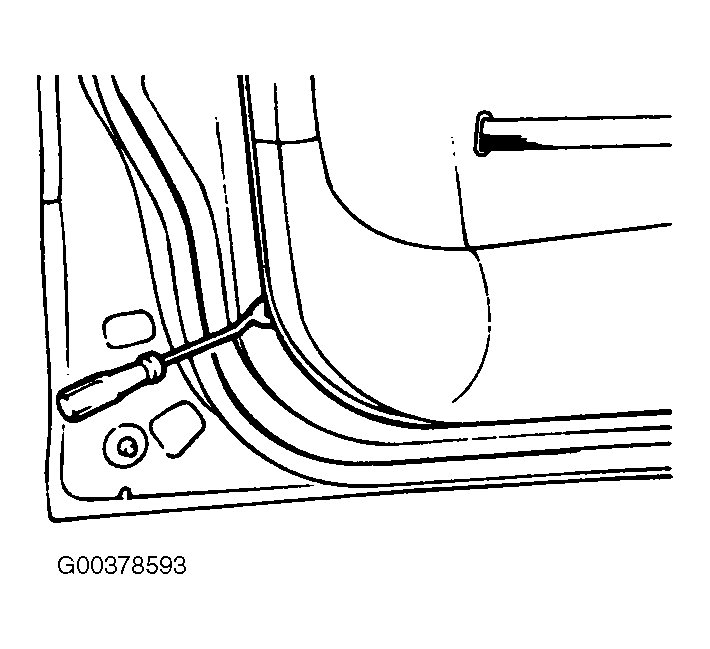

Insert a trim panel remover between the trim fasteners and the door trim panel to pry off. Disconnect the wire connectors from the front door.

Fig 3: Prying Off Trim Door Trim Panel
Courtesy of HYUNDAI MOTOR CO.

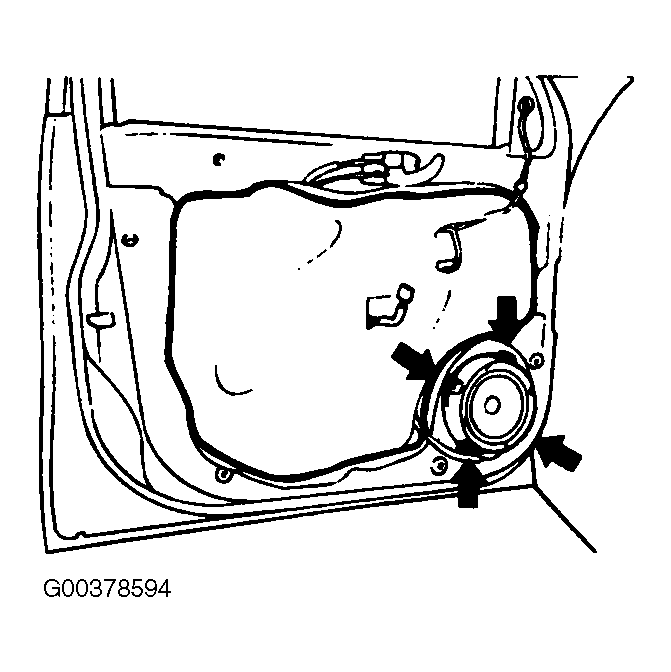

Remove the front speaker and the door vapor barrier.

Fig 4: Identifying Front Door Speaker
Courtesy of HYUNDAI MOTOR CO.
Roll the door glass down and then remove the bolts holding the front door glass.

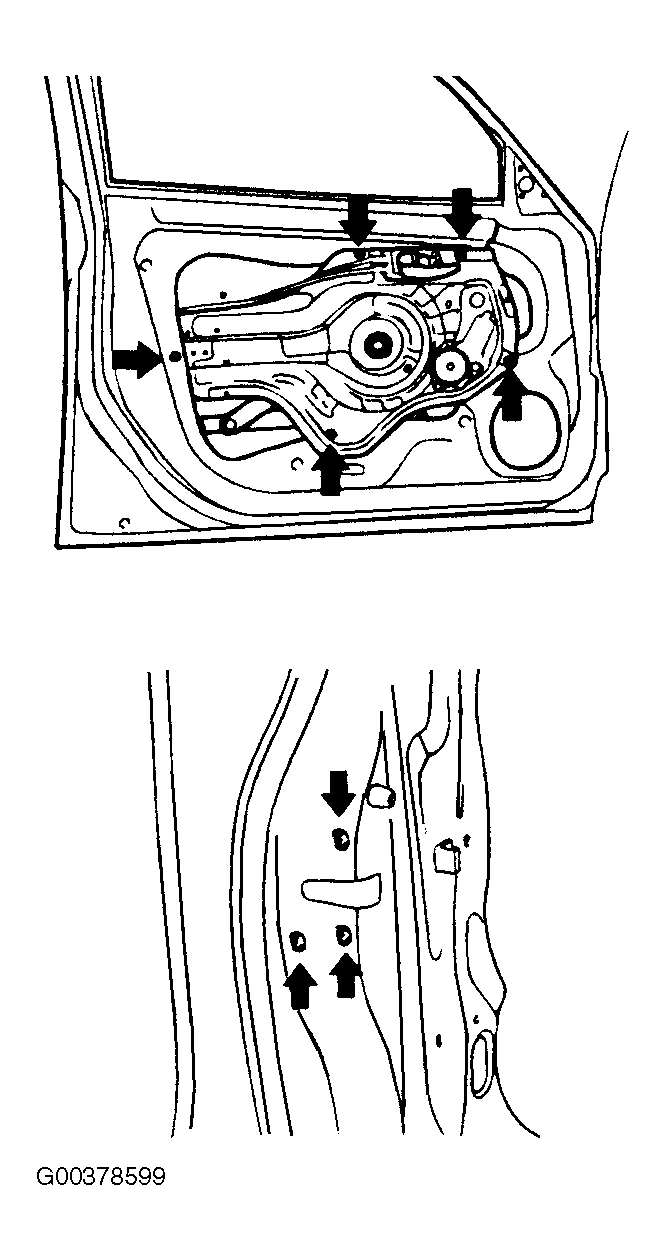

Fig 5: Accessing Front Door Glass Bolts
Courtesy of HYUNDAI MOTOR CO.

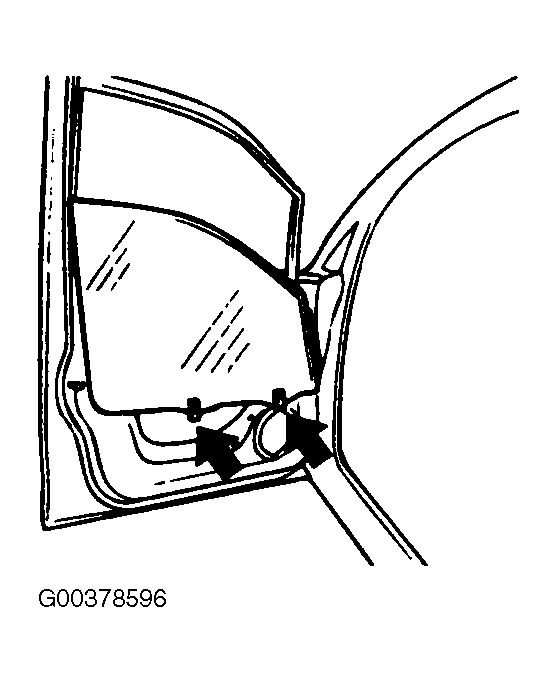

Remove the front door glass from the front door module.

Fig 6: Removing Front Door Glass
Courtesy of HYUNDAI MOTOR CO.
Remove the front door window glass run.

Fig 7: Removing Front Door Glass Run
Courtesy of HYUNDAI MOTOR CO.

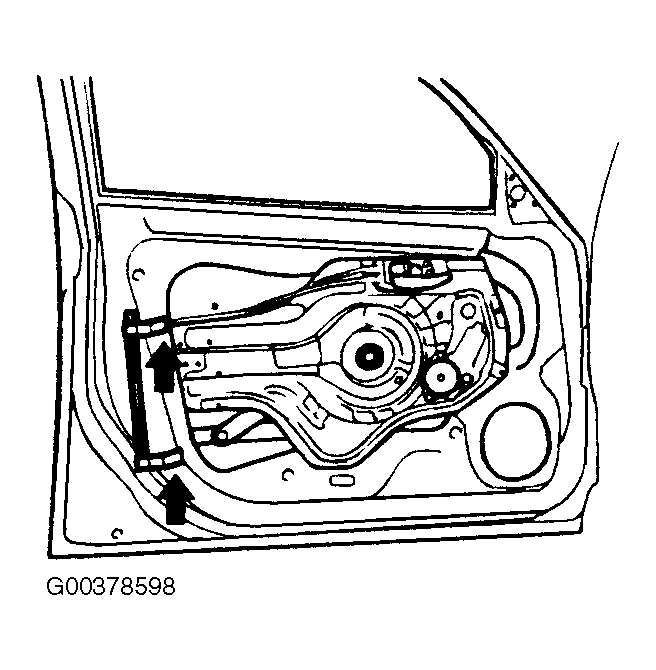

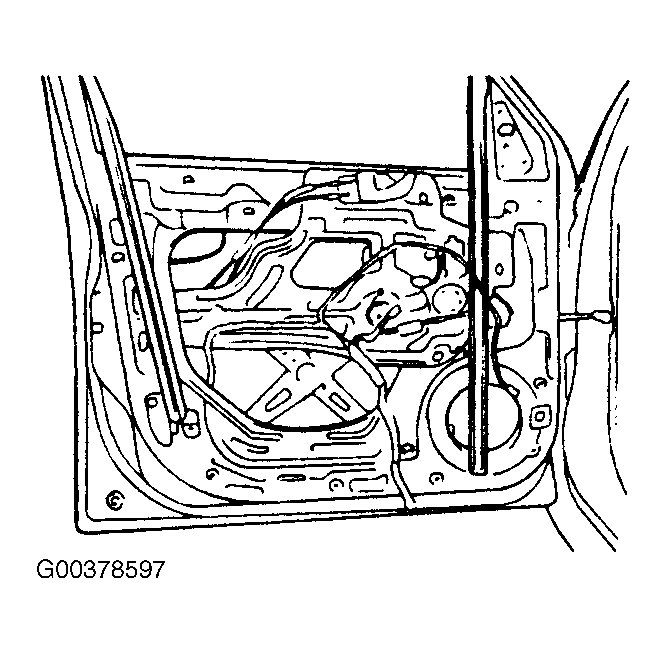

Remove the rear channel from the front door.

Fig 8: Removing Front Door Glass Rear Channel
Courtesy of HYUNDAI MOTOR CO.

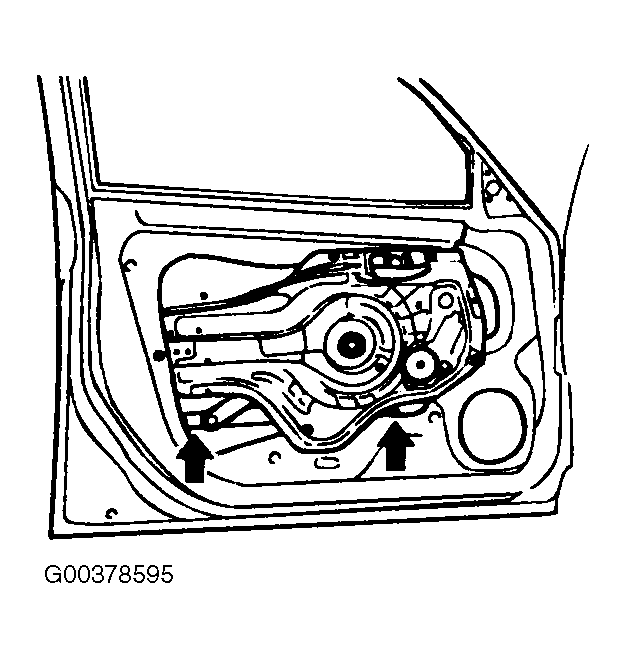

Remove the bolts holding the outside handle, the latch, and the door lock actuator. Disconnect the connectors from the front door module.

Fig 9: Removing Latch, Outside Handle & Door Lock Actuator
Courtesy of HYUNDAI MOTOR CO.

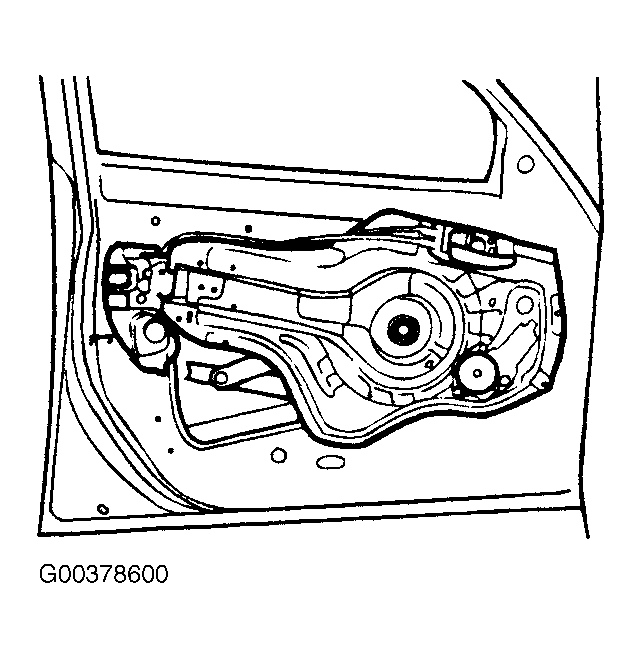

Remove the front door module.

Fig 10: Removing Front Door Module
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal. When installing the door vapor barrier, butyl tape should not be placed to block the door trim fastener holes.
