External Wiring Diagram (TCS)

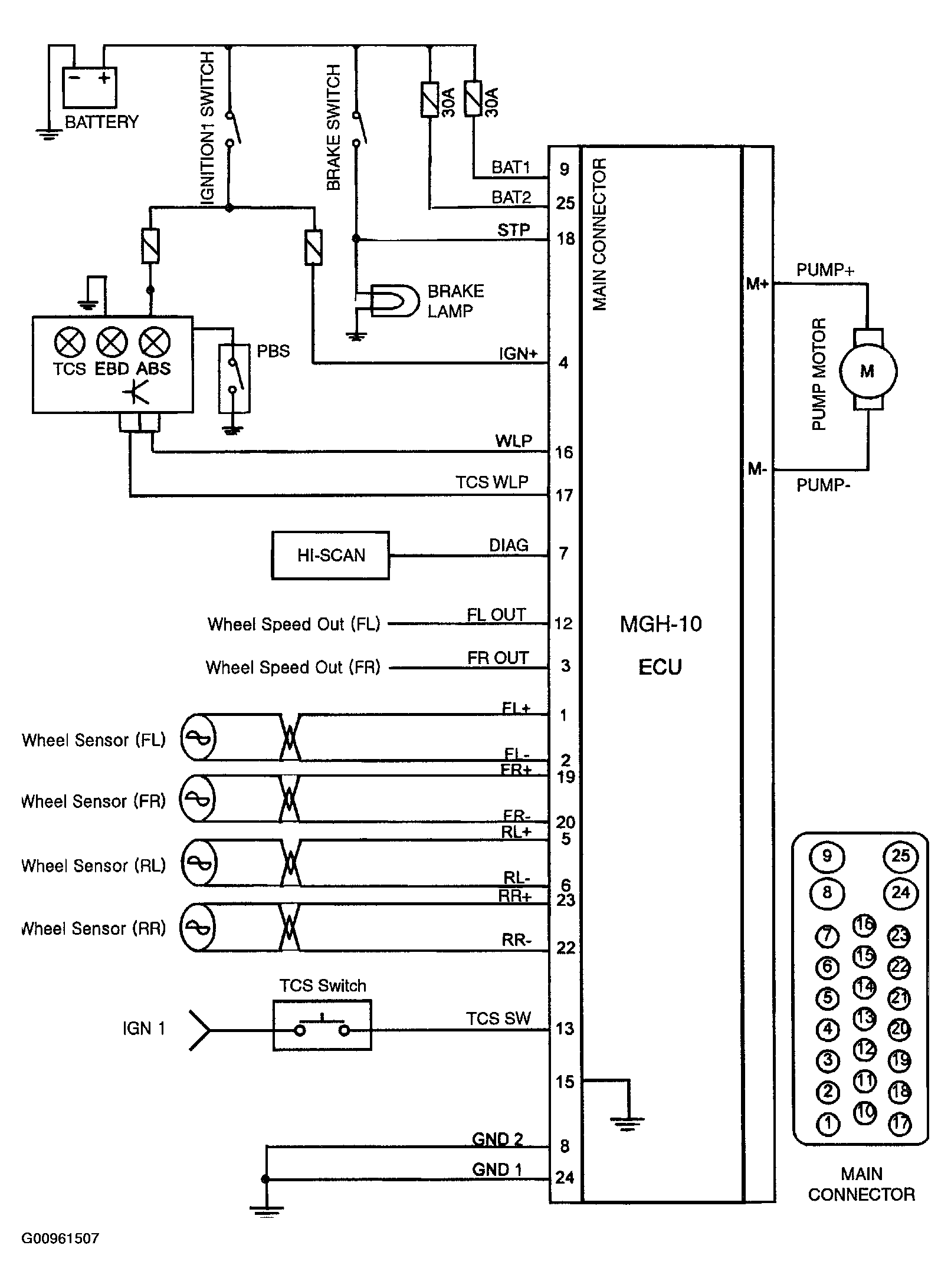

Fig 1: TCS External Wiring Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
