Fuse Block

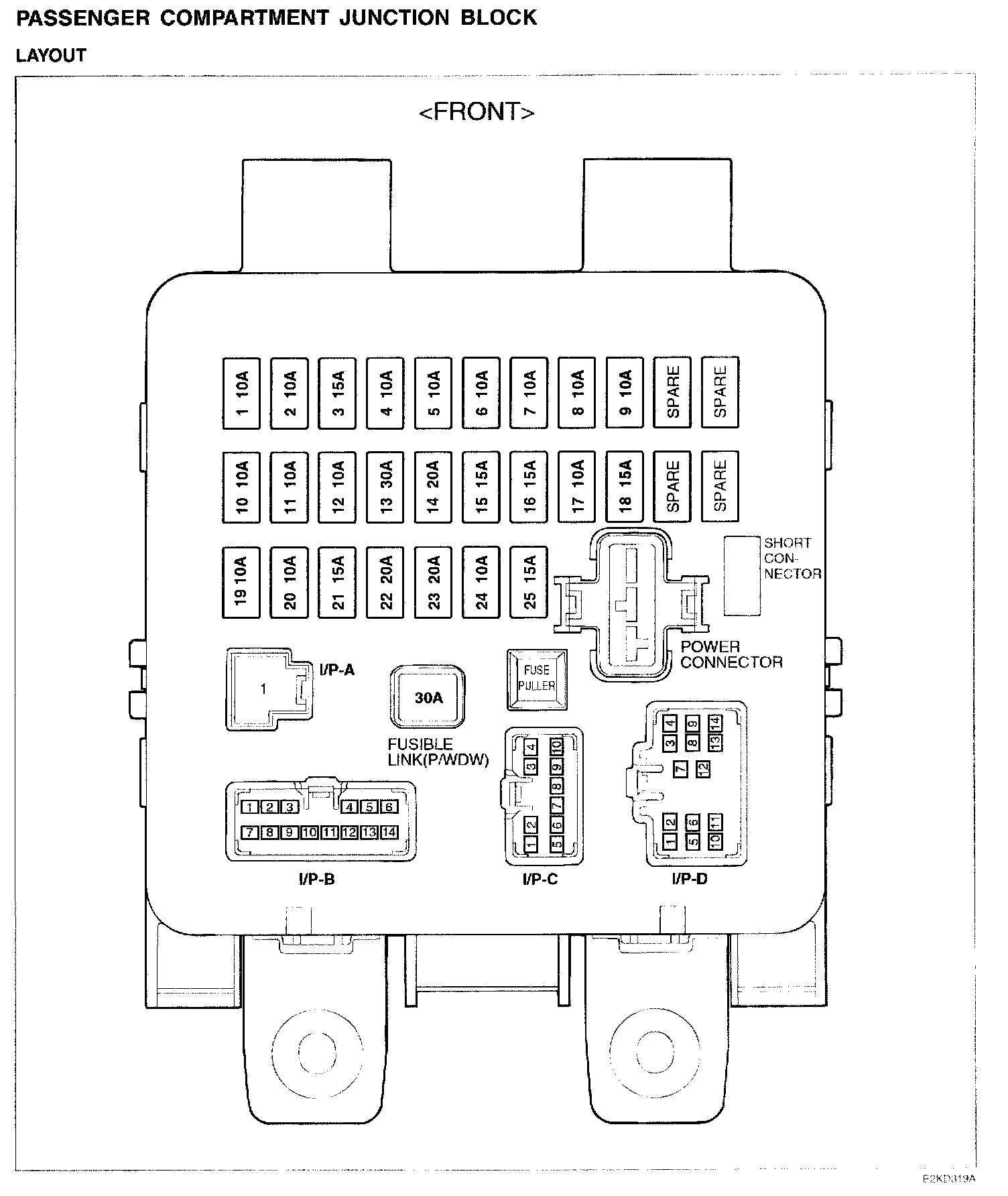

Passenger Compartment Junction Block Layout:

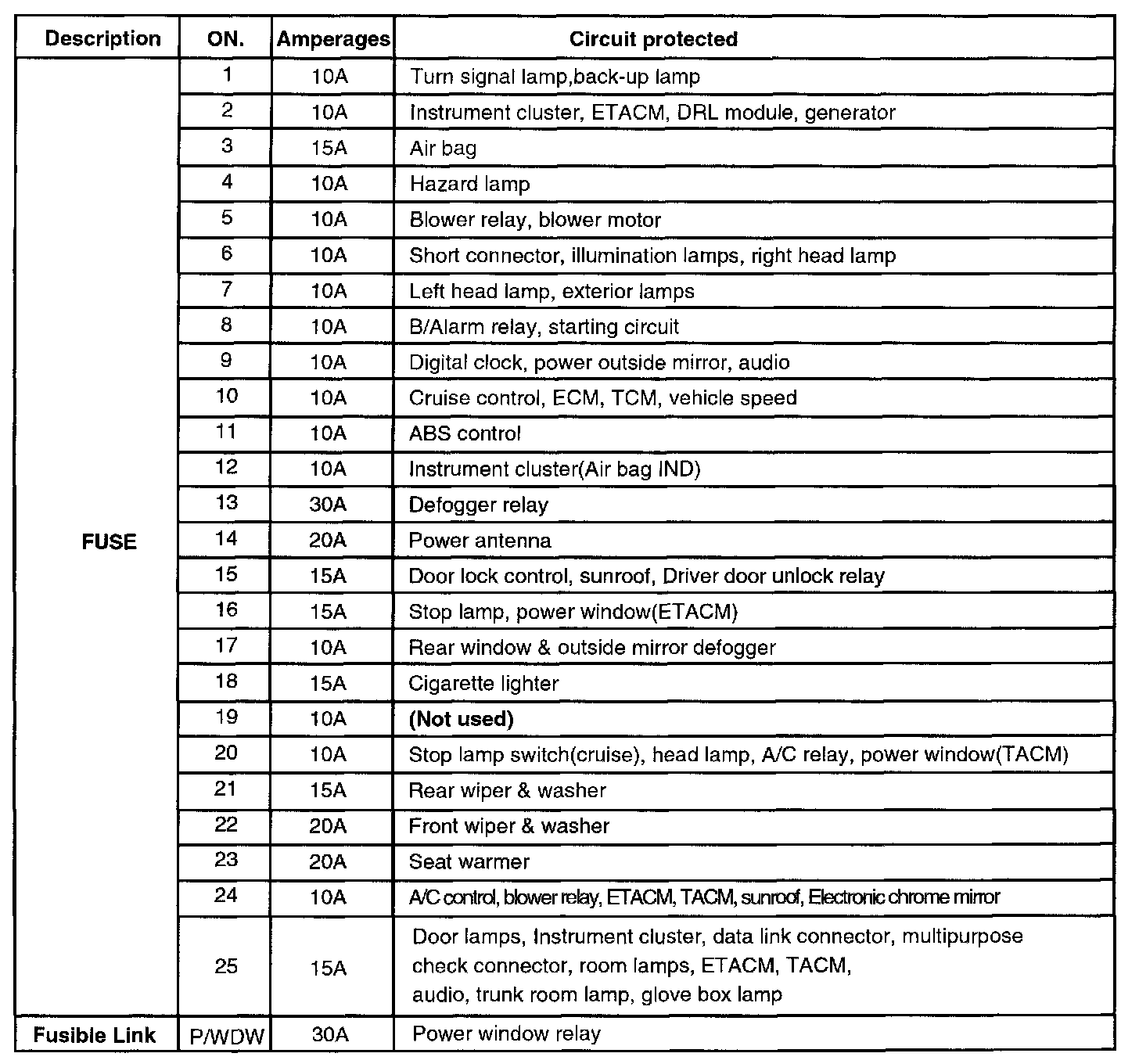

Passenger Compartment Junction Block Circuit Details:

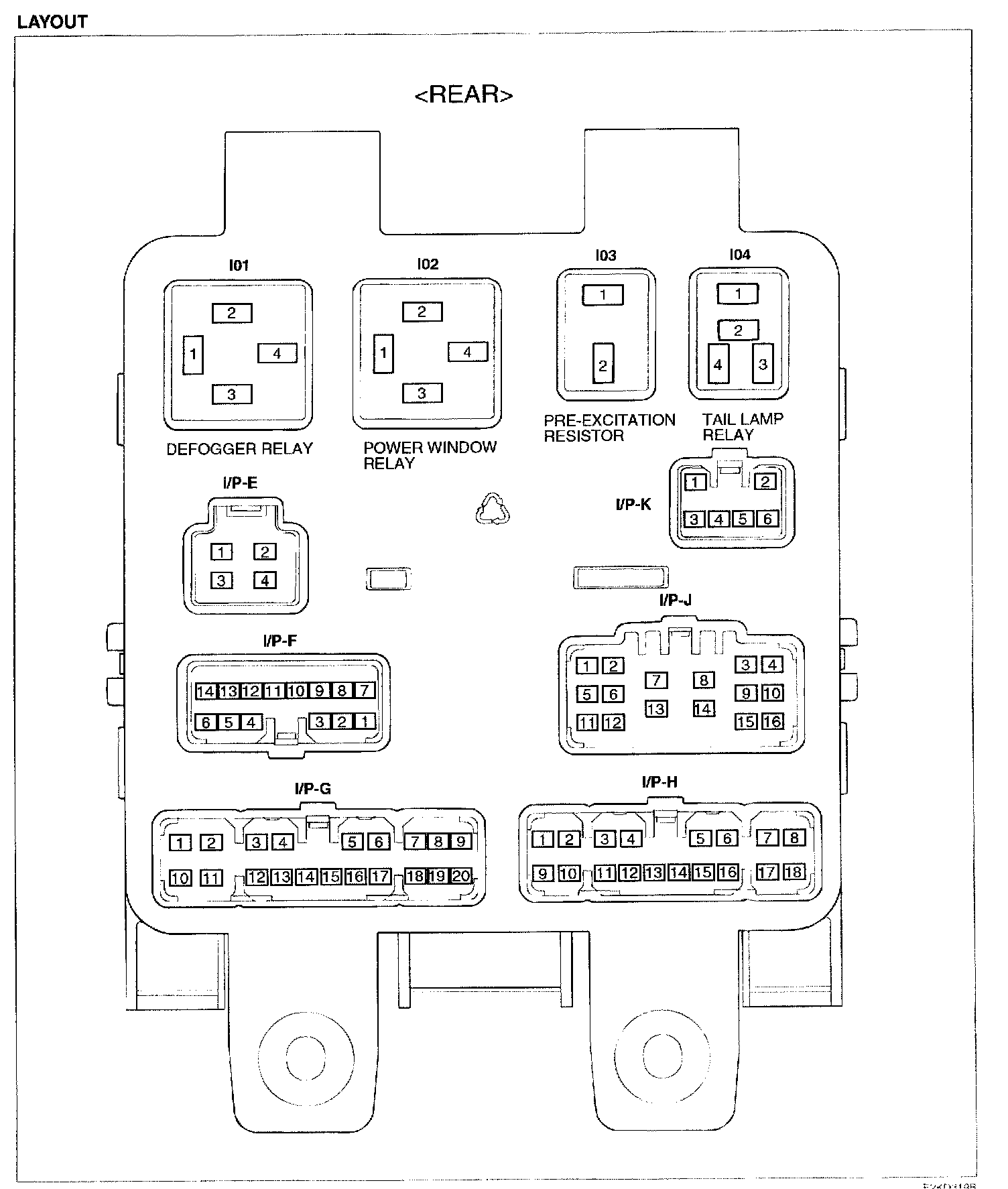

Passenger Compartment Junction Block Layout:

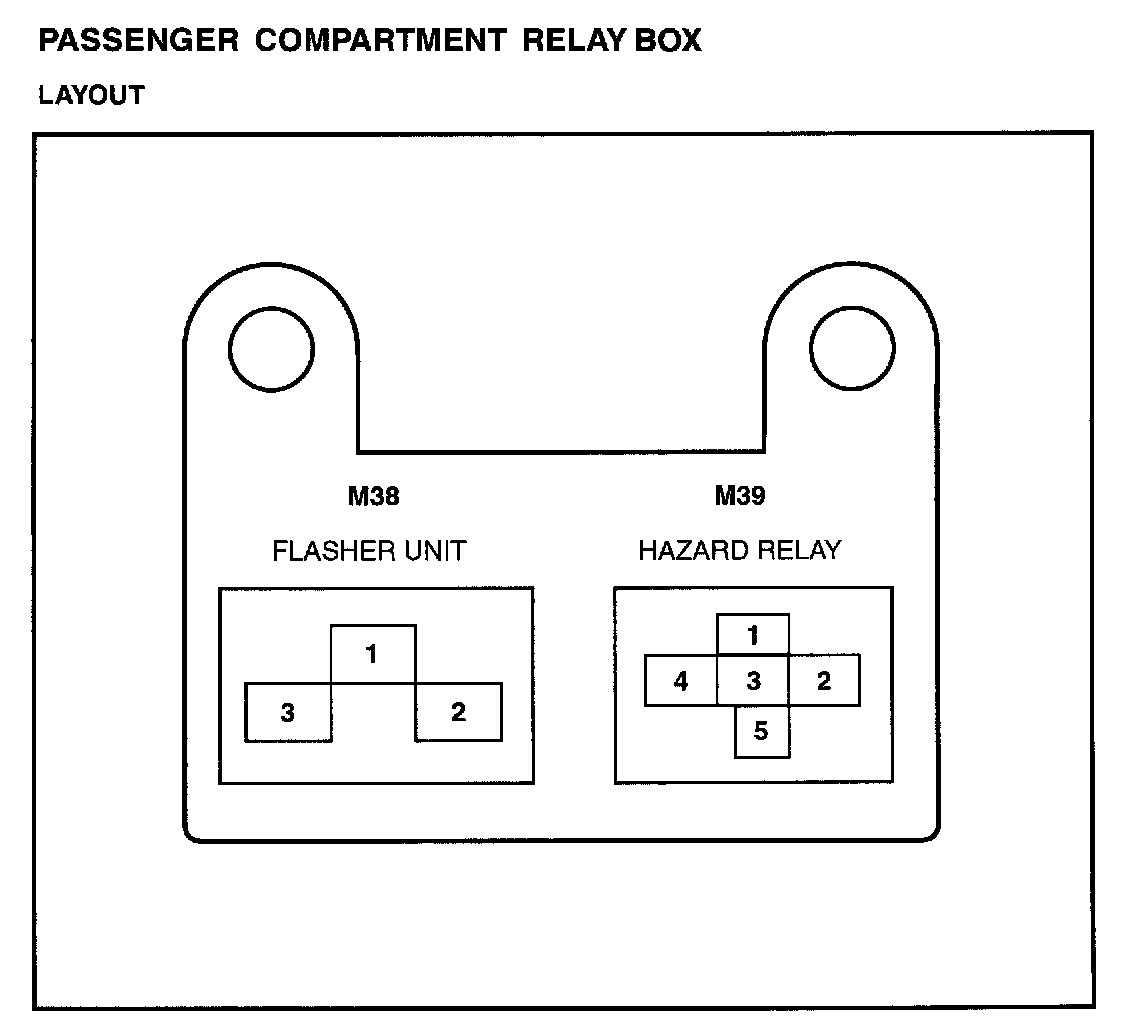

Passenger Compartment Relay Box Layout:
