Fuse Block: Service and Repair

REMOVAL

1. Disconnect the negative (-) battery terminal.

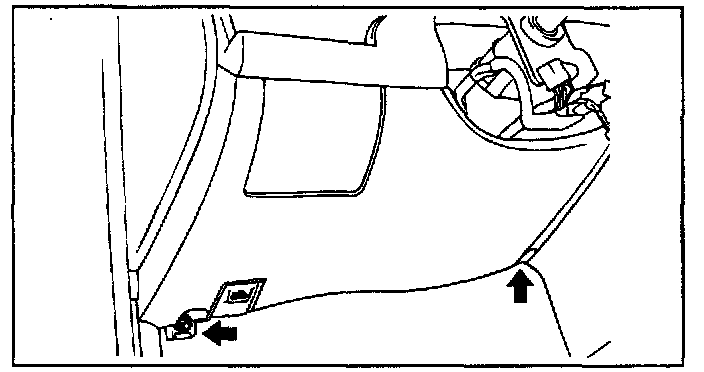

2. Remove the bolts holding the lower crash pad panel.

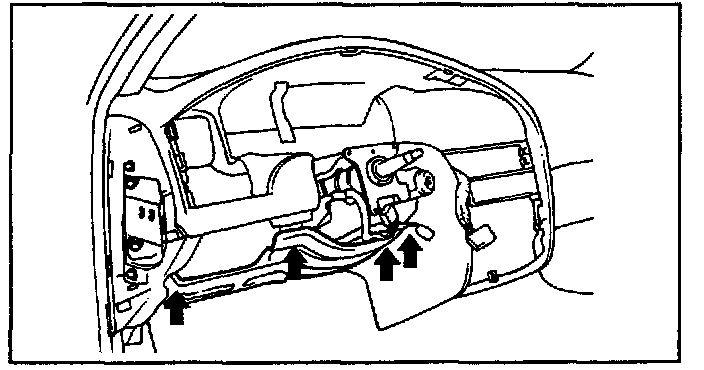

3. Remove the screws holding the lower crash pad panel and remove it.

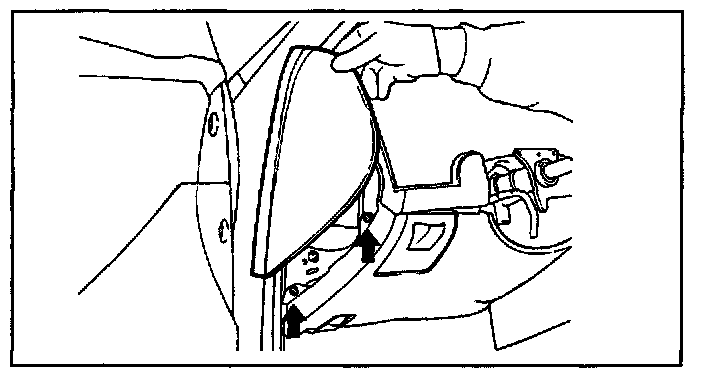

4. Remove the bracket holding the lower crash pad panel.
5. Disconnect the connectors from the fuse box.
