System Specifications





SPECIFICATIONS

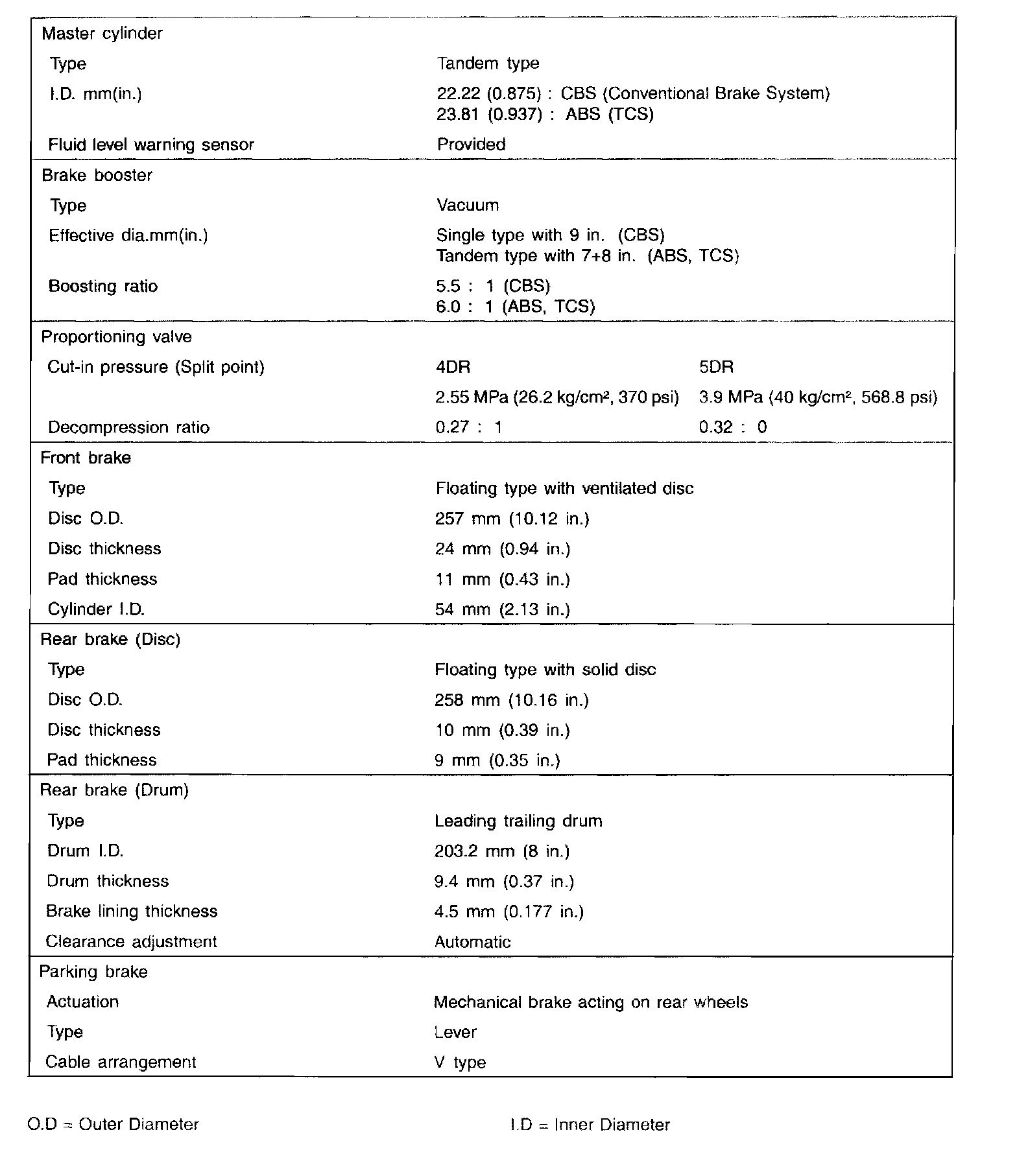

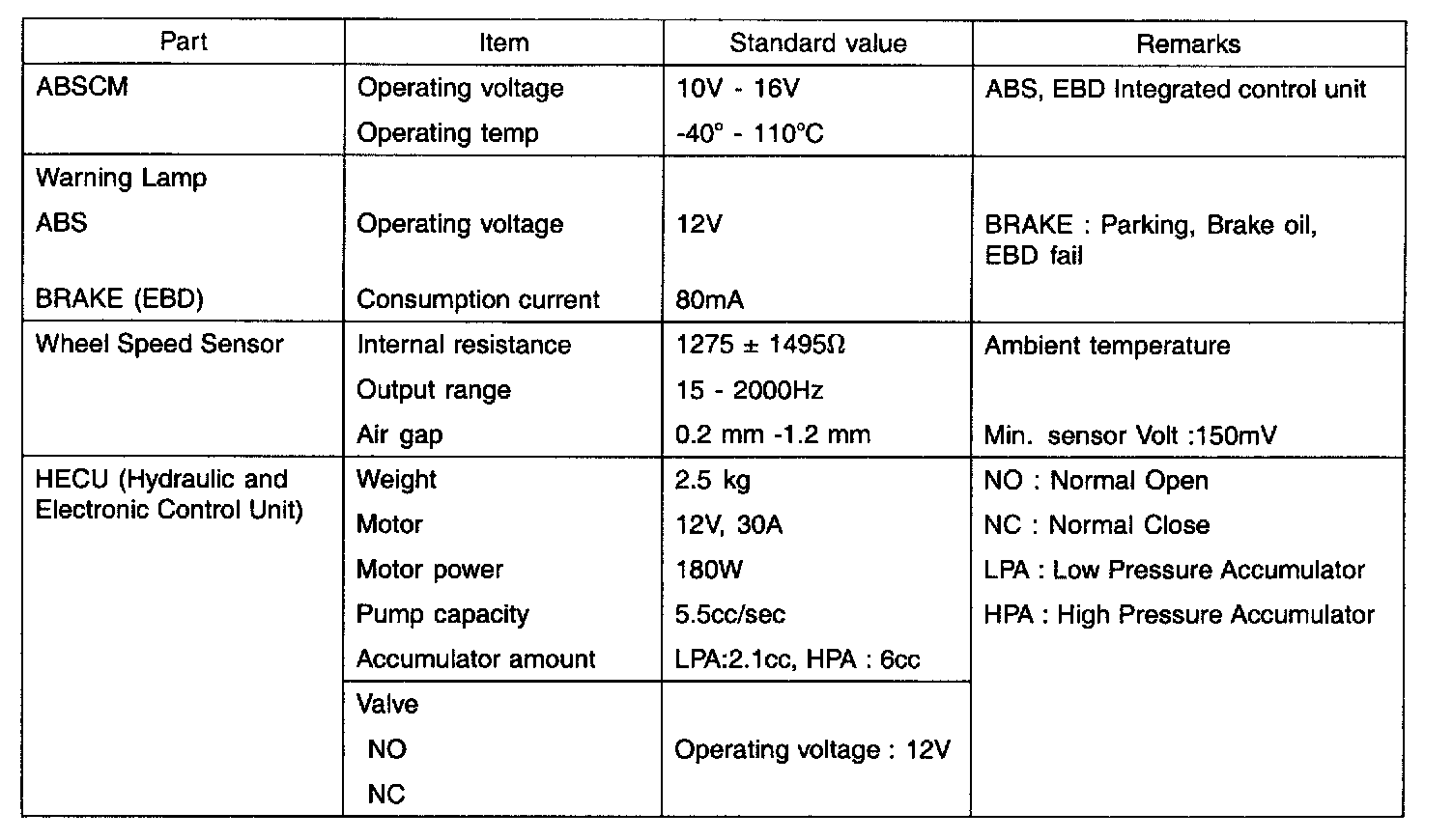

SPECIFICATION (ABS)

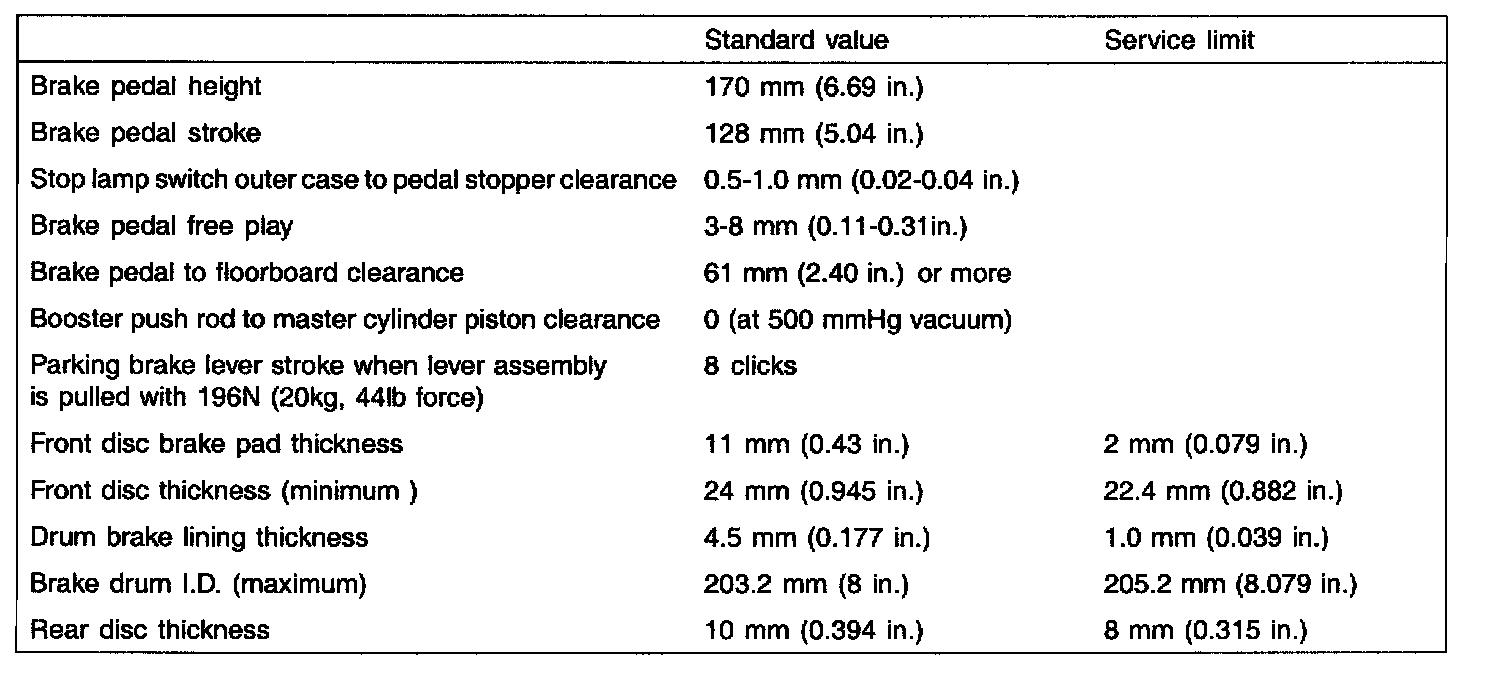

SERVICE STANDARD

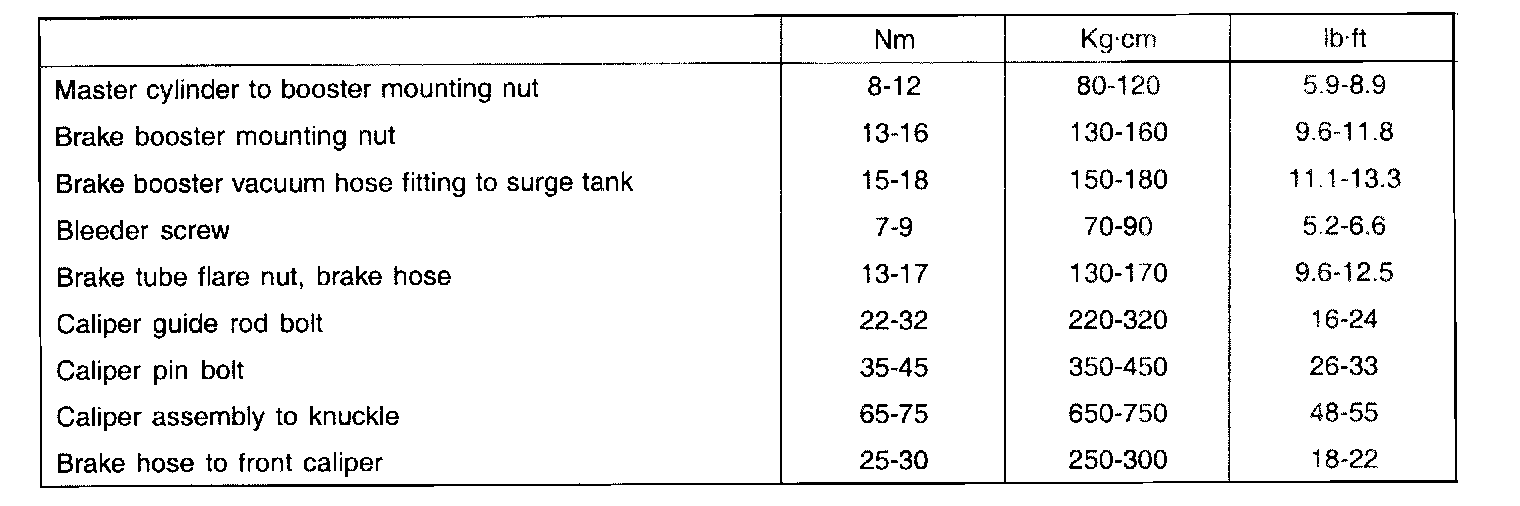

TIGHTENING TORQUE

CAUTION: Replace self-locking nuts with new ones after removal.

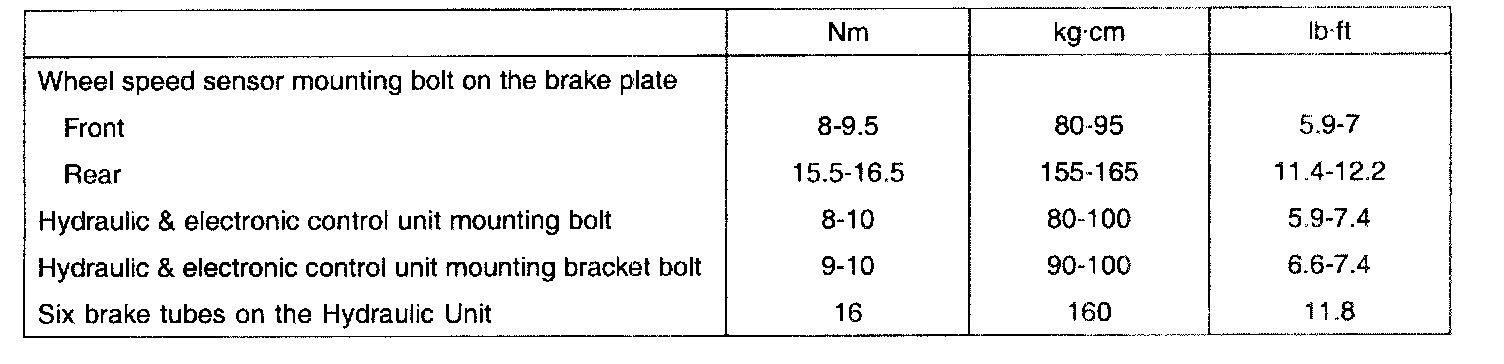

TIGHTENING TORQUE (ABS)
