Coupling Assembly: Removal

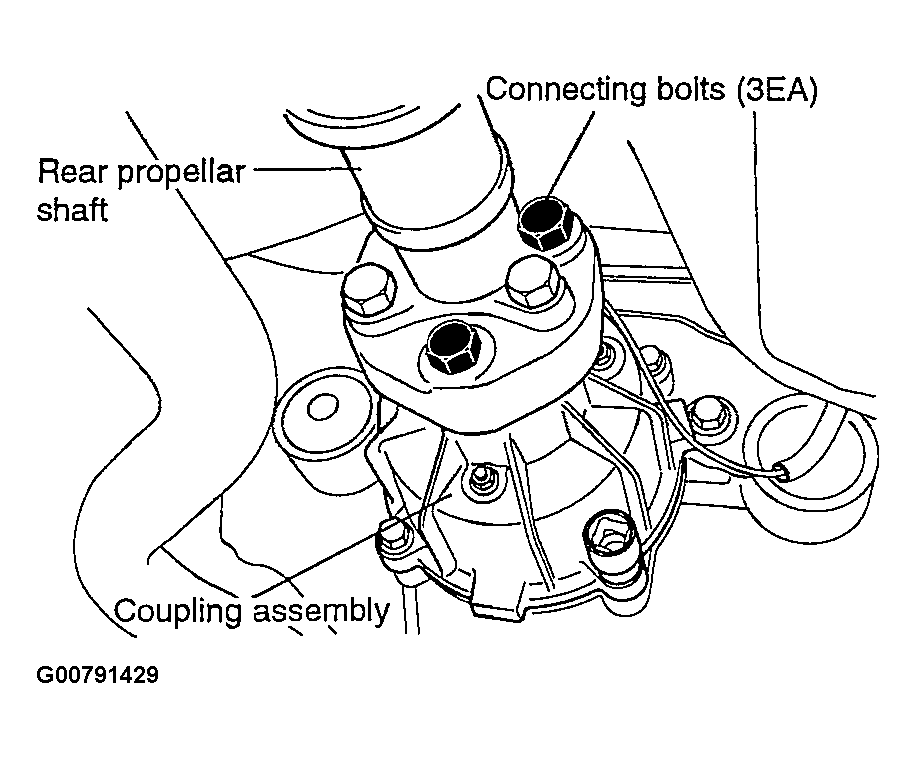

Remove the 4WD coupling bolts (3EA) mounted to the rear propeller shaft.

Fig 1: Identifying Propeller Shaft Bolts
Courtesy of HYUNDAI MOTOR CO.

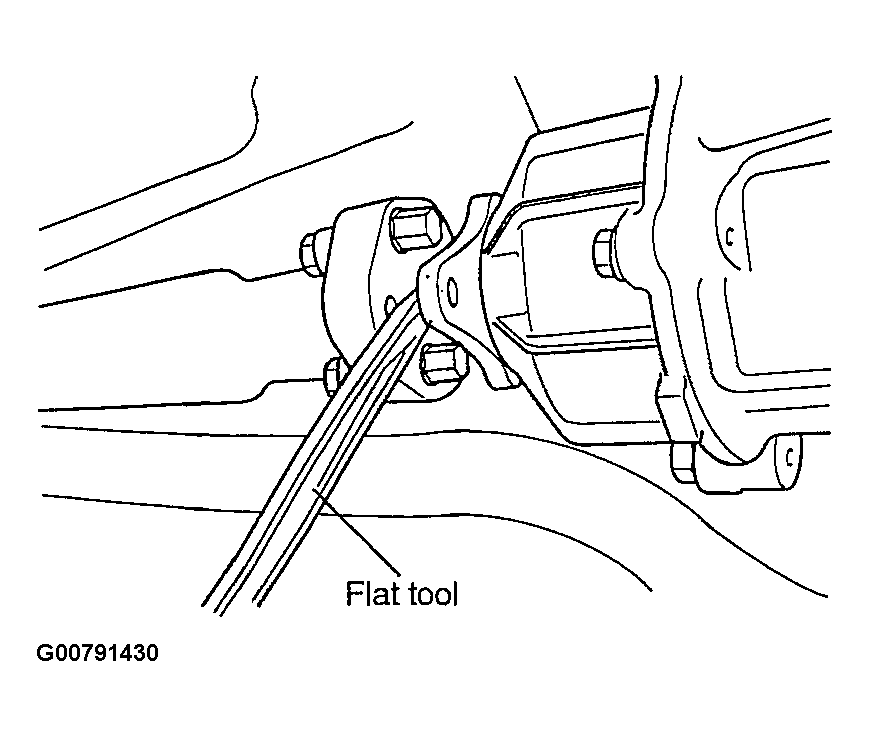

Using a flat tool, separate the propeller shaft from 4WD coupling.

Fig 2: Separating Propeller Shaft From 4WD Coupling
Courtesy of HYUNDAI MOTOR CO.

Fig 3: Identifying Propeller Shaft & Coupling
Courtesy of HYUNDAI MOTOR CO.

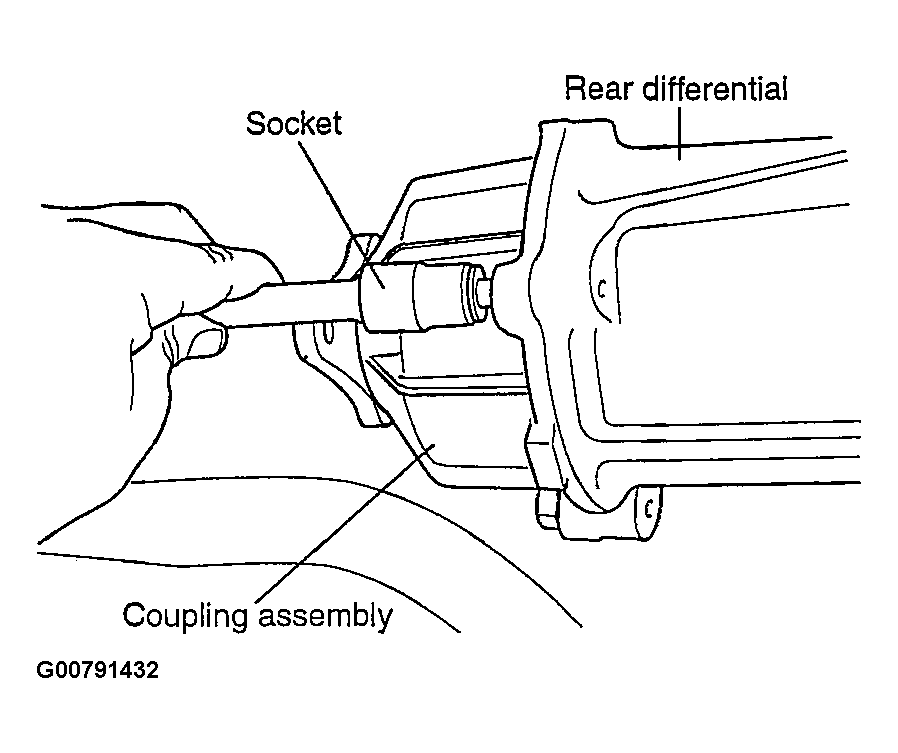

Remove the rear axle (Differential carrier) bolts mounted to the 4WD coupling.

Fig 4: Removing Rear Axle (Differential Carrier) Bolts
Courtesy of HYUNDAI MOTOR CO.

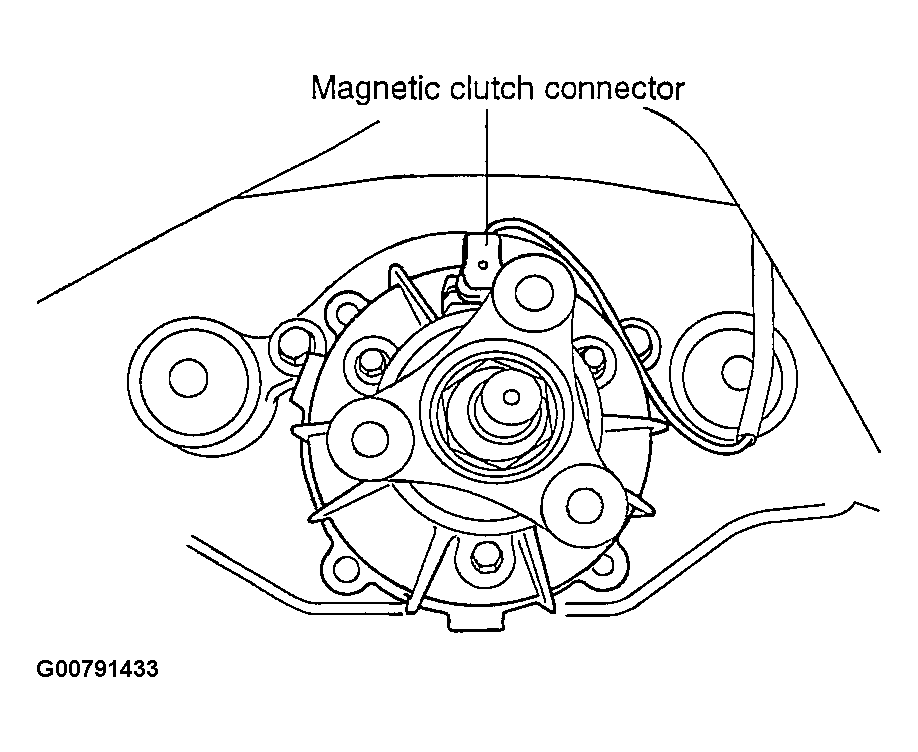

Remove the electric magnetic clutch connector.

Fig 5: Identifying Electric Magnetic Clutch Connector
Courtesy of HYUNDAI MOTOR CO.

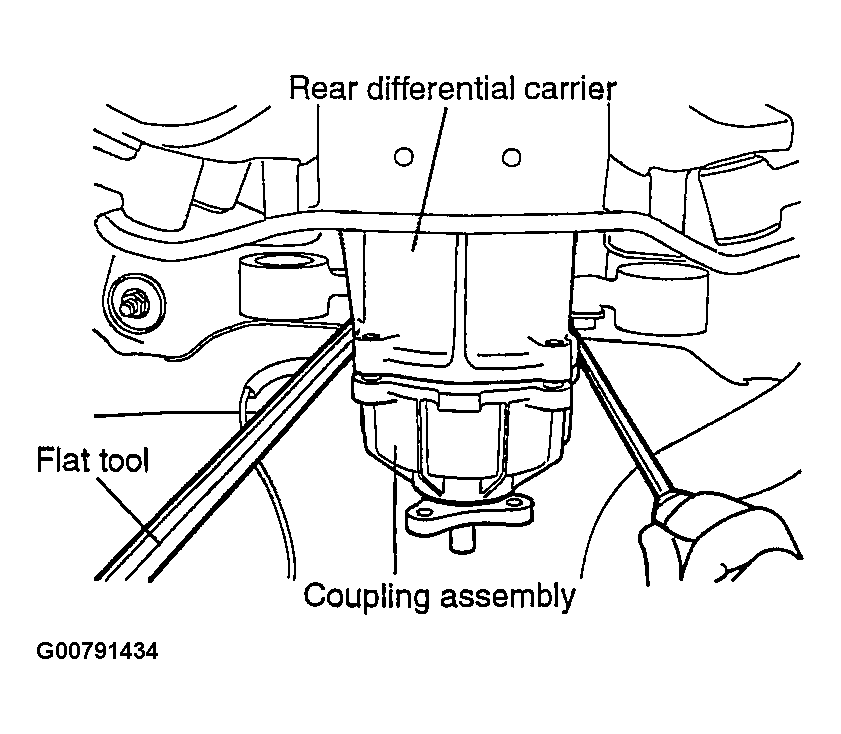

Using a flat tool, separate the 4WD coupling assembly from the rear differential carrier.

Fig 6: Separating 4WD Coupling Assembly From Rear Differential Carrier
Courtesy of HYUNDAI MOTOR CO.

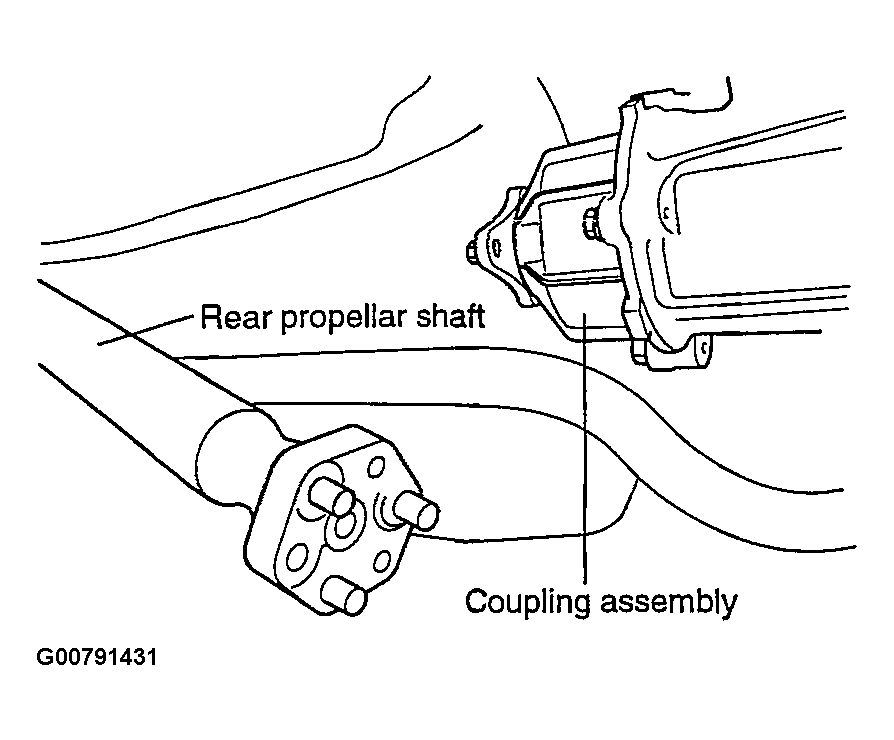

Remove the 4WD coupling assembly.

Fig 7: Removing 4WD Coupling Assembly

Courtesy of HYUNDAI MOTOR CO.
