Ignition Switch: Troubleshooting

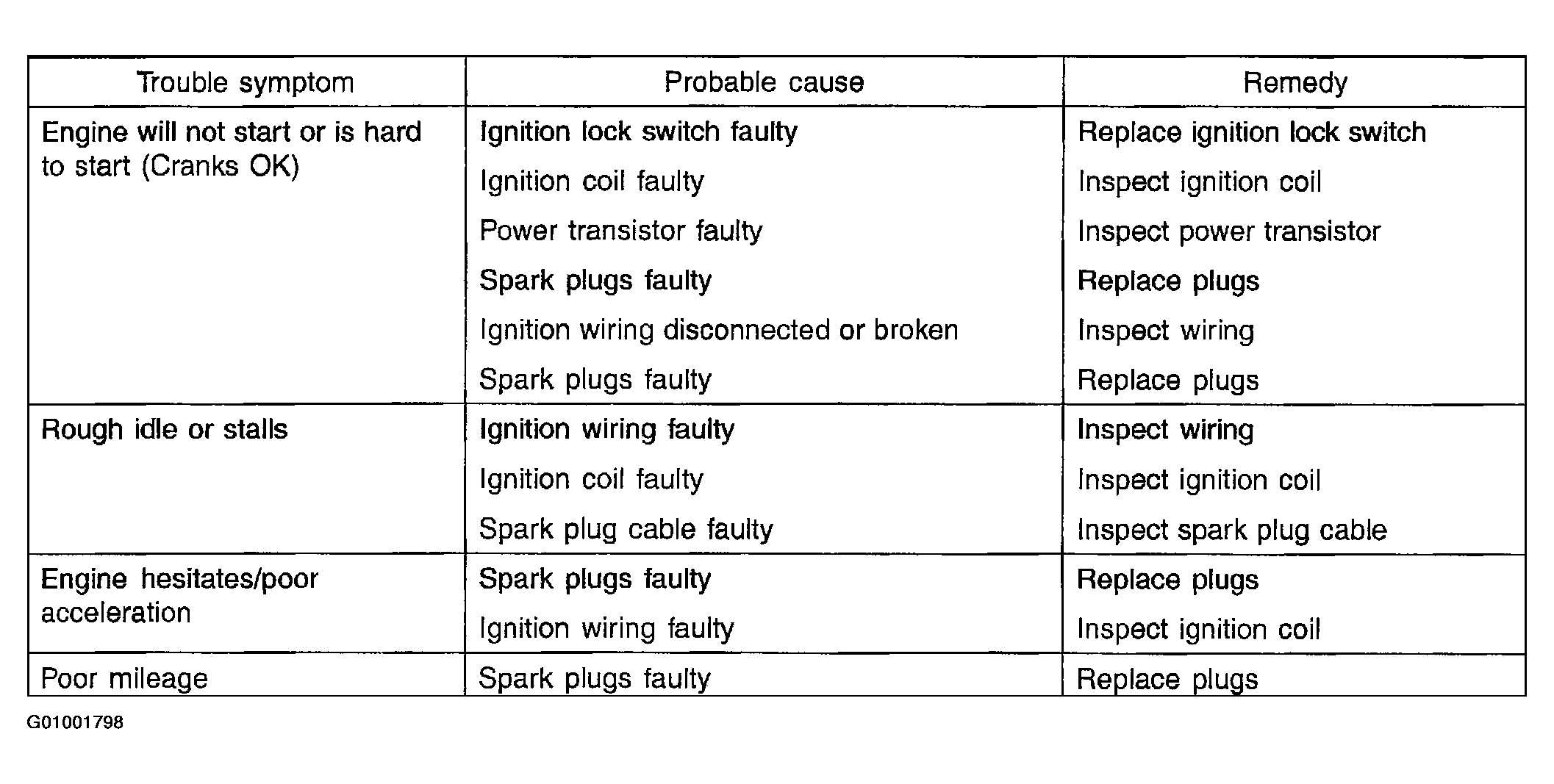

Fig 1: Troubleshooting Symptom Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
