Transaxle Range (TR) Switch (A/T)
- TR switch is mounted to transaxle, near shift lever mechanism. Turn ignition off. Disconnect TR switch. Set TR switch to "P" position. Check for continuity between specified terminals. See TRANSAXLE RANGE SWITCH TESTING table. If continuity is present, go to next step. If continuity is not present, ensure TR switch is adjusted correctly. If adjustment is correct, replace TR switch .

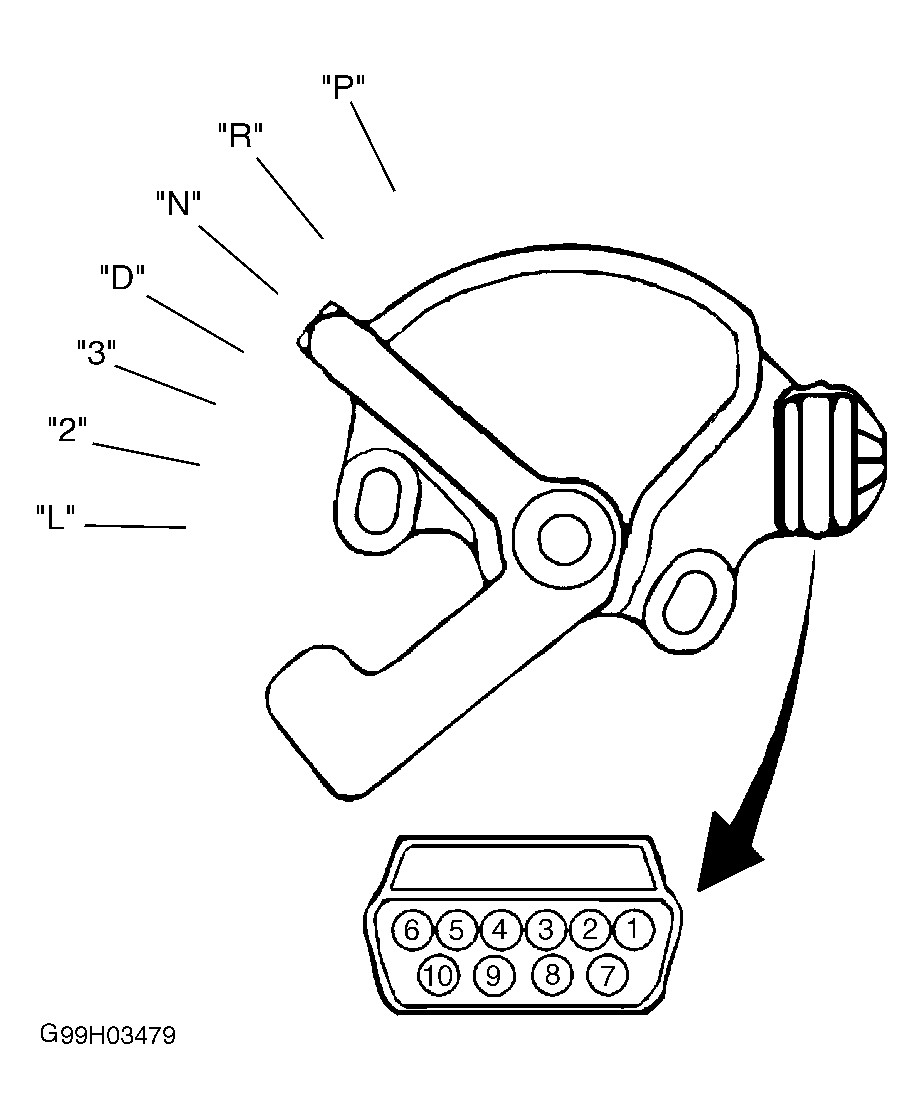

- Turn ignition off. Set TR switch to "N" position. Check for continuity between specified terminals. See TRANSAXLE RANGE SWITCH TESTING table. See Fig 1 or Fig 2
. If continuity is present, no problem is found at this time. If continuity is not present, ensure TR switch is adjusted correctly. If adjustment is correct, replace TR switch.
TRANSAXLE RANGE SWITCH TESTING
| Switch Position |
Test Between Terminals No. |
| Accent |
| Park |
6 & 9; 7 & 8 |
| Neutral |
6 & 12; 7 & 8 |
| Elantra, Santa Fe, Sonata & XG350 |
| Park |
3 & 8; 9 & 10 |
| Neutral |
4 & 8; 9 & 10 |
| Tiburon |
| Park |
3 & 9; 7 & 8 |
| Neutral |
3 & 12; 7 & 8 |
