Low-Reverse Brake End Play Adjustment

Reverse the transmission and install a dial gauge. Move the special tool up and down to measure the end play.

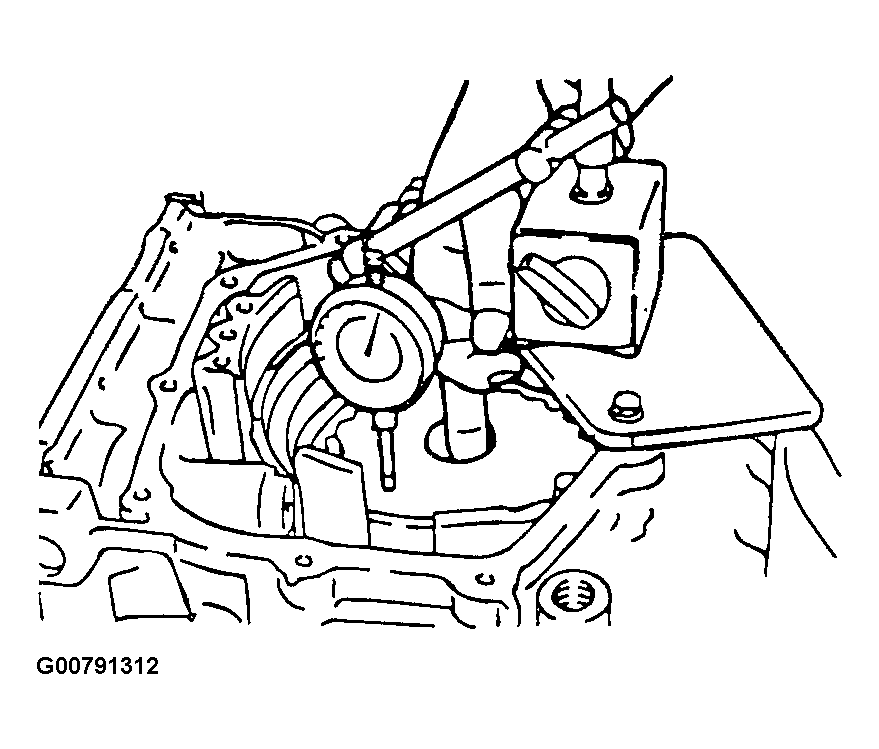

Fig 1: Adjusting Low-Reverse Brake End Play (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

Standard value : 1.65 ~ 2.11 mm

Select a pressure plate whose thickness is within the following value. [A (moving amount) + thickness of the special tool - 2.11] to [A (moving amount) + thickness of the special tool - 1.65]. Refer to SNAP RING FOR ADJUSTMENT AND SPACER  .

Fig 2: Adjusting Low-Reverse Brake End Play (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
