Using Hi-Scan (Pro)

  1. To register transmitter code, first connect keyless adapter (09900-21300) to DLC (Data Link Connector) cable of hi-scan as shown in the illustration.

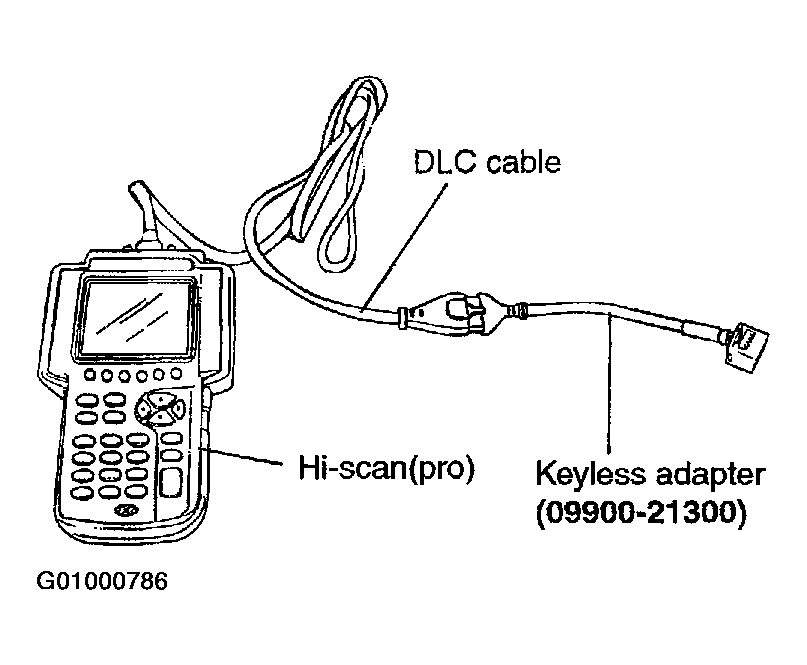

    Fig 1: Identifying Hi-Scan (Pro) & Adapter
    G01000786Courtesy of HYUNDAI MOTOR CO.
  2. After connecting keyless adapter to the multi purpose check connector (10pins) beside data link connector in driver side crash pad lower panel, turn the power on hi-scan.

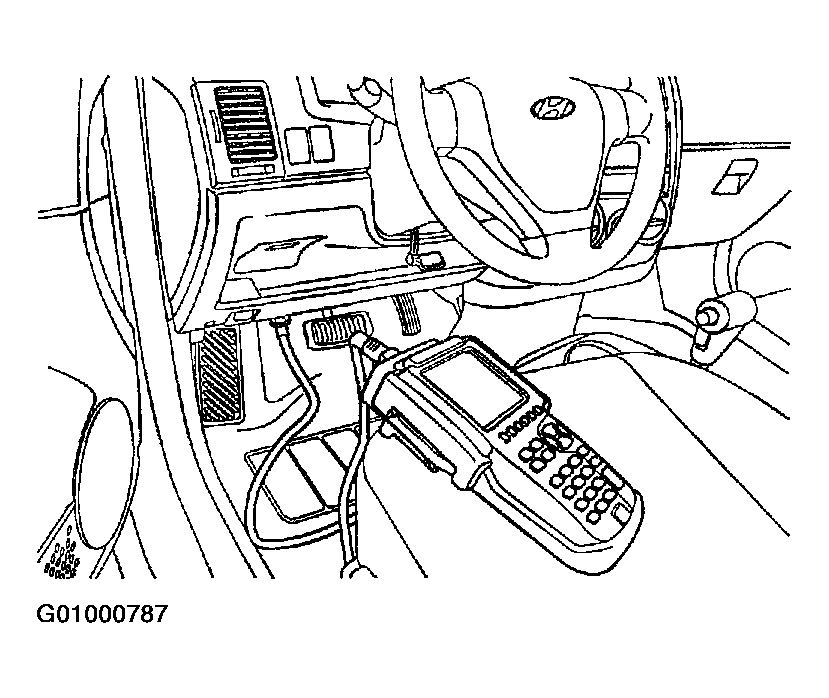

    Fig 2: View Of Hi-Scan (Pro) Installed
    G01000787Courtesy of HYUNDAI MOTOR CO.
  3. Select the vehicle model and then do "CODE SAVING".

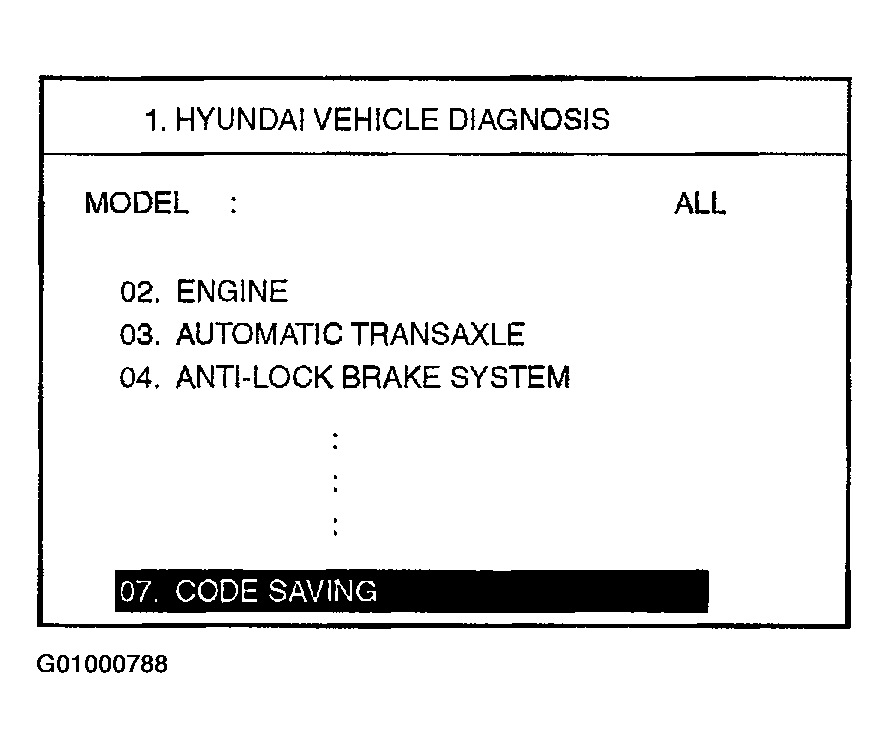

    Fig 3: Selecting "CODE SAVING" On Hi-Scan (Pro) Screen
    G01000788Courtesy of HYUNDAI MOTOR CO.
  4. After selecting "CODE SAVING" menu, button "ENTER" key, then the screen will be shown as below.

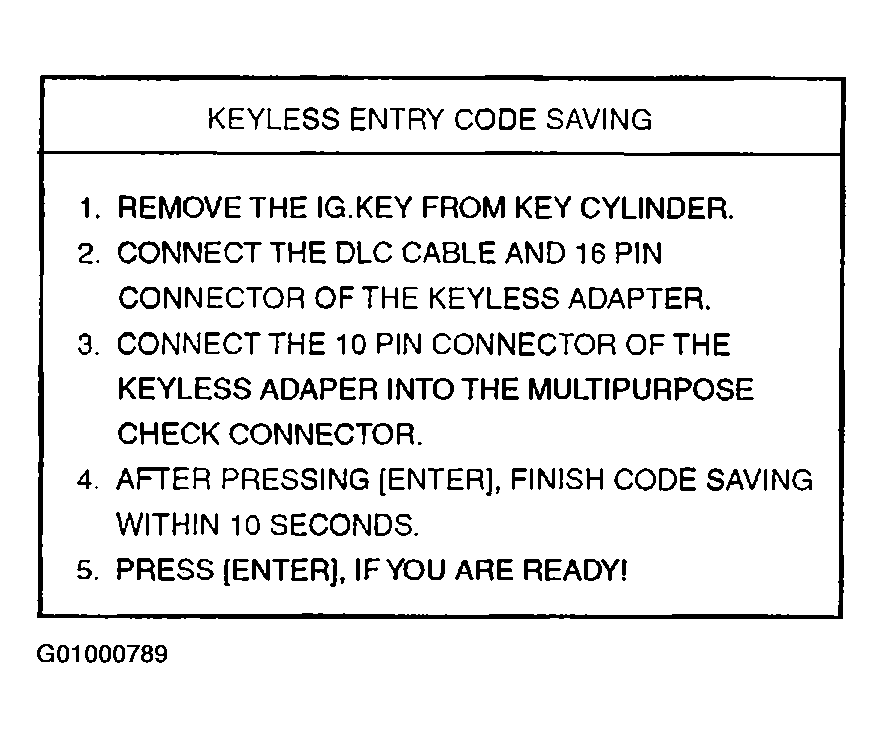

    Fig 4: Keyless Entry Code Saving Preparation
    G01000789Courtesy of HYUNDAI MOTOR CO.
  5. After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving.

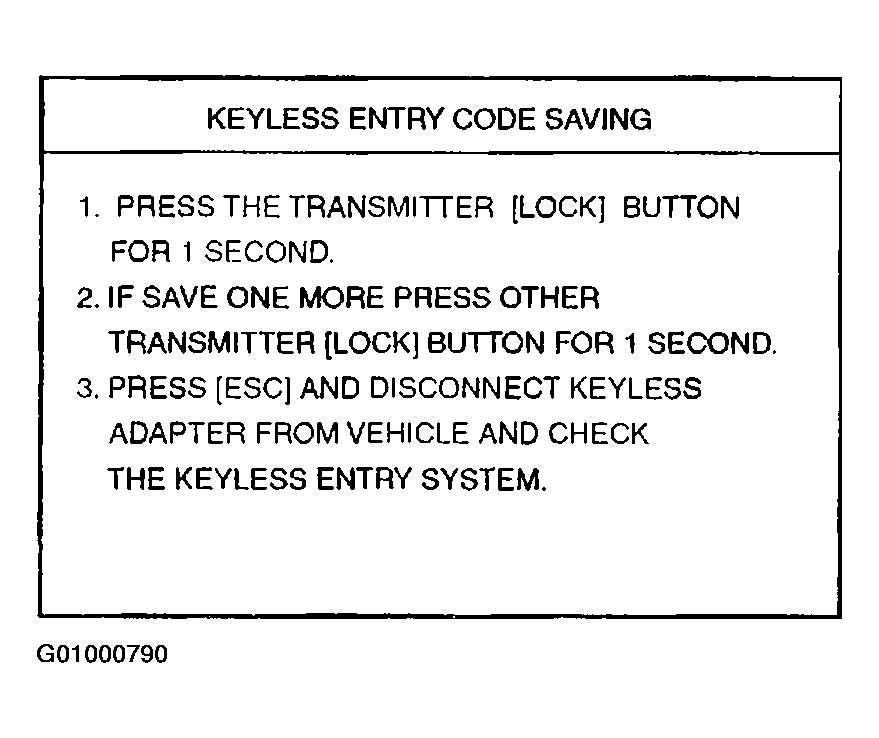

    Fig 5: Keyless Entry Code Saving Procedure
    G01000790Courtesy of HYUNDAI MOTOR CO.
  6. Follow steps 1 to 3 and then code saving is completed.
  7. Disconnect keyless adapter (09900-21300) from DLC cable and then proceed to self-diagnosis with DLC cable connected.
