Ignition Switch: Inspection: Notes

Separate the connector located under the steering column.
Inspect the switch continuity between the terminals.
If continuity is not as specified, replace the switch.

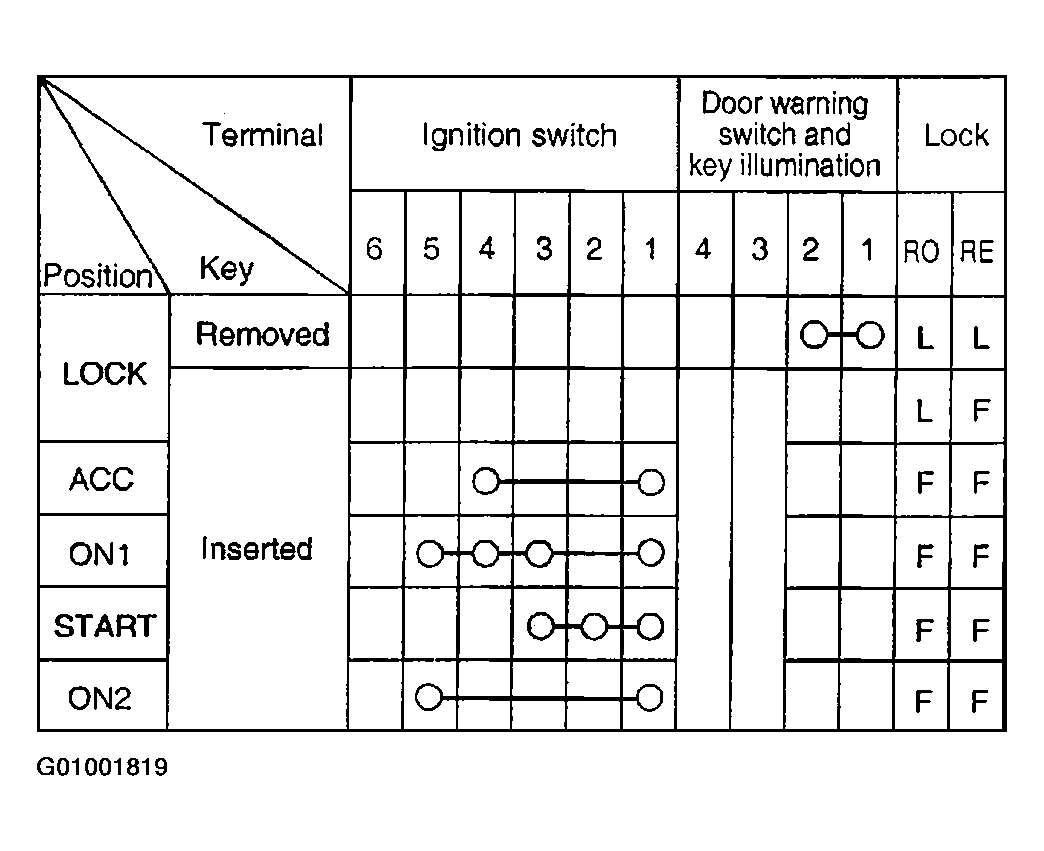

Fig 1: Ignition Switch Continuity Table
Courtesy of HYUNDAI MOTOR CO.

NOTE: indicates that there is continuity between the terminal.
RO : Round the locking bar
RE : Return the locking bar
L : Lock
F : Free

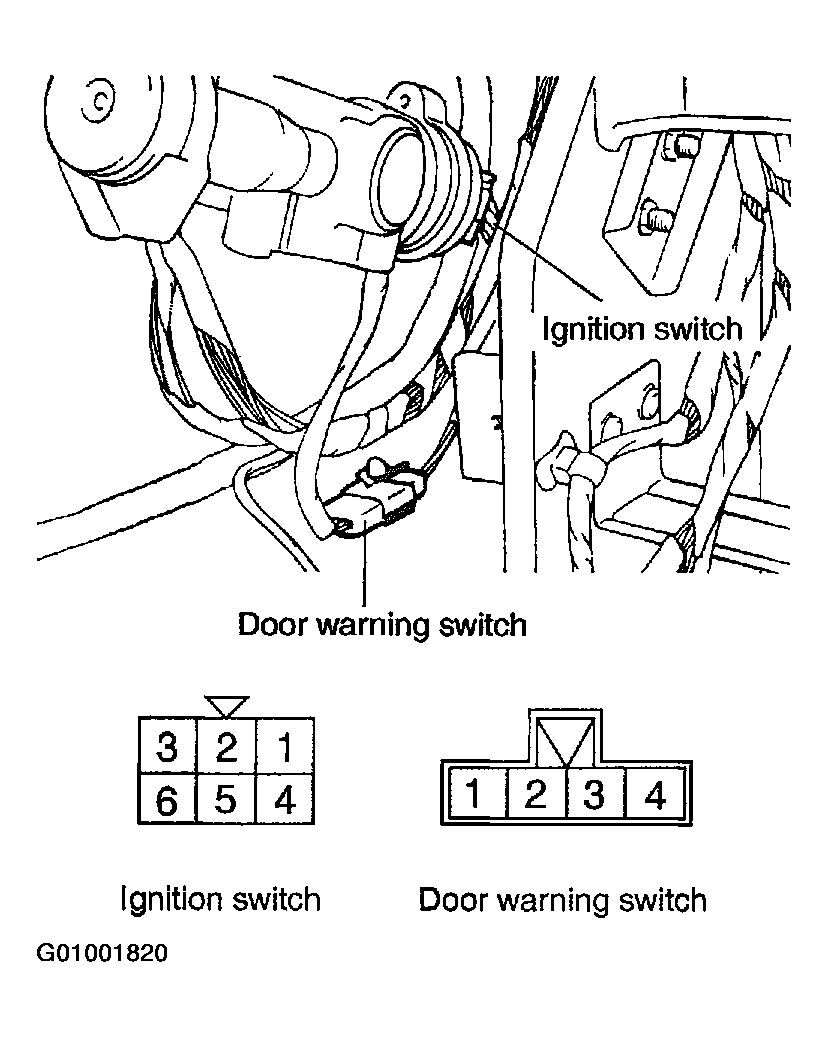

Fig 2: Identifying Ignition Switch & Door Warning Switch Connectors
