MULTIFUNCTION Switch: Components: Inspection

Check the continuity between the terminals while operating the switch.

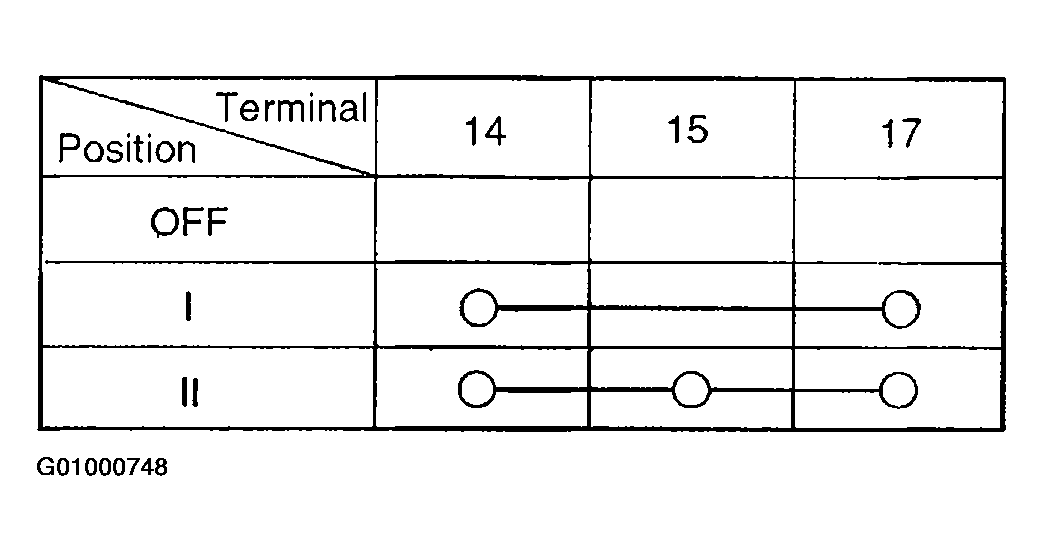

Fig 1: Lighting Switch Continuity Table

Courtesy of HYUNDAI MOTOR CO.

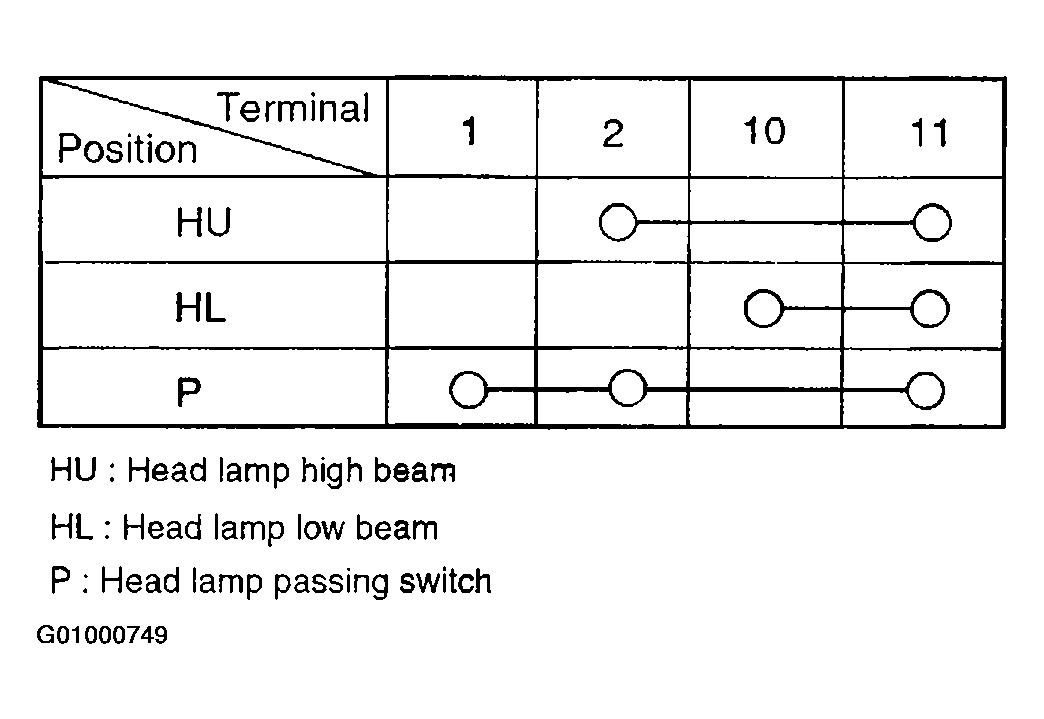

Fig 2: Dimmer & Passing Switch Continuity Table

Courtesy of HYUNDAI MOTOR CO.

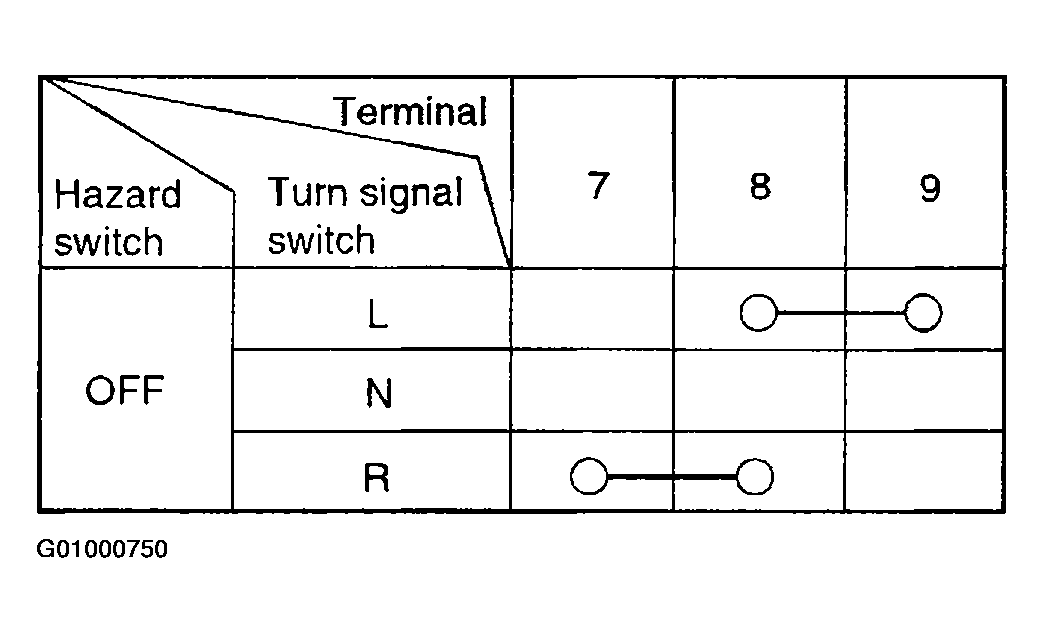

Fig 3: Turn Signal & Lane Change Switch Continuity Table

Courtesy of HYUNDAI MOTOR CO.

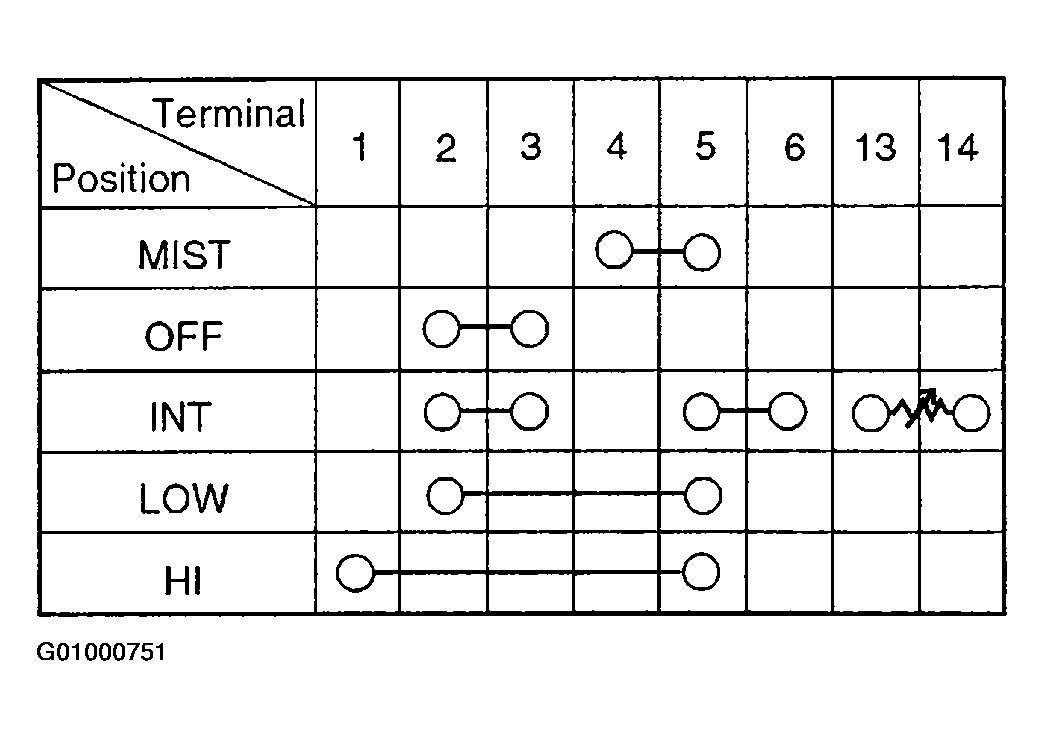

Fig 4: Wiper & Intermittent Volume Switch Continuity Table

Courtesy of HYUNDAI MOTOR CO.

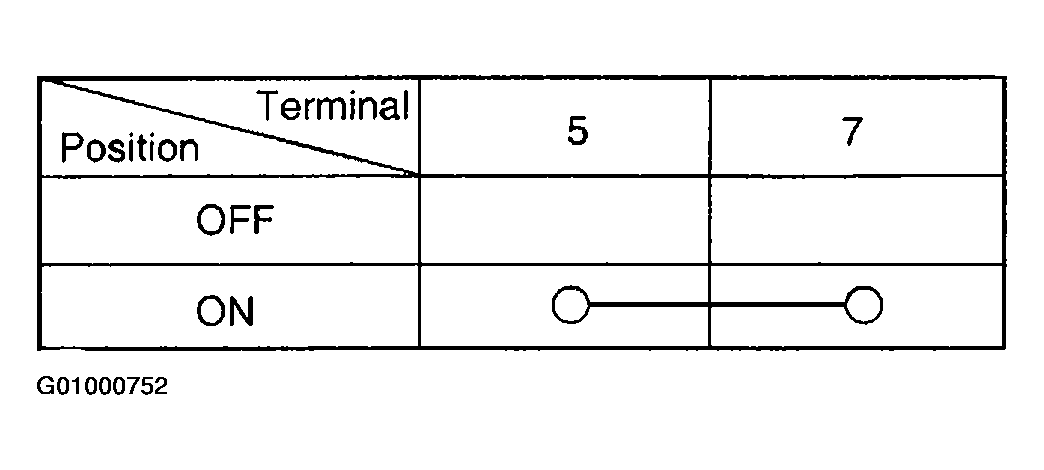

Fig 5: Washer Switch Continuity Table

Courtesy of HYUNDAI MOTOR CO.

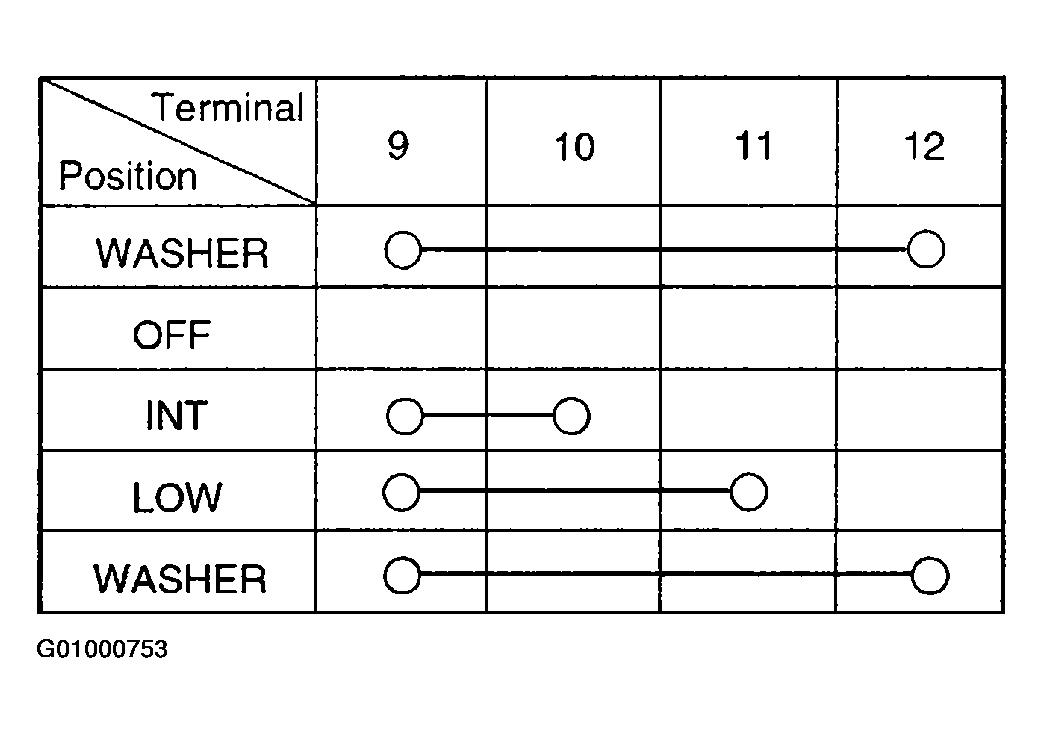

Fig 6: Rear Wiper & Washer Switch Continuity Table

Courtesy of HYUNDAI MOTOR CO.
