Monitor Scantool Data

  1. Ignition "OFF".
  2. Connect Scantool and Engine "ON".
  3. Monitor Intake Air Temperature Sensor parameter on Current Data.

    Specification: (Error range is 2~3%)

    MAFS & IATS SPECIFICATIONS

    Temperature (°C/°F) -40/40 -30/-22 -20/-4 0/32 20/68 80/176 100/212 110/230 120/248
    Resistance (kΩ) 45.3 25.6 15.1 5.8 2.5 0.33 0.19 0.16 0.13
    Voltage (V) 4.48 4.34 4.12 3.46 2.57 0.64 0.39 0.34 0.27

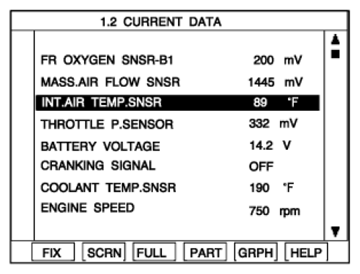

    Fig 1: Monitoring Intake Air Temperature Sensor Parameter On Current Data
    G07823207
  4. Is the IATS parameter displayed within specifications?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
