Output Shaft / Transfer Drive Gear
WARNING: This page is about a different variant/trim than selected.

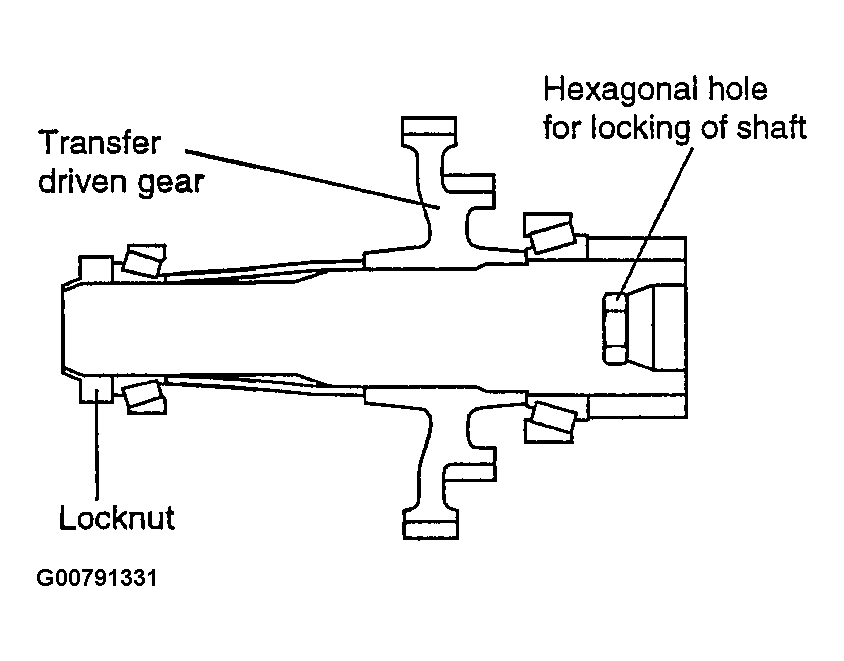

As shown in the illustration on the below, the transfer driven gear is press-fitted onto the output shaft, and the output shaft is secured by a locknut and supported by bearings.
The locknut has a left-handed thread, and a hexagonal hole in the other end of the shaft enables the shaft to be held in position for locknut removal.
