Manual Control Lever

WARNING: This page is about a different variant/trim than selected.

The manual control lever is fitted to the top of the valve body and is linked to the parking roller rod and manual control valve pin.

A detent mechanism is provided to improve the gear shift feeling during manual selection.

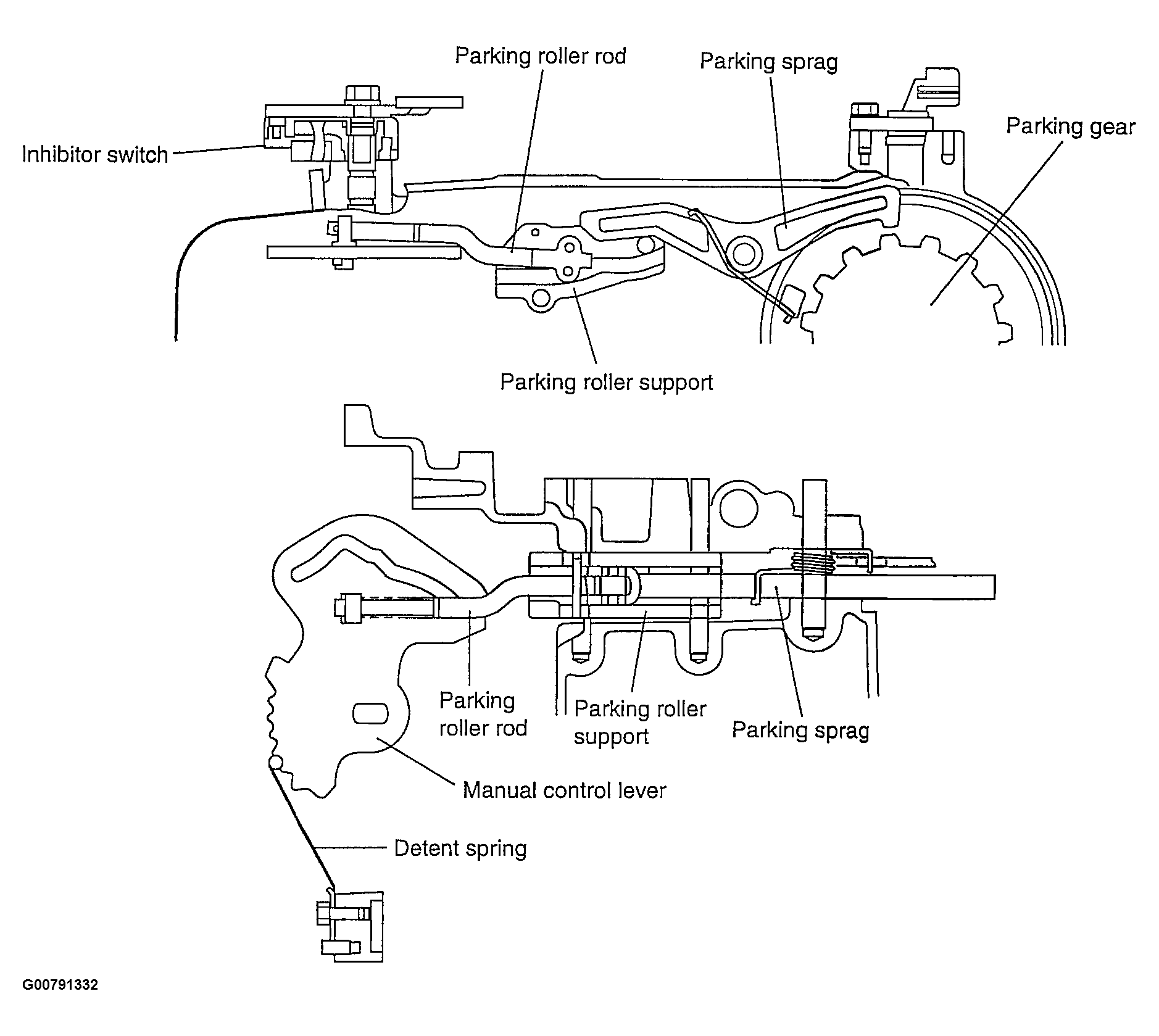

Fig 1: Identifying Manual Control Lever & Parking Mechanism Components
G00791332Courtesy of HYUNDAI MOTOR CO.
