Parking Mechanism: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the battery terminal and battery.
Remove the drain plug and drain the automatic transaxle fluid.

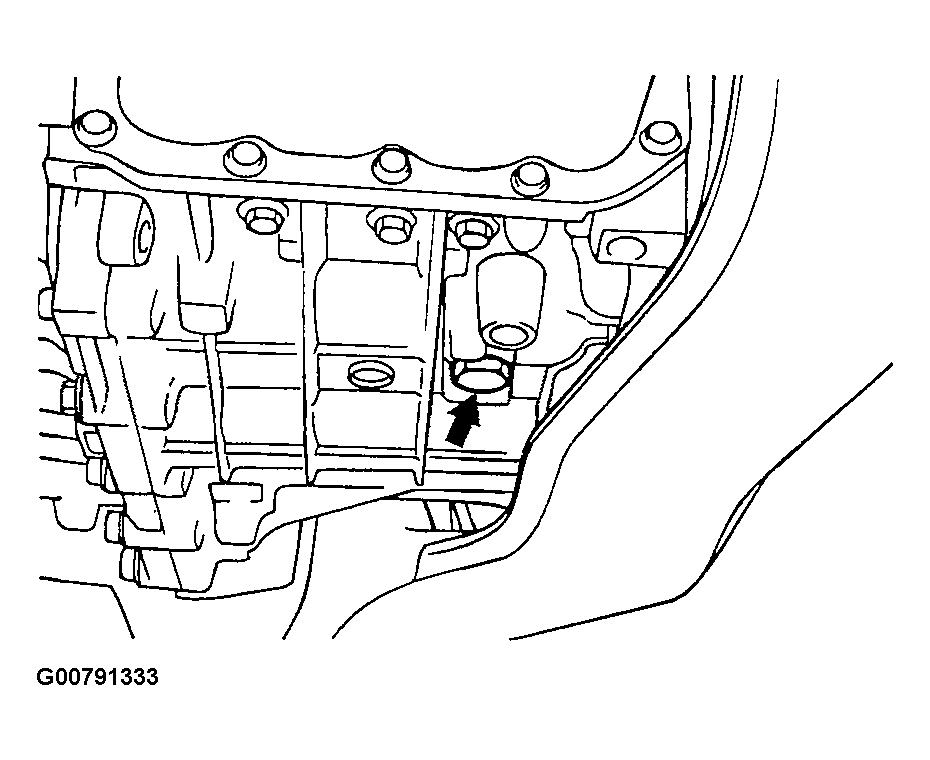

Fig 1: Identifying Drain Plug
Courtesy of HYUNDAI MOTOR CO.
Remove the air cleaner assembly.
1. Upper

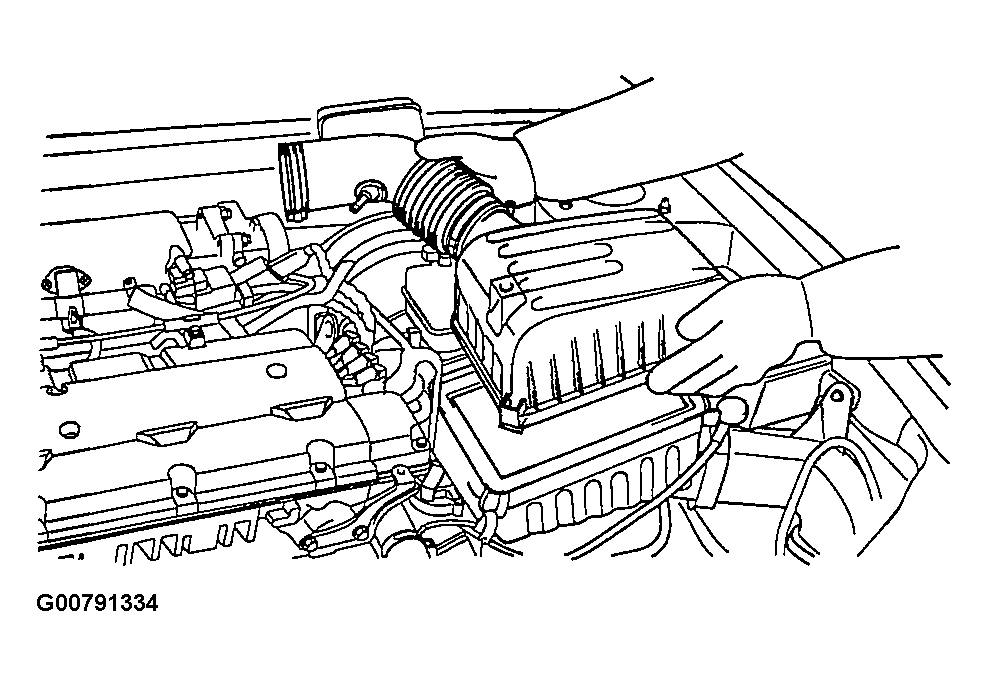

  Fig 2: Identifying Upper Air Cleaner Assembly
  Courtesy of HYUNDAI MOTOR CO.
2. Lower

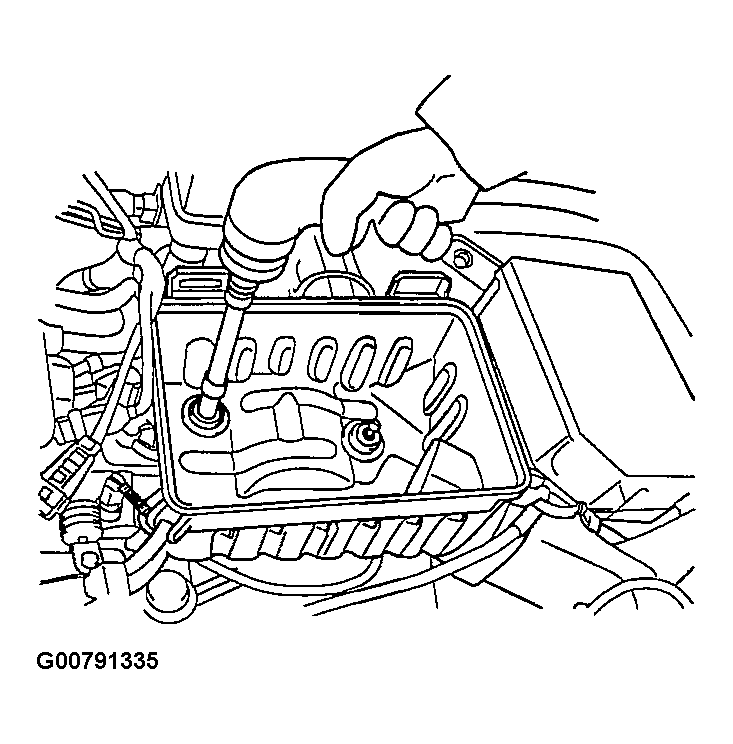

Fig 3: Identifying Lower Air Cleaner Assembly
Courtesy of HYUNDAI MOTOR CO.
Disconnect the speedometer sensor connector.
Disconnect the transaxle range switch connector, solenoid connector, and oil temperature sensor connector.

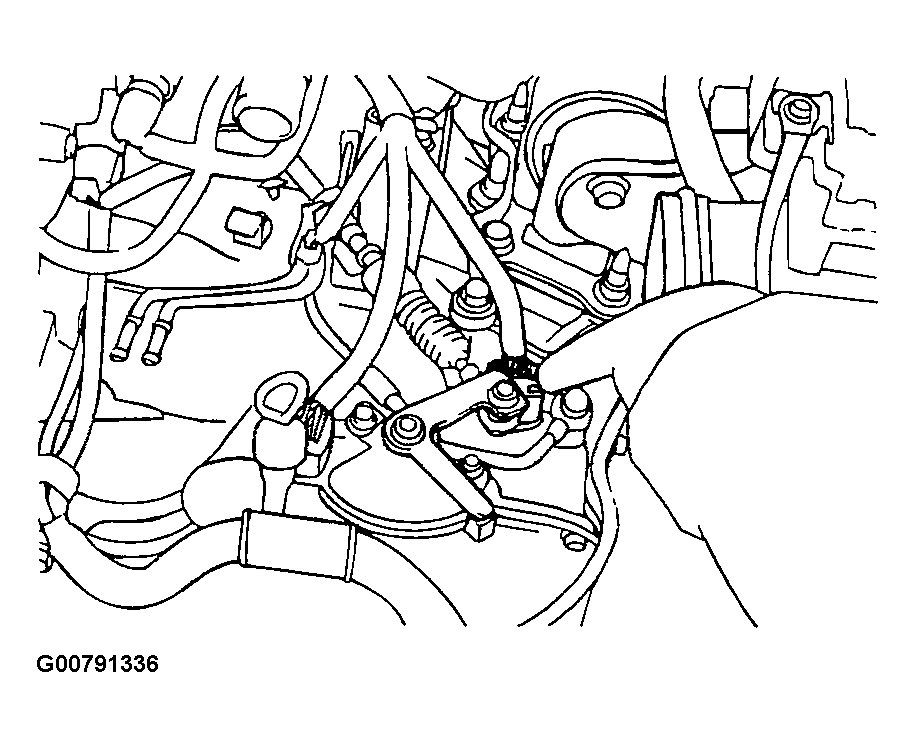

Fig 4: Identifying Transaxle Range Switch Connector, Solenoid Connector & Oil Temperature Sensor Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the oil cooler hose.

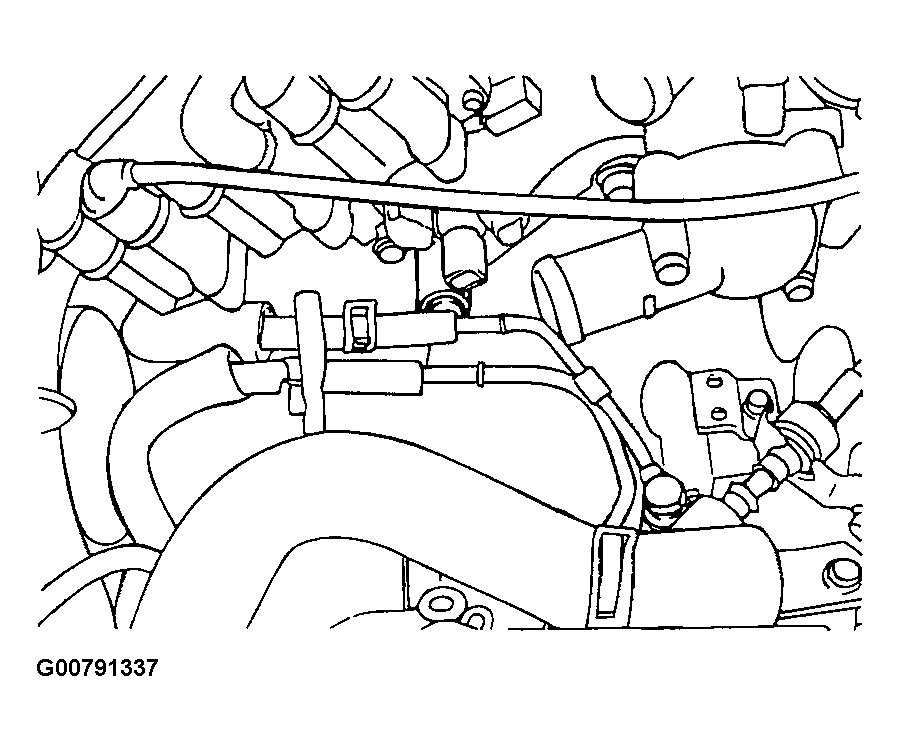

Fig 5: Identifying Oil Cooler Hose
Courtesy of HYUNDAI MOTOR CO.
Remove the control cable.

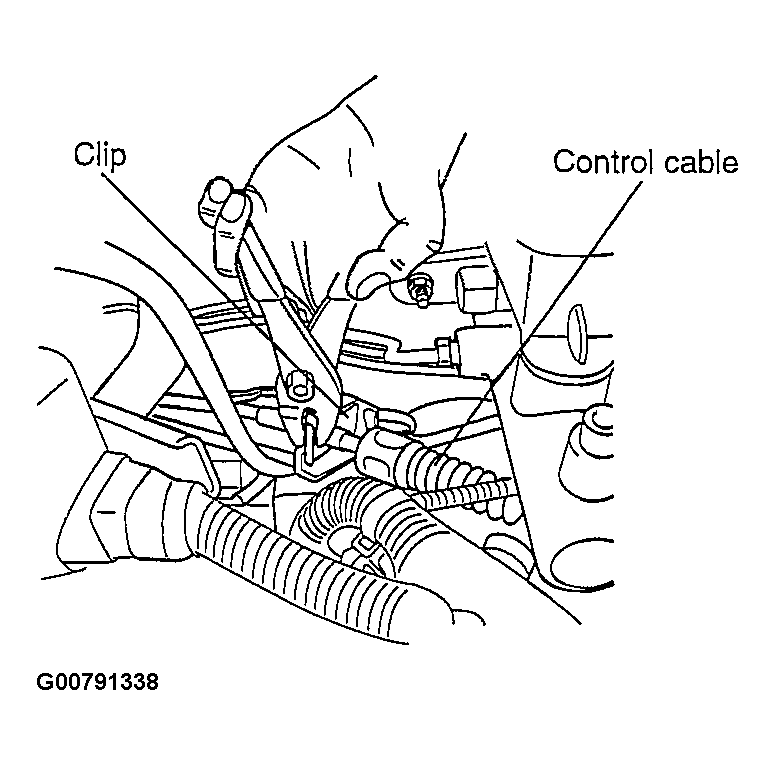

Fig 6: Removing Control Cable
Courtesy of HYUNDAI MOTOR CO.
Remove the steering u-joint bolt and return tube mounting bolts.
NOTE: Mark a mating line on the steering column universal joint and the gear box before disassembling to make the installation easier.

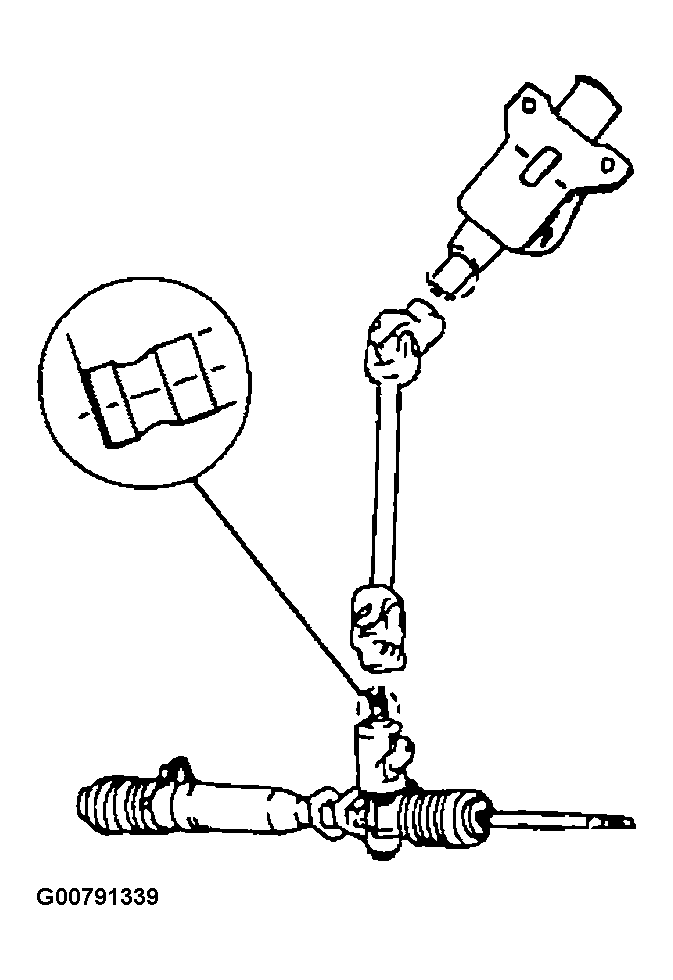

Fig 7: Referencing Steering Column Universal Joint
Courtesy of HYUNDAI MOTOR CO.
Separate the power steering oil pump hose.

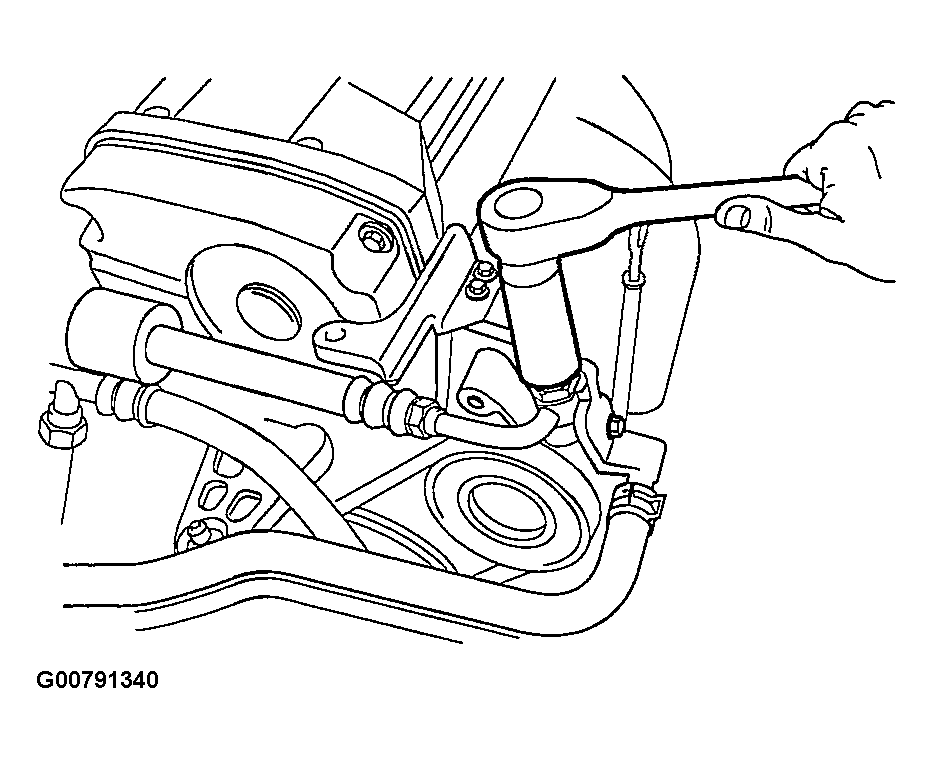

Fig 8: Separating Power Steering Oil Pump Hose
Courtesy of HYUNDAI MOTOR CO.
Separate the power steering return hose.

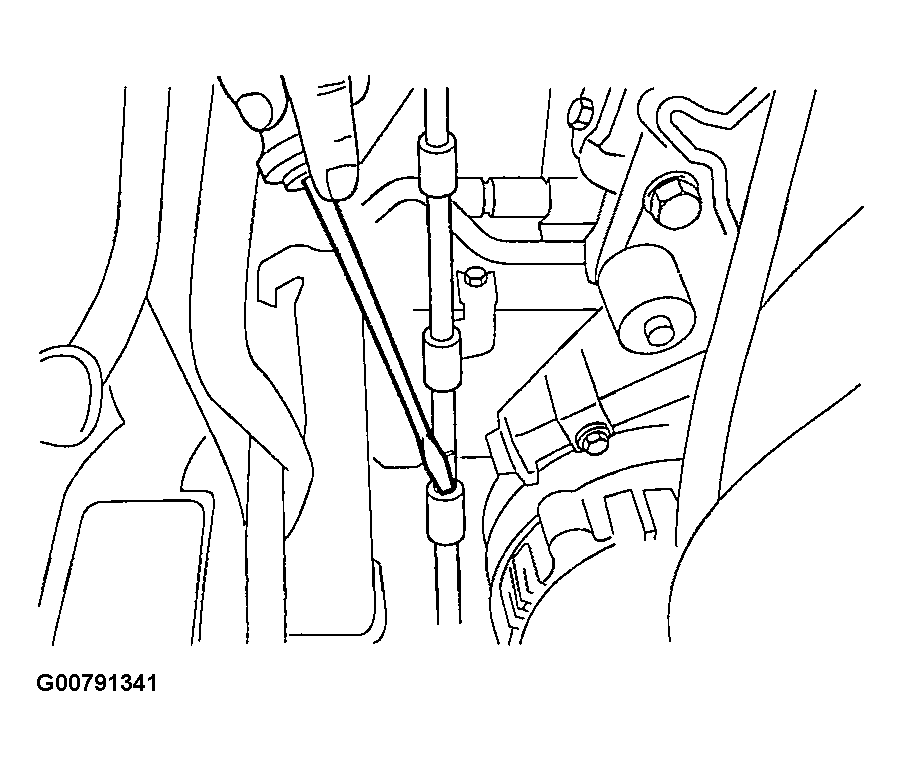

Fig 9: Separating Power Steering Return Hose
Courtesy of HYUNDAI MOTOR CO.
Remove the upper connecting transaxle bolt.
Attach the special tool, engine support fixture, (J28467-B, J28467-125) to the engine hooks.
Remove the tire and caliper.

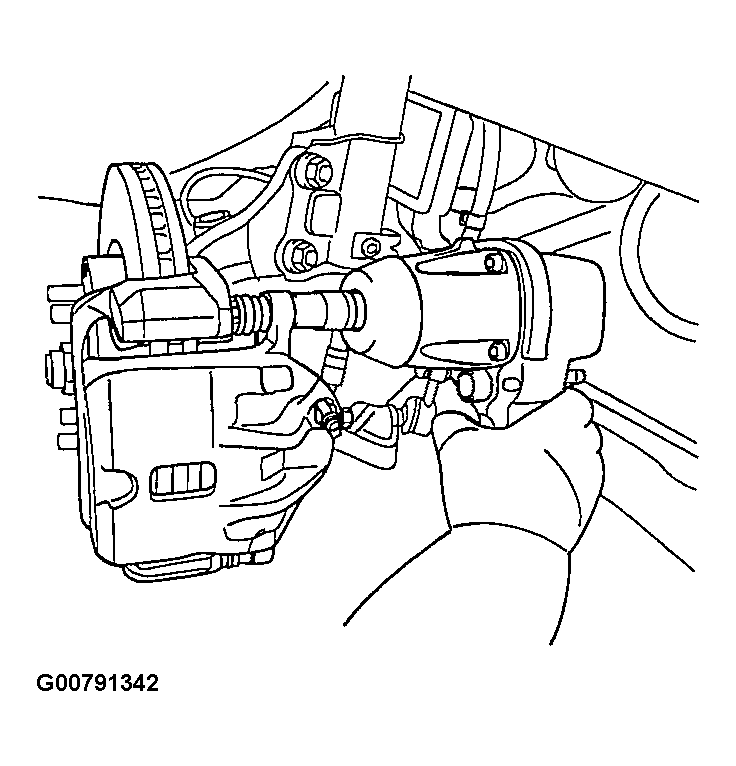

Fig 10: Removing Brake Caliper
Courtesy of HYUNDAI MOTOR CO.
Separate the tie rod end.

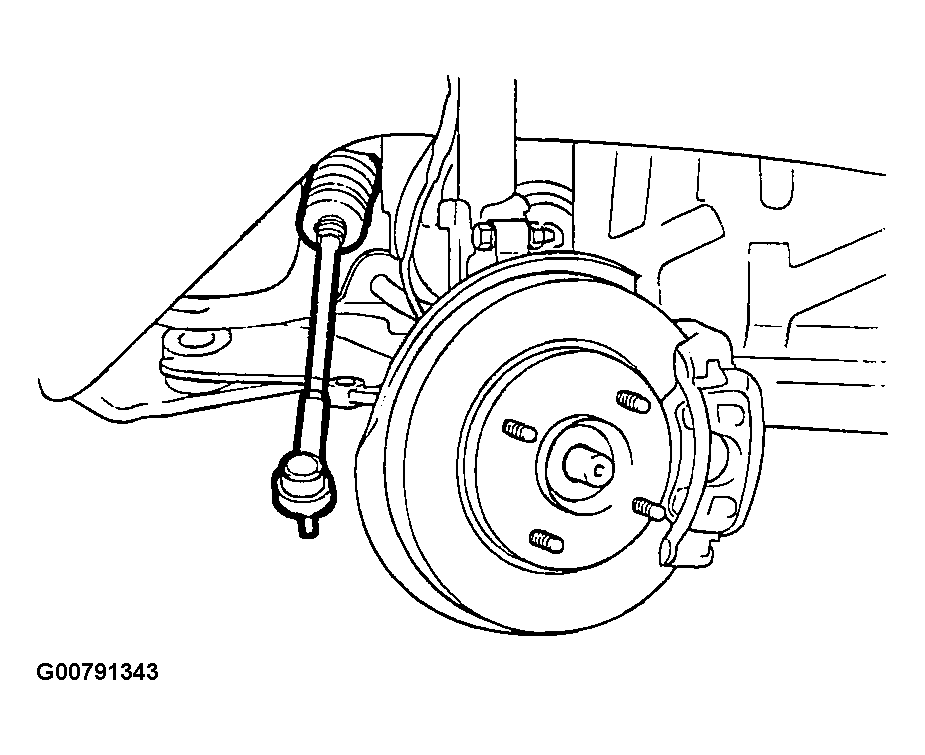

Fig 11: Separating Tie Rod End
Courtesy of HYUNDAI MOTOR CO.
Remove the wheel speed sensor and the knuckle mounting bolt.

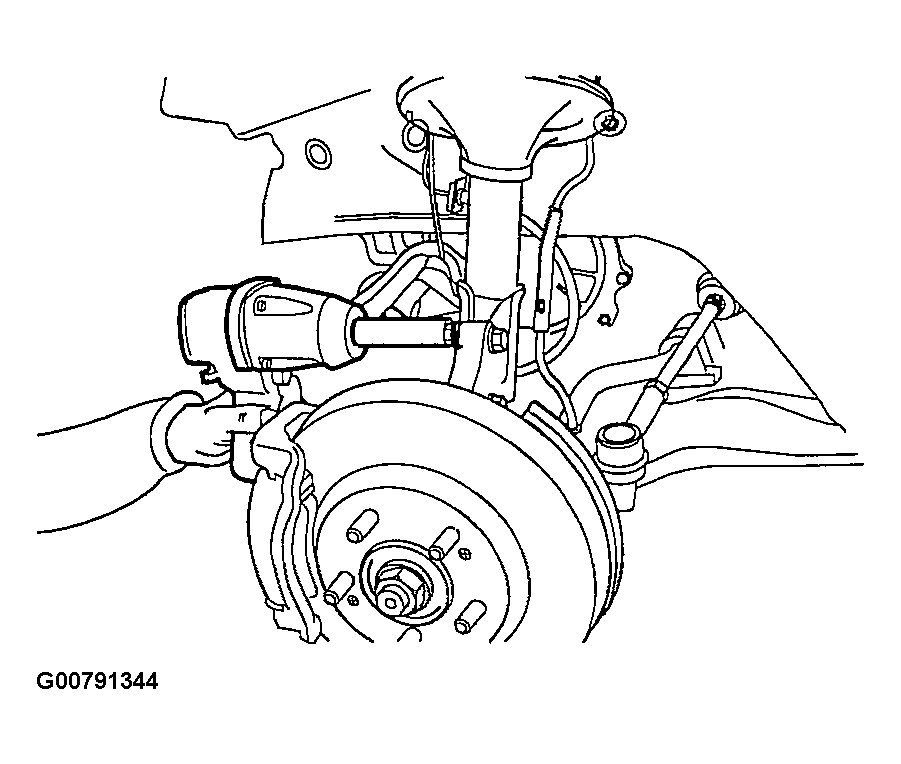

Fig 12: Removing Knuckle Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.
Remove the transaxle mounting bracket.
1. Insulator bolt

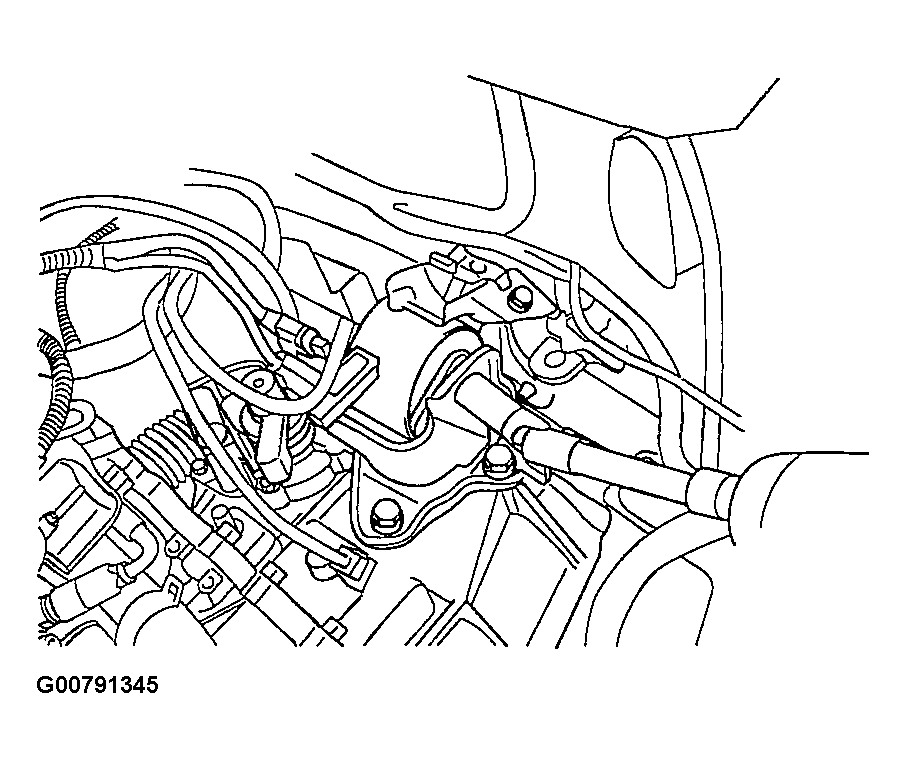

  Fig 13: Removing Insulator Bolt
  Courtesy of HYUNDAI MOTOR CO.
2. Body mounting bolt (Upper)

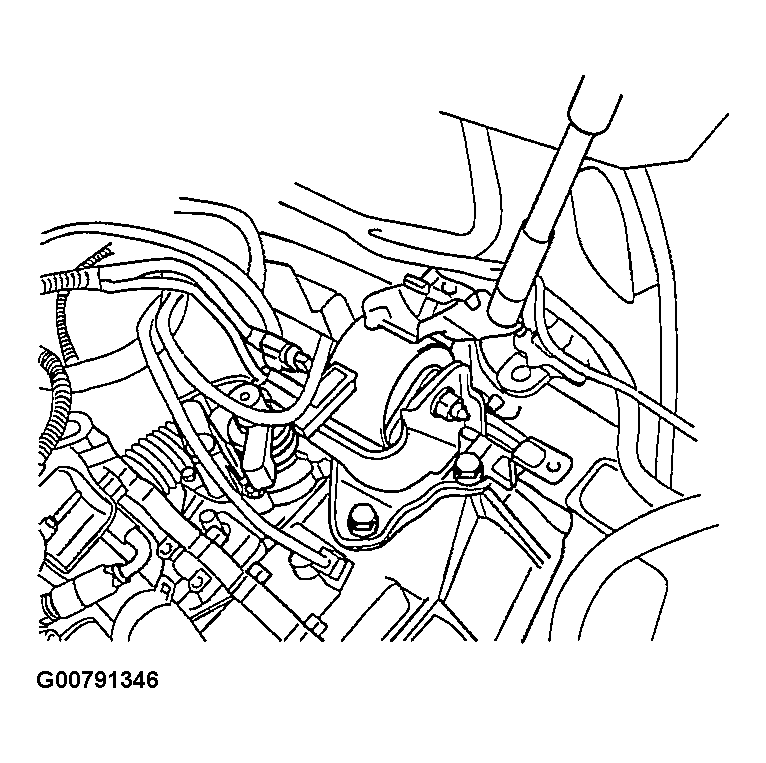

  Fig 14: Removing Body Mounting Bolt (Upper)
  Courtesy of HYUNDAI MOTOR CO.
3. Body mounting bolt (Side)

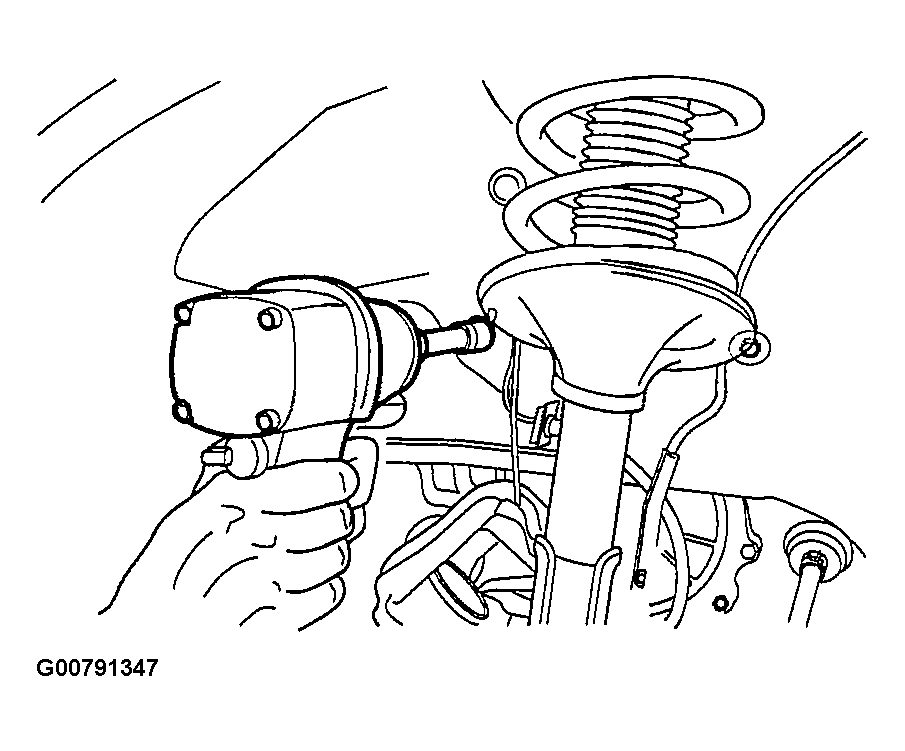

  Fig 15: Removing Body Mounting Bolt (Side)
  Courtesy of HYUNDAI MOTOR CO.
4. Transaxle side mounting bolt.

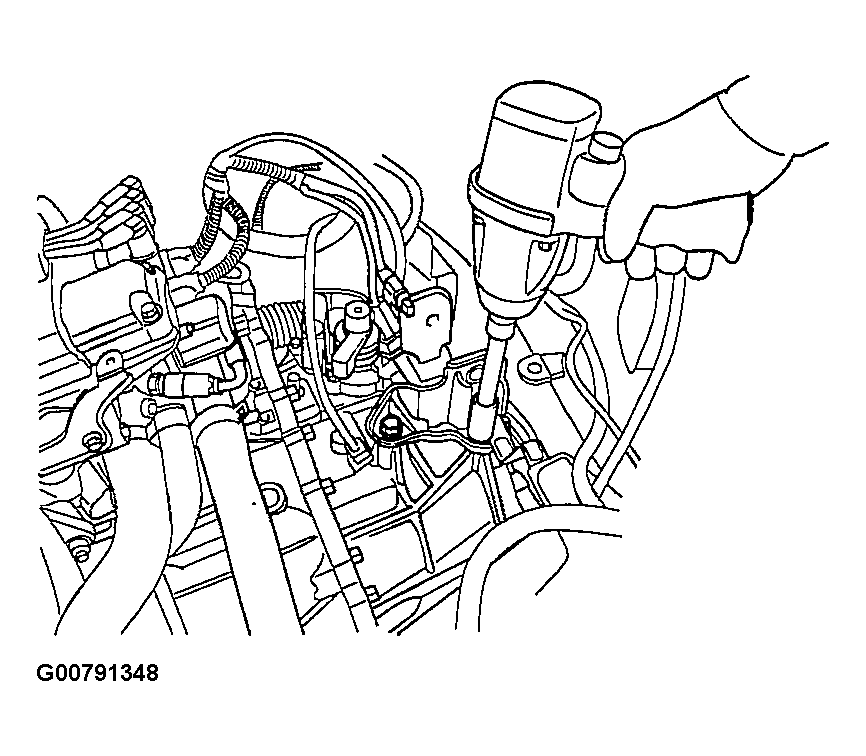

Fig 16: Removing Transaxle Side Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.
Remove the front roll stopper.
1. Insulator bolt

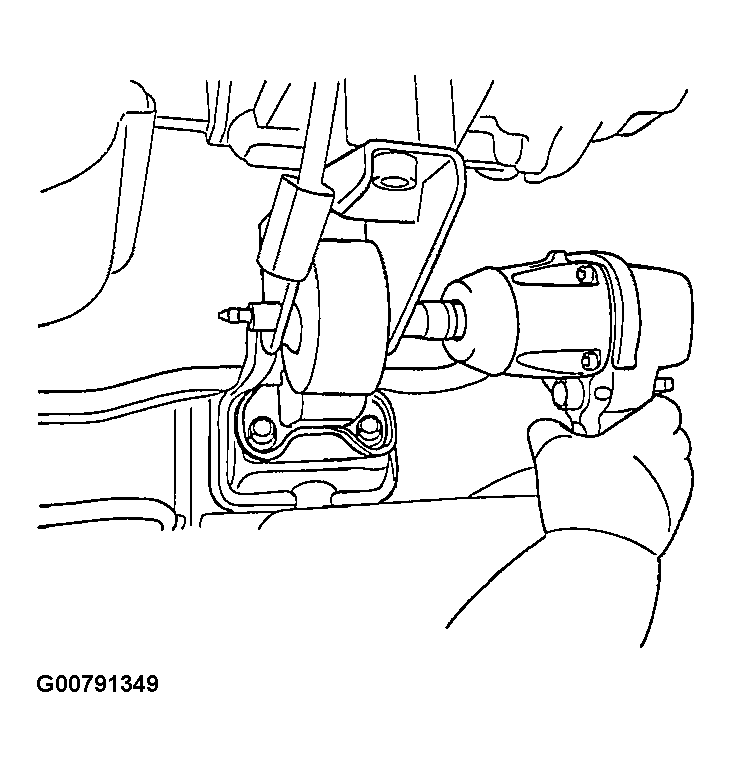

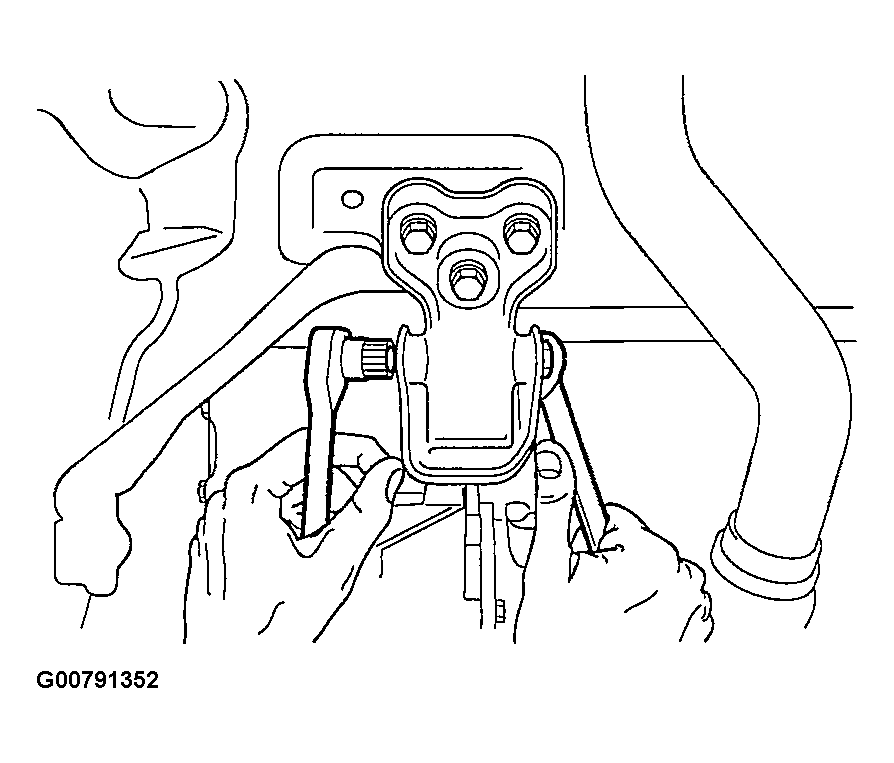

  Fig 17: Removing The Front Roll Stopper Insulator Bolt
  Courtesy of HYUNDAI MOTOR CO.
2. Stopper bolt (Upper)

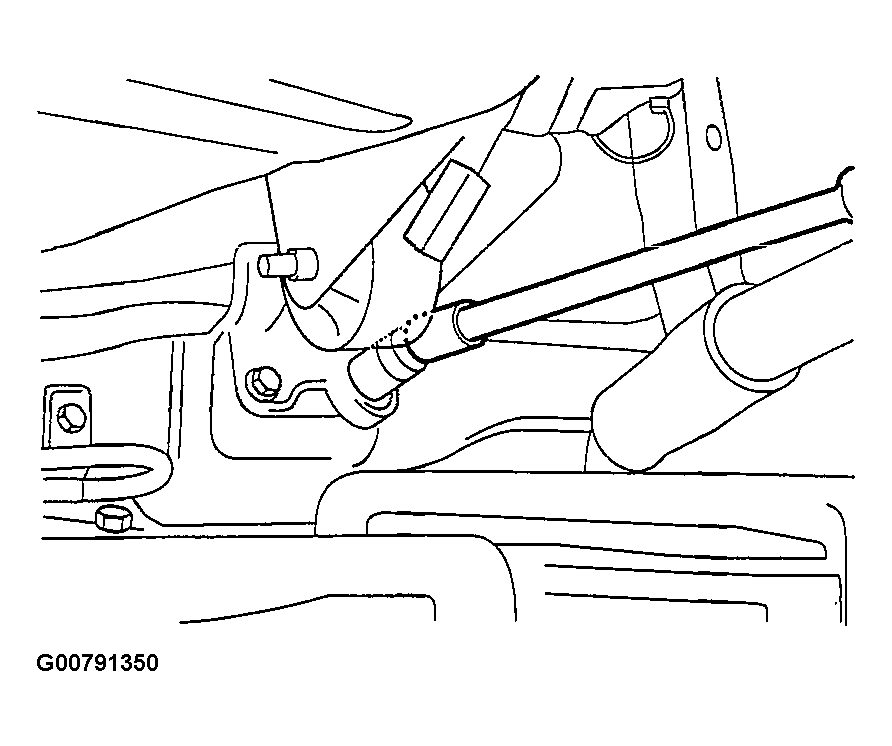

  Fig 18: Removing Stopper Bolt (Upper)
  Courtesy of HYUNDAI MOTOR CO.
3. Stopper bolt (Lower)

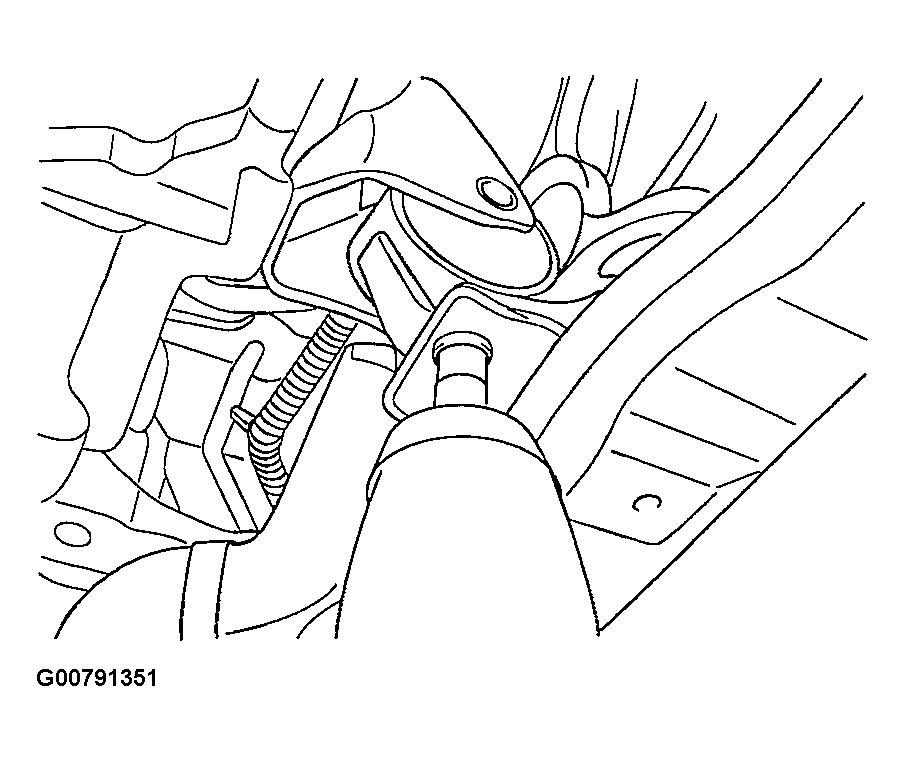

Fig 19: Removing Stopper Bolt (Lower)
Courtesy of HYUNDAI MOTOR CO.
Remove the rear roll stopper.
1. Insulator bolt

  Fig 20: Removing Rear Roll Stopper Insulator Bolt
  Courtesy of HYUNDAI MOTOR CO.
2. Stopper bolt

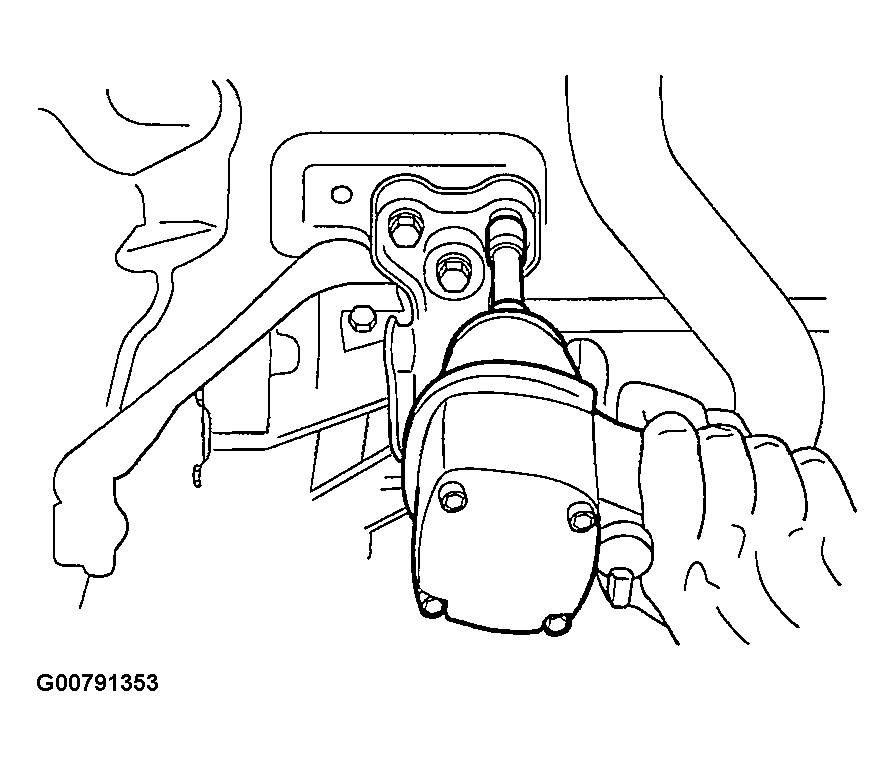

Fig 21: Removing Stopper Bolt
Courtesy of HYUNDAI MOTOR CO.
Remove the drive shaft.
Remove the subframe mounting bolts and the subframe.

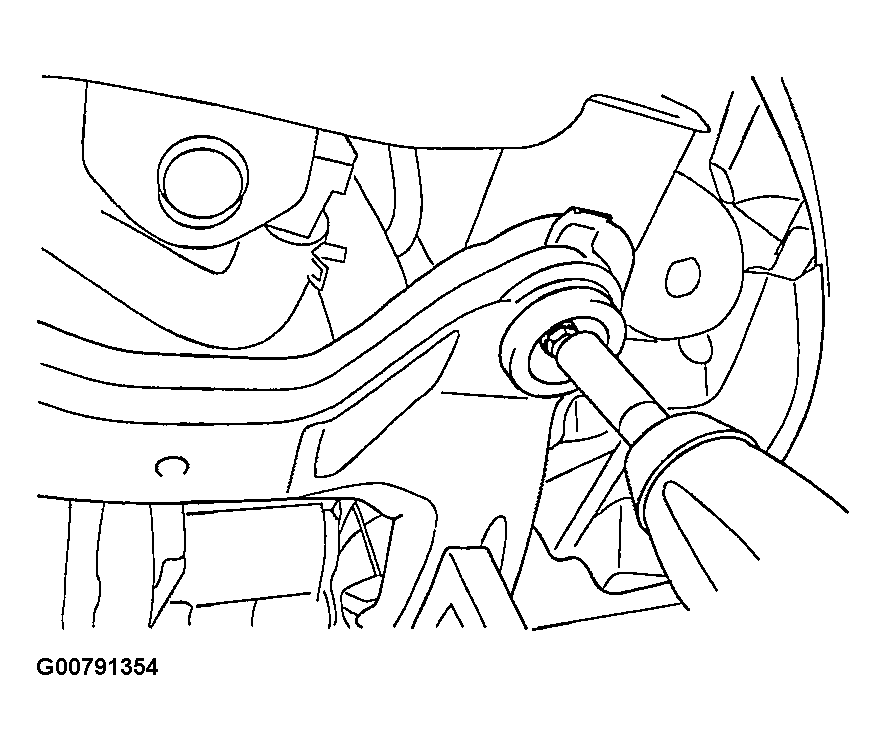

Fig 22: Removing Subframe Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.
Install the jack under the transaxle assembly.

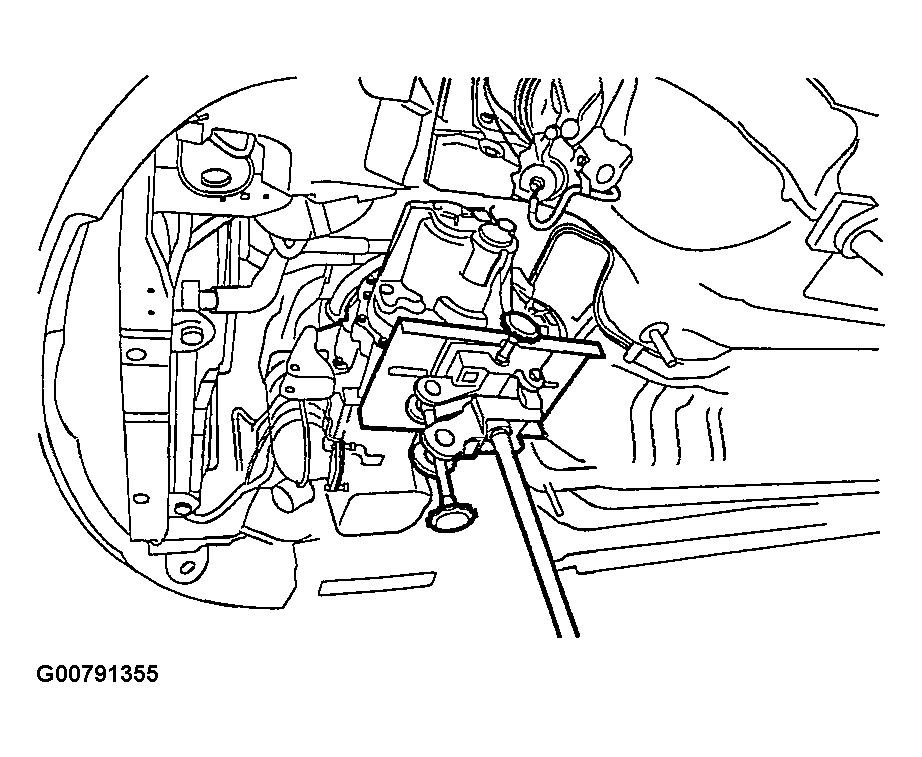

Fig 23: Installing Jack Under Transaxle Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the automatic transaxle mounting lower bolts.

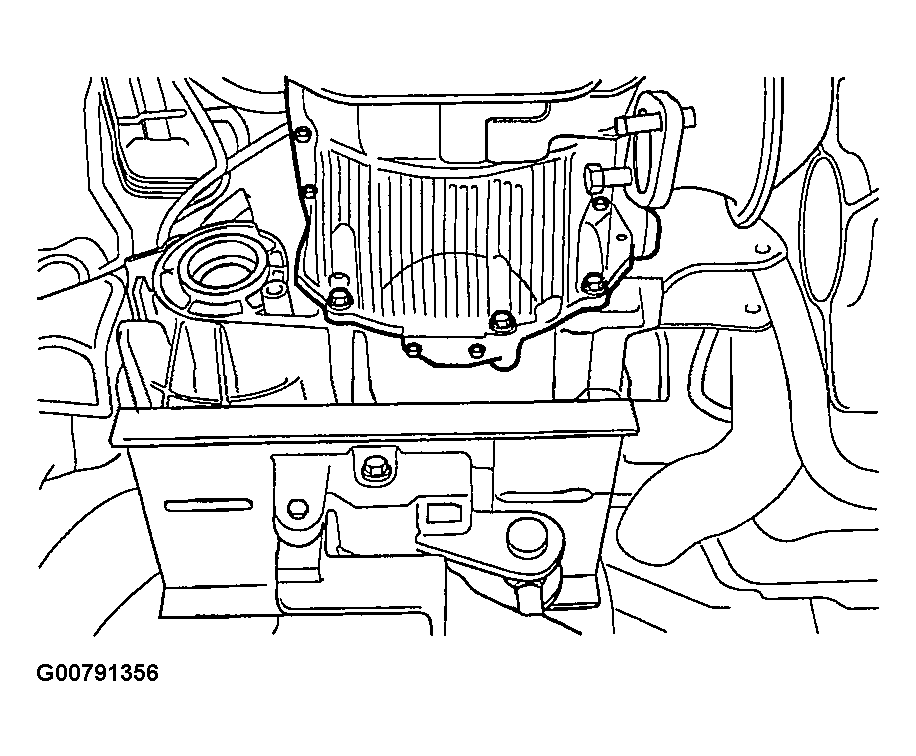

Fig 24: Identifying Automatic Transaxle Mounting Lower Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove the engine to automatic transaxle bolts.
Remove the automatic transaxle assembly by jack.
CAUTION:
1. Engine and transmission mounting insulators should be installed as specified orders.
2. Mounting bracket installation procedures.
  - Engine mounting bracket.
  - T/M mounting bracket.
  - Rear roll stopper mounting bracket.
  - Front roll stopper mounting bracket.
3. When installing the front roll stopper mounting bracket, be especially careful not to crush the insulator. If crushed, idle vibration may occur.
