Diagnostic Trouble Code Description
WARNING:
This page is about a different variant/trim than selected.

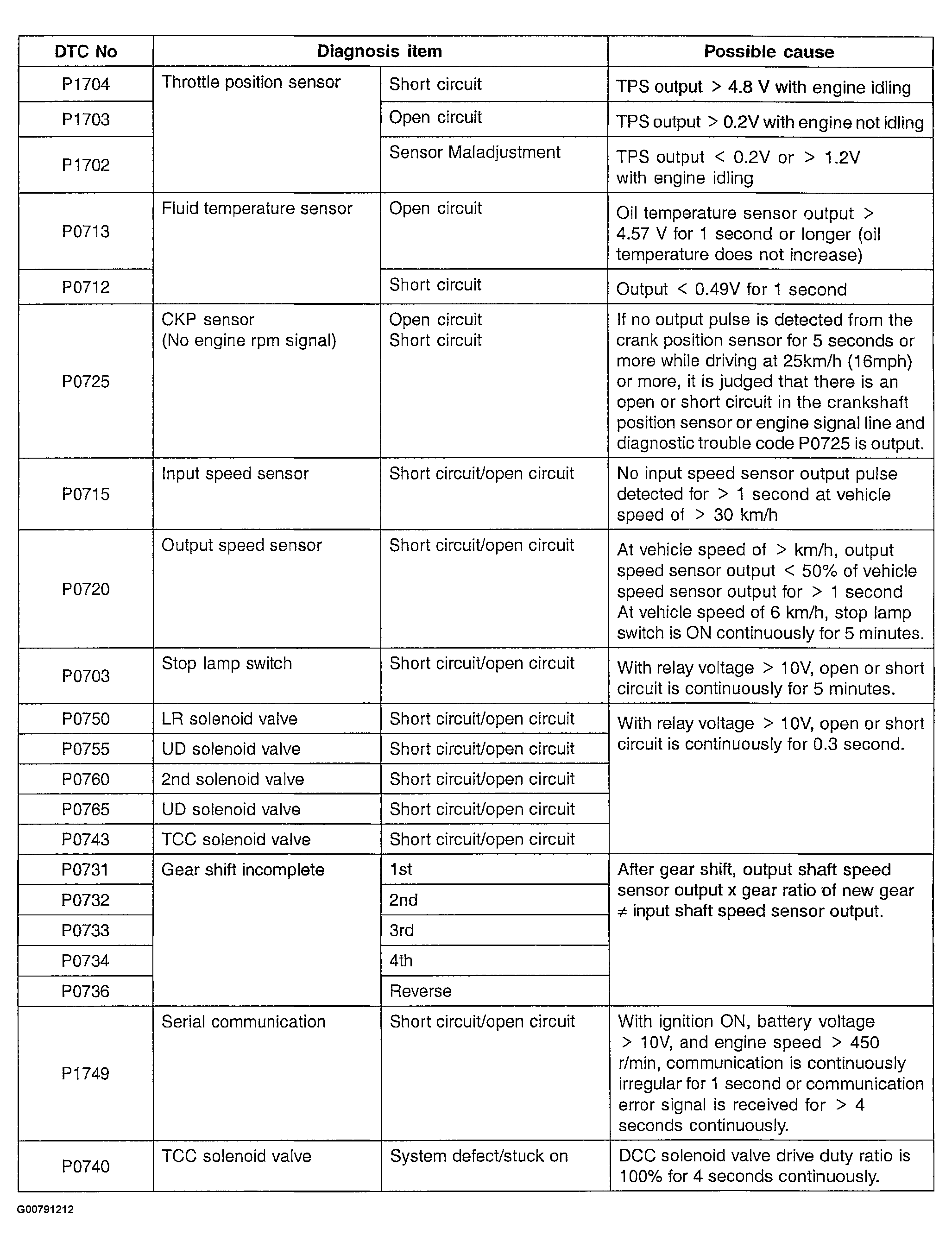

Fig 1: Diagnostic Trouble Code Description Table (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

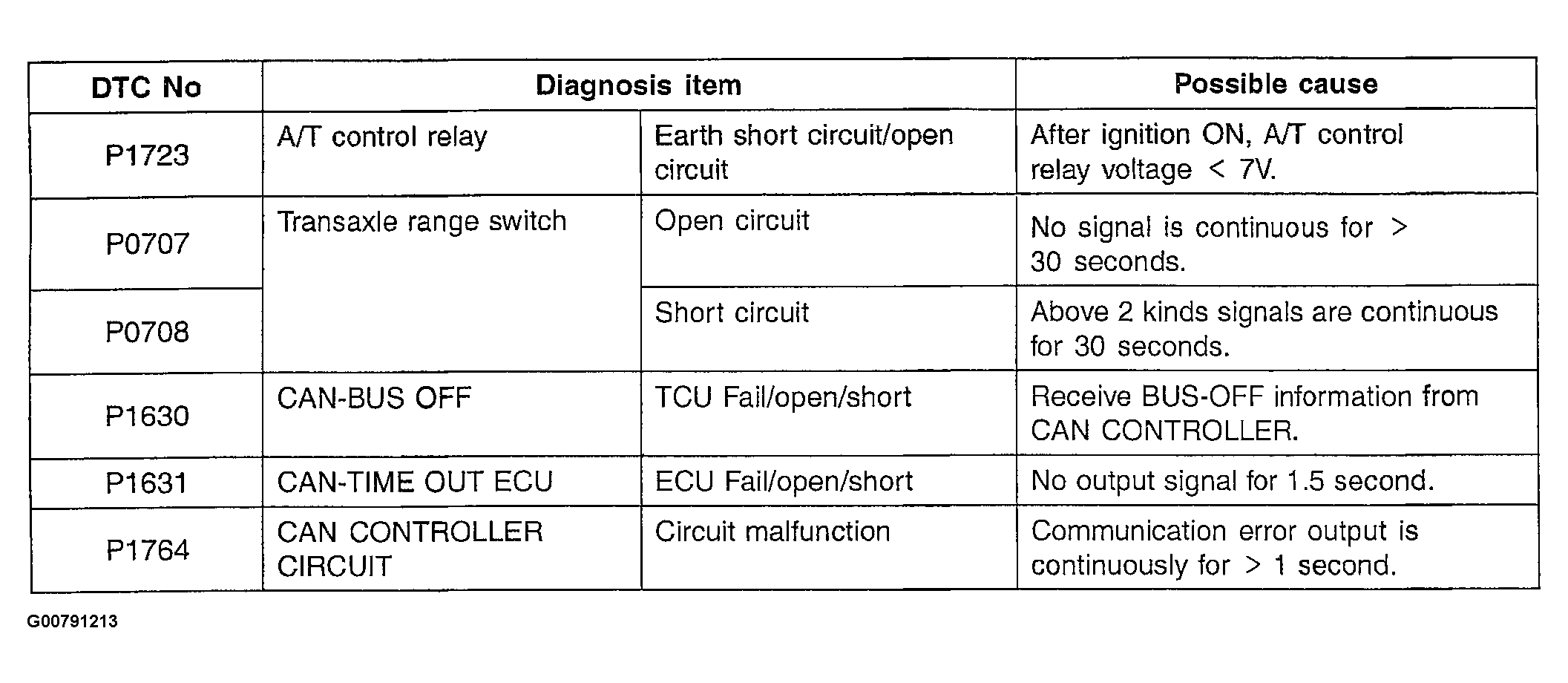

Fig 2: Diagnostic Trouble Code Description Table (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
