Fuel Level Sensor: Service and Repair

FUEL SENDER & FUEL FILTER REPLACEMENT
1. Remove the fuel tank cap to lower the fuel tank's internal pressure.

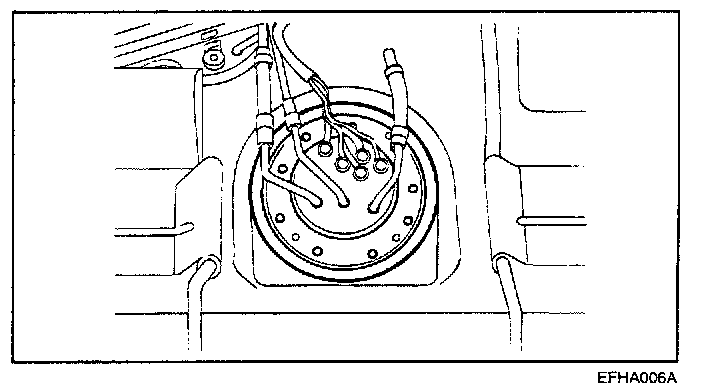

2. Raise the vehicle and disconnect the fuel pump connector, then remove the fuel feed and return line from the fuel pump assembly.




3. Remove the fuel pump installation screws, then remove the fuel pump assembly from the fuel tank.
4. Remove the fuel sender & fuel filter from the fuel pump assembly.
5. Inspect and replace, if necessary.
