MULTIFUNCTION Switch: Components

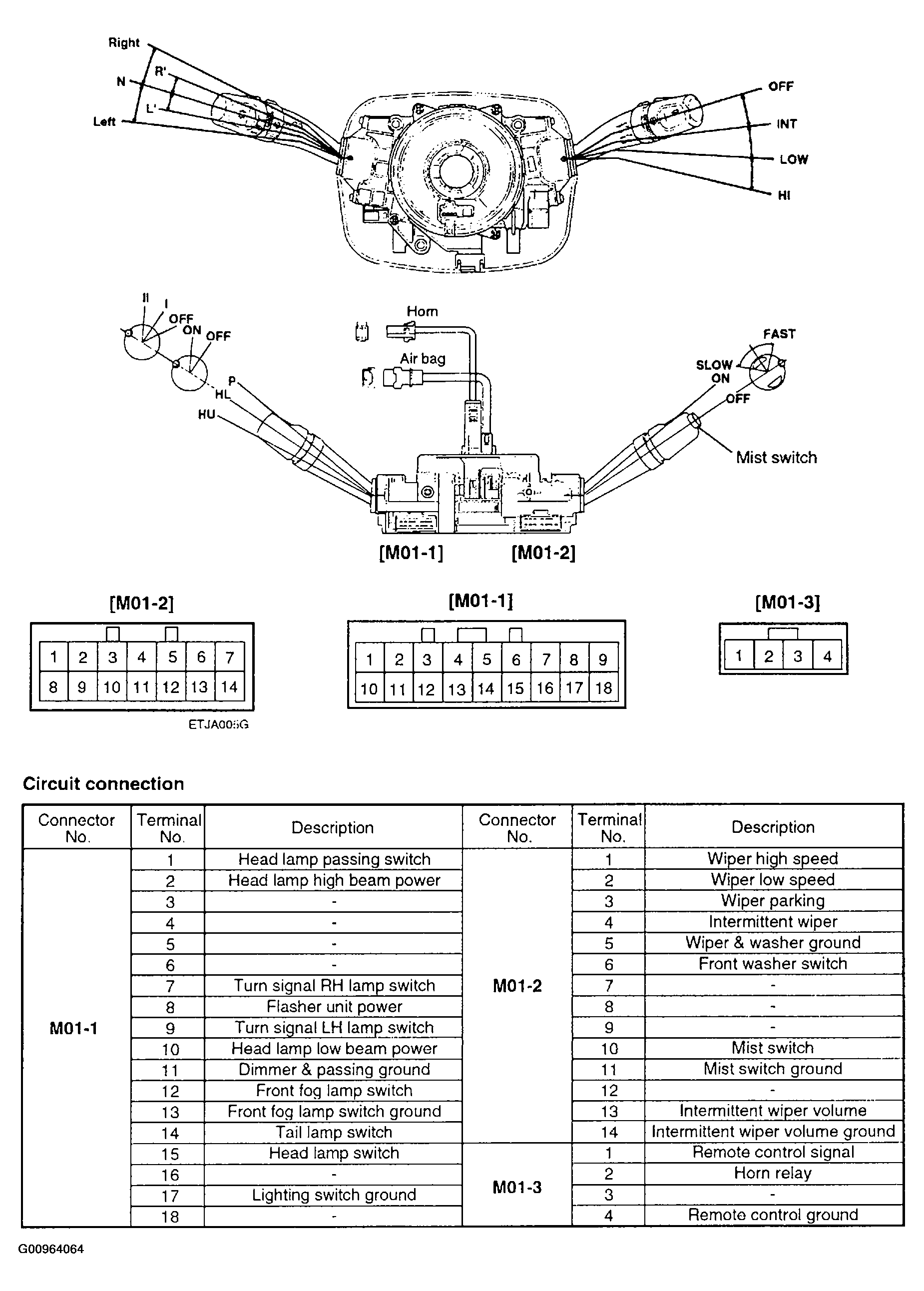

Fig 1: Multifunction Switch Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
