Steering Angle

CHECKING STEERING ANGLE

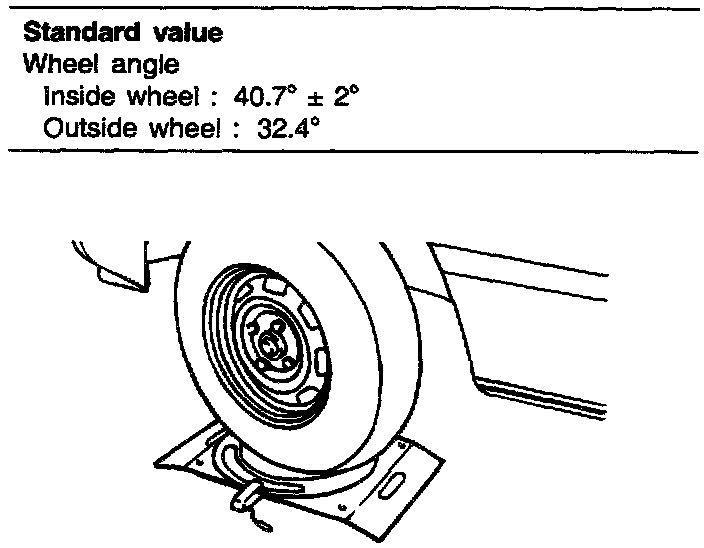

1. Place the front wheel on a turning radius gauge and measure the steering angle.
Standard value
Wheel angle
Inside wheel: 40.7°±2°
Outside wheel: 32.4°
2. If the measured value is not within the standard value. Adjust the linkage.
