Main Relay (Computer/Fuel System): Locations

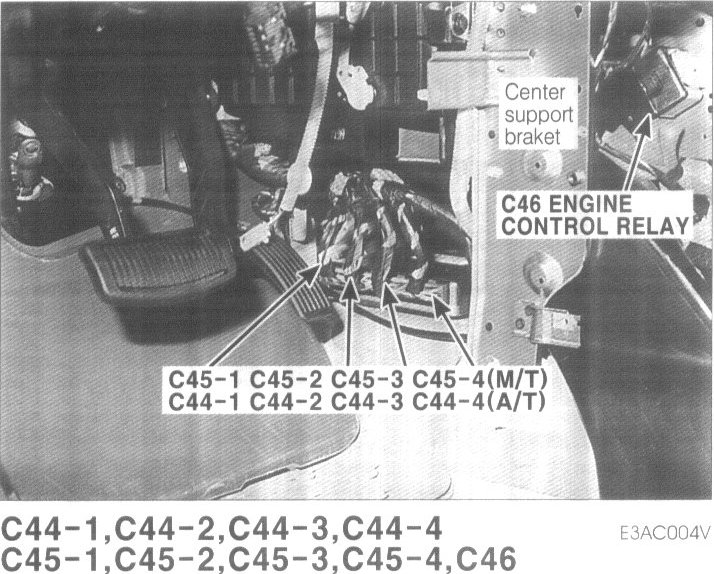

C44-1, C44-2, C44-3, C44-4, C45-1, C45-2, C45-3, C45-4, C46:

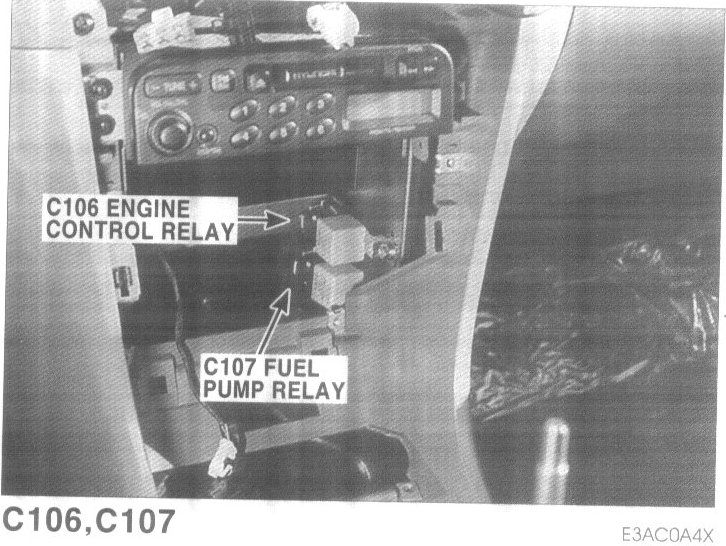

C106, C107:
