Air Bag Control Module

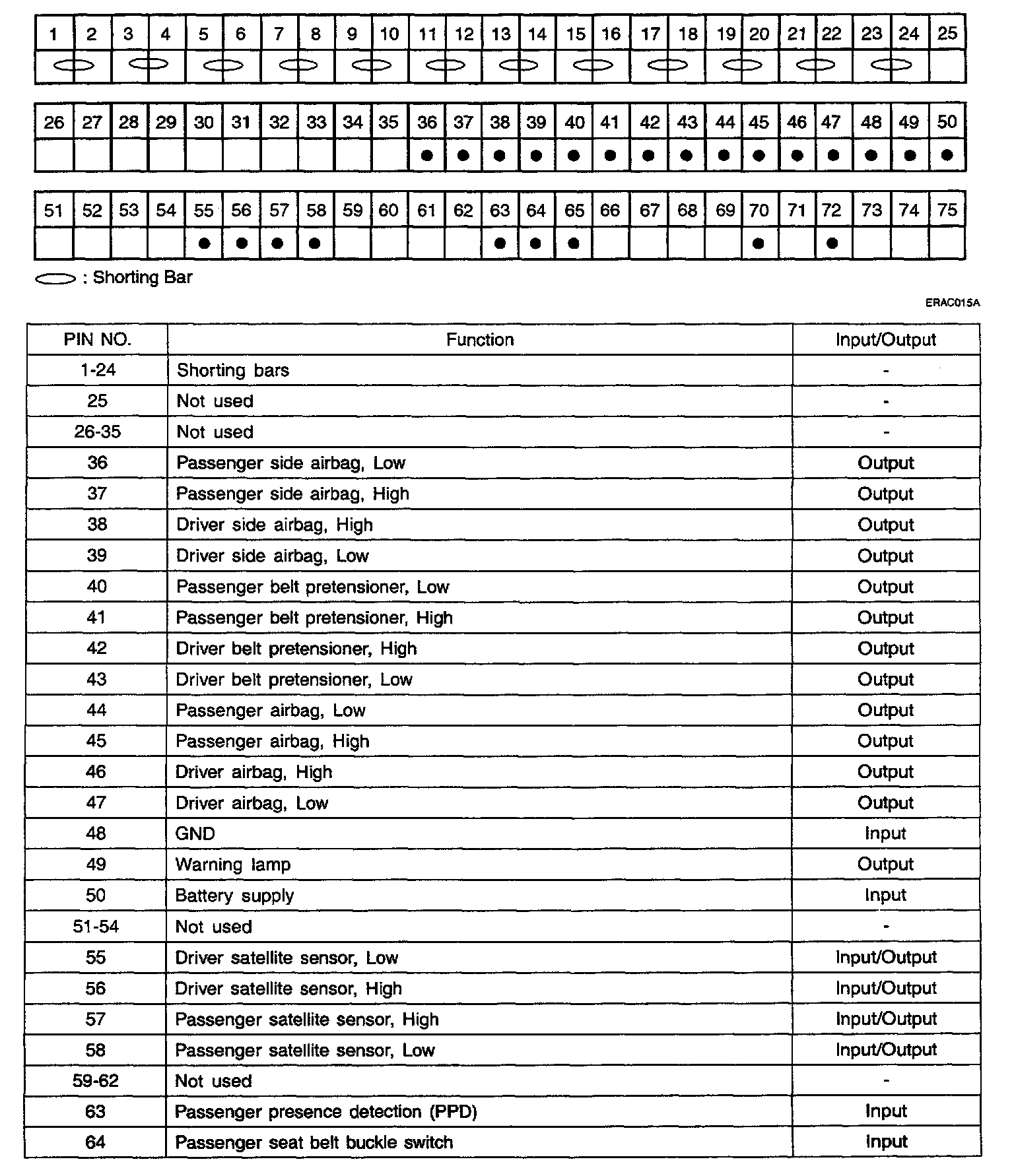

SRSCM Connector DAB+PAB+SAB+BPT (Pin No: 1 - 75):

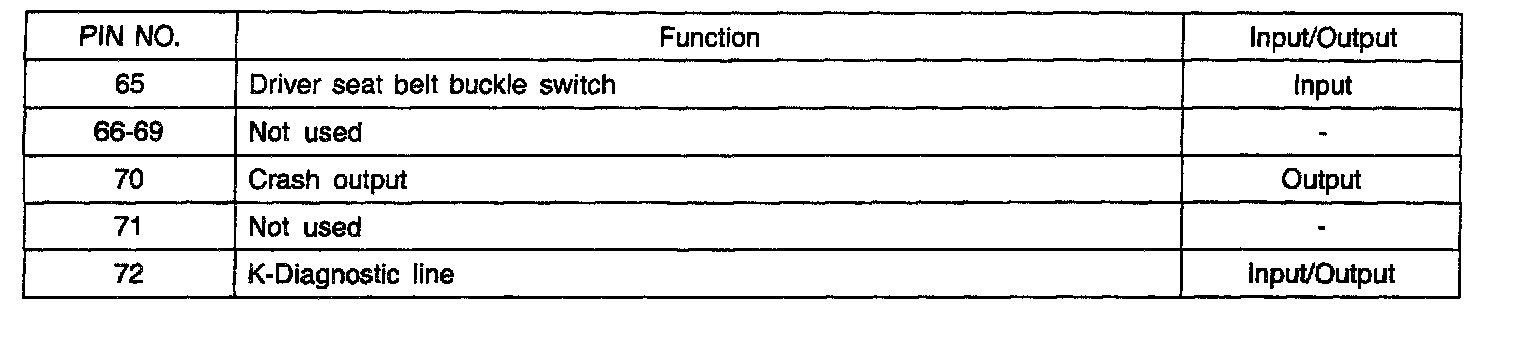

SRSCM Connector DAB+PAB+SAB+BPT (Pin No: 65 - 72):
