Rear Wiper & Washer Switch [M01-1]

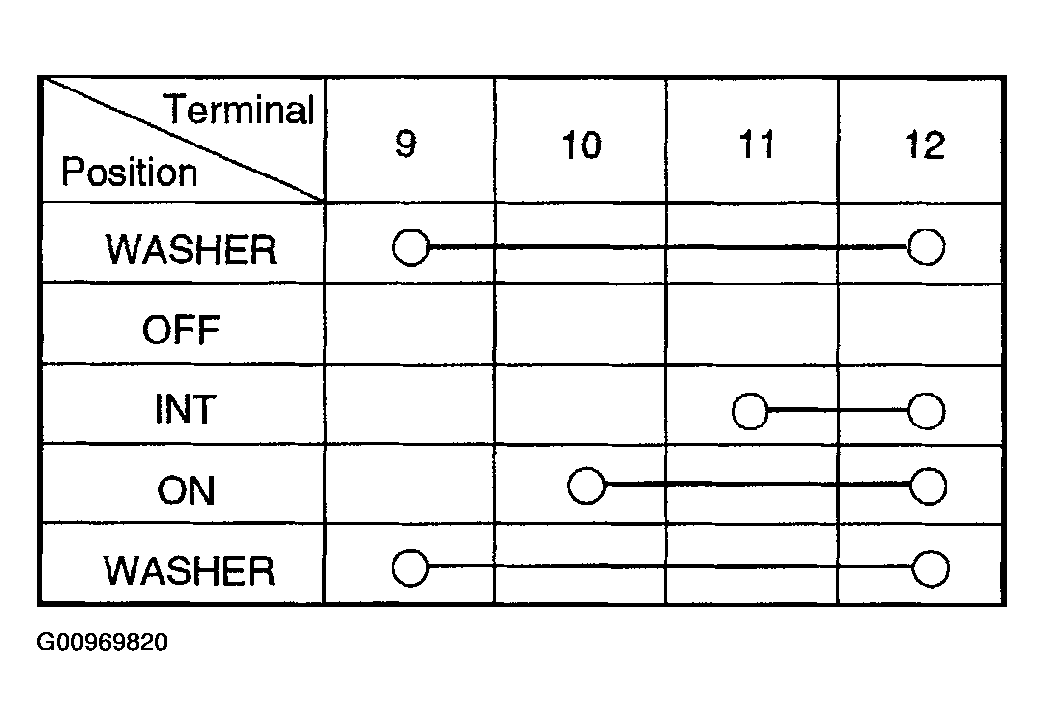

Fig 1: Rear Wiper & Washer Switch Continuity Table
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
