Front Stabilizer Bar: Notes

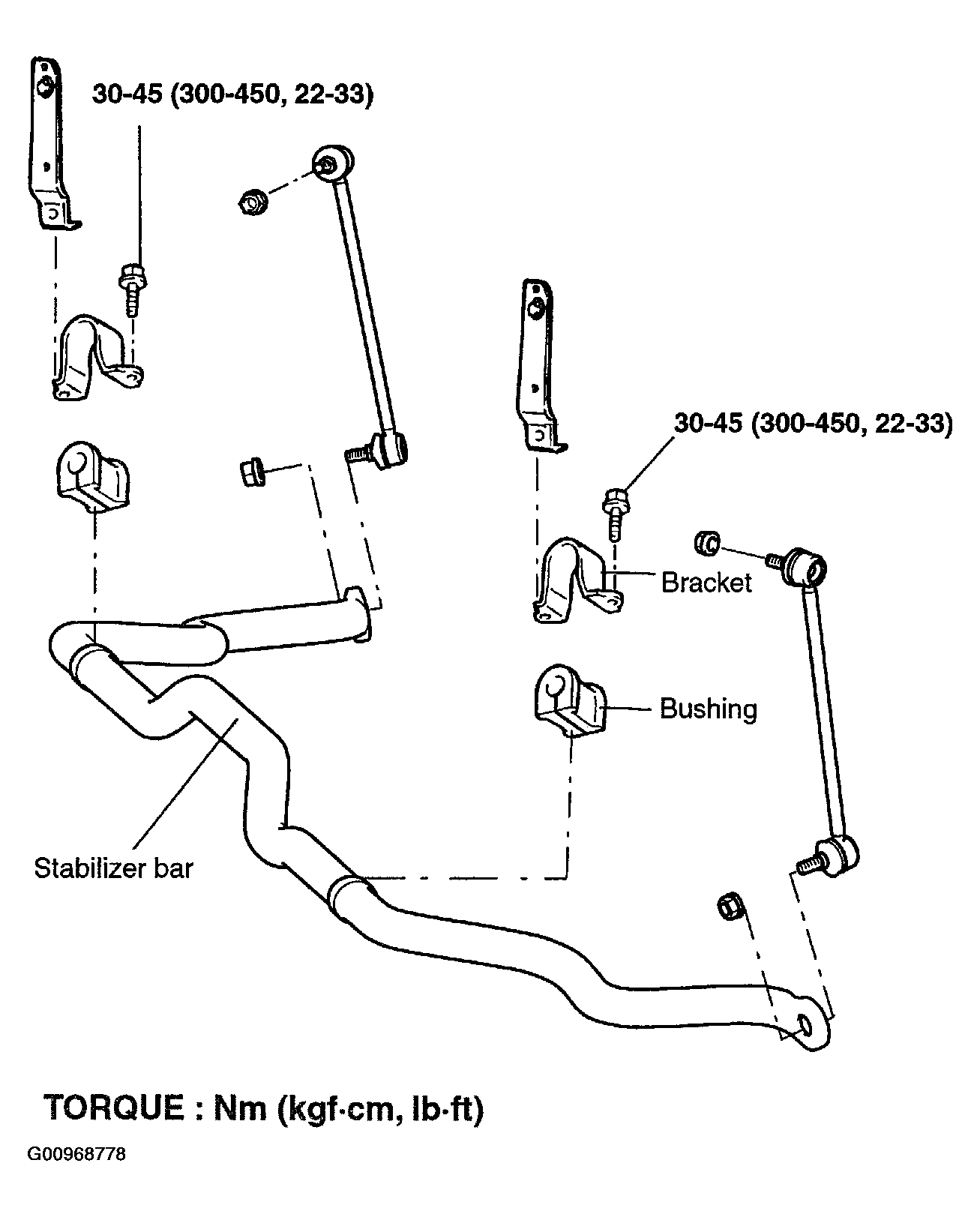

Fig 1: Front Stabilizer Bar Components
G00968778Courtesy of HYUNDAI MOTOR CO.
