Automatic Transaxle Shift Control: Components

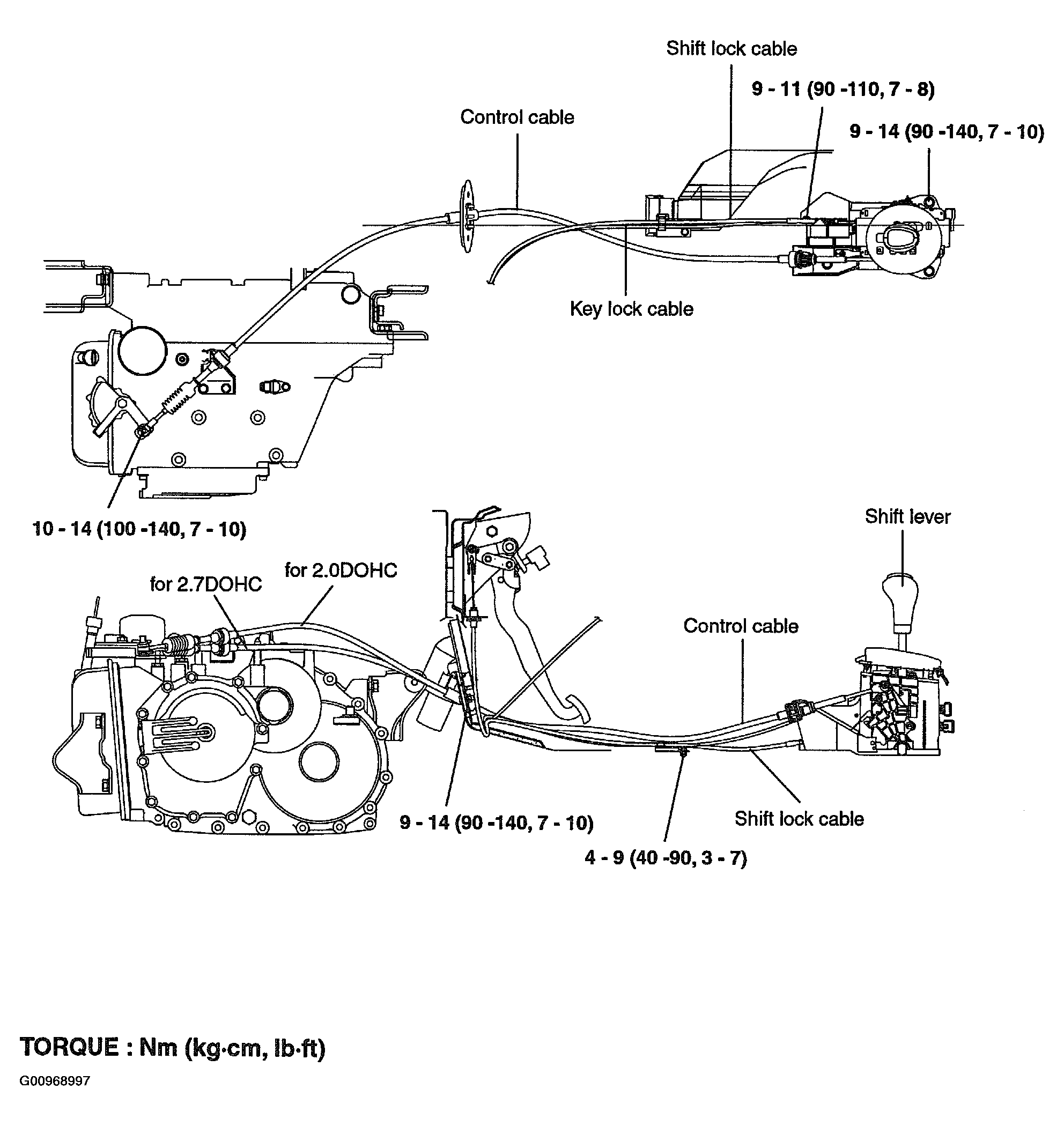

Fig 1: Automatic Transaxle Shift Control Components
G00968997Courtesy of HYUNDAI MOTOR CO.
