Standard Hydraulic Pressure Test

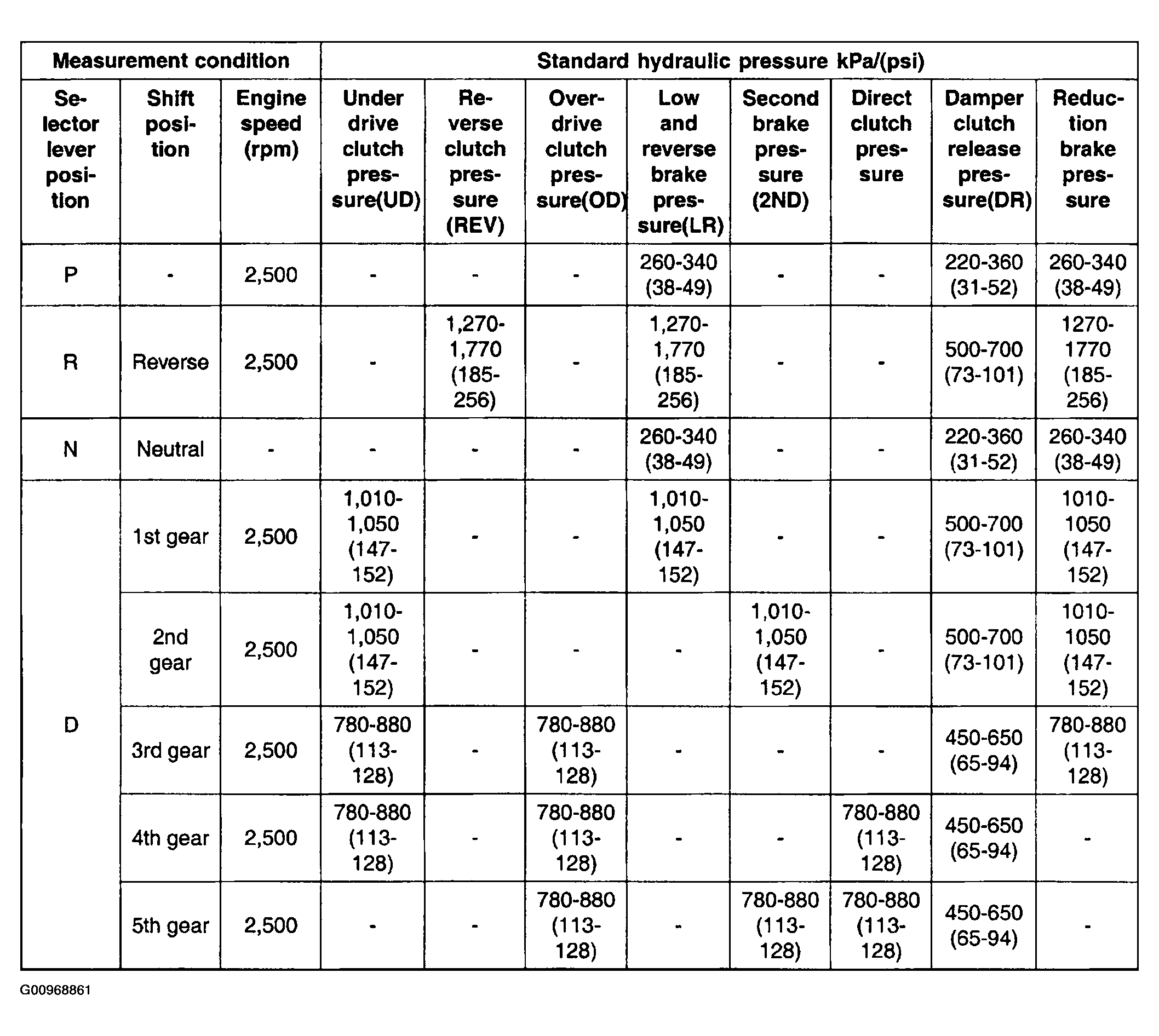

Fig 1: Hydraulic Pressure Test Table
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
