DTC P0720: Output Shaft Sensor System

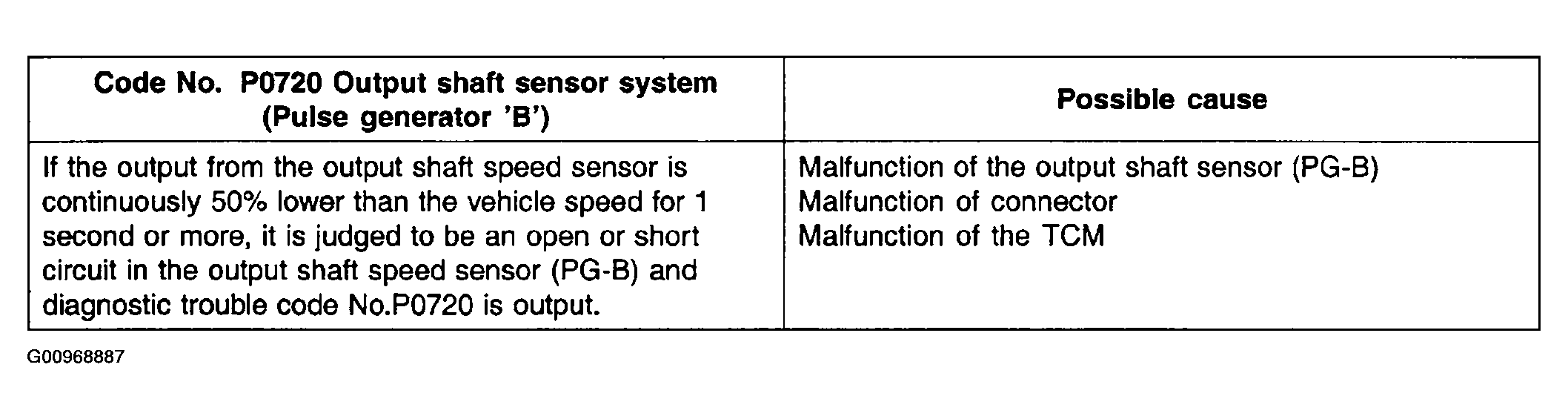

Fig 1: DTC P0720 Detecting Conditions & Probable Causes
G00968887Courtesy of HYUNDAI MOTOR CO.

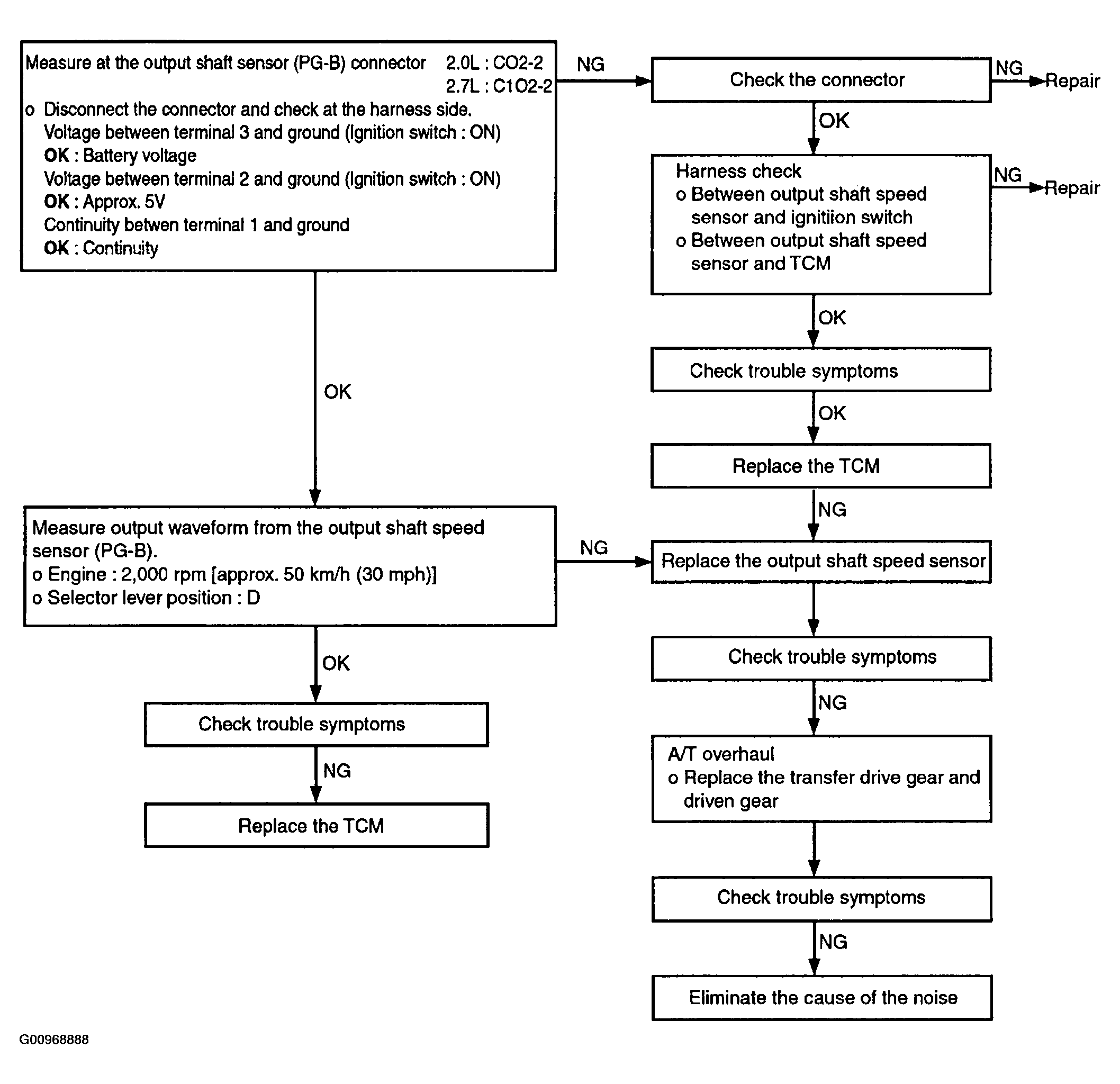

Fig 2: DTC P0720 Diagnostic Flow Chart
G00968888Courtesy of HYUNDAI MOTOR CO.

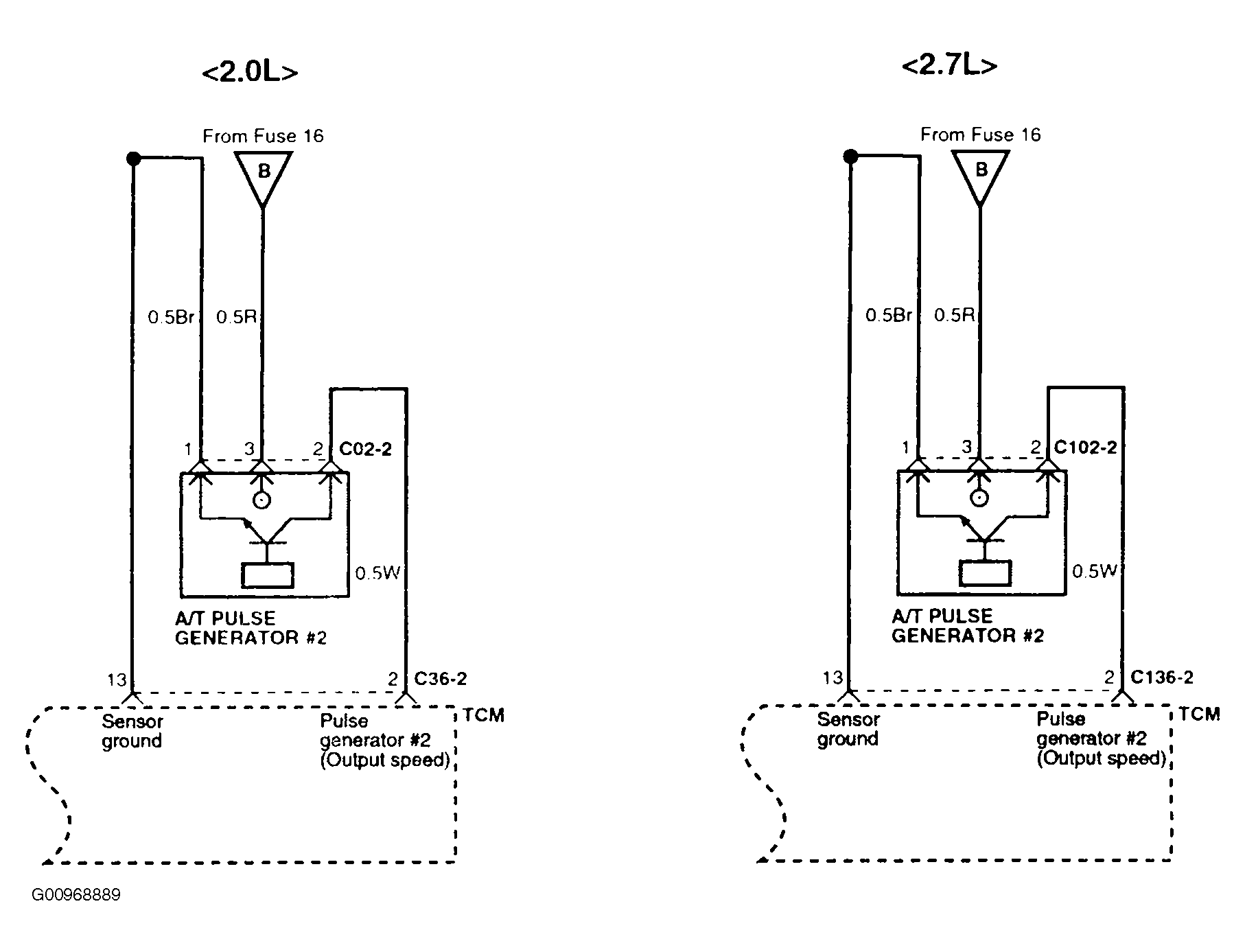

Fig 3: A/T Pulse Generator #2 Circuit
G00968889Courtesy of HYUNDAI MOTOR CO.
