Inspection Procedure 2

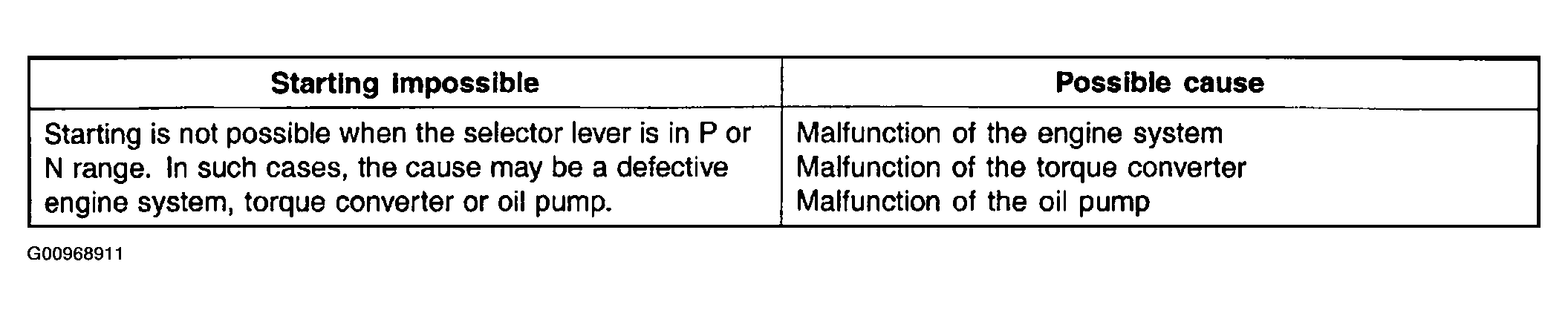

Fig 1: No Start Possible Causes Table
G00968911Courtesy of HYUNDAI MOTOR CO.

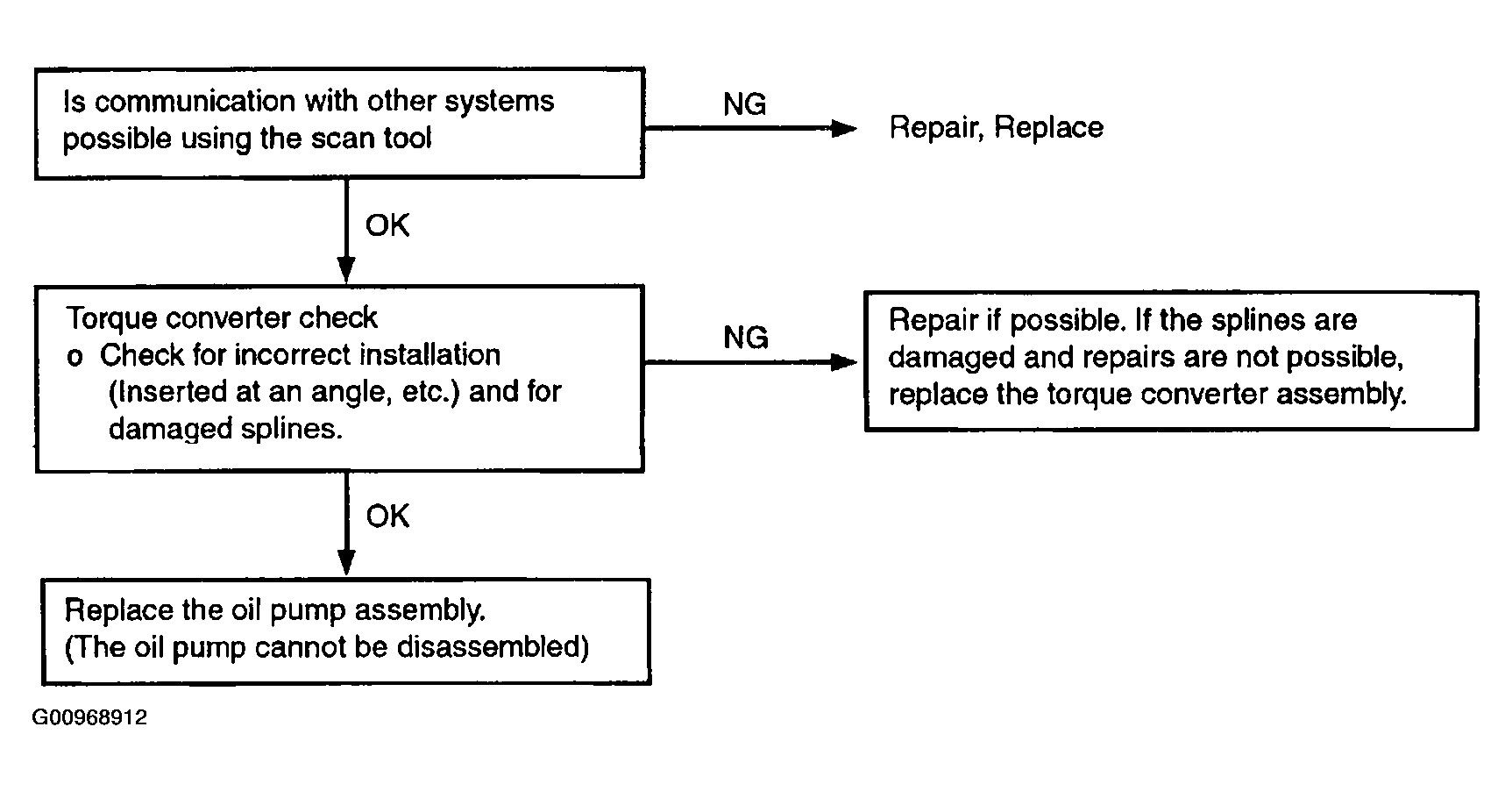

Fig 2: No Start Diagnostic Flow Chart
G00968912Courtesy of HYUNDAI MOTOR CO.
