Removal & Installation

  1. Disconnect the negative battery terminal.
  2. Remove the air bag module.
    CAUTION: The SRS system is designed to retain enough power to deploy air bag for about 30 seconds even after battery has been disconnected, so serious injury may result from unintended air bag deployment if service is done on the SRS system immediately after battery cable is disconnected.
  3. Loosen the tapping screw and lift up horn pad and remove it.
  4. Remove the lock nut and the washer.
  5. Pulling the dynamic damper forward, lift it up and remove it.

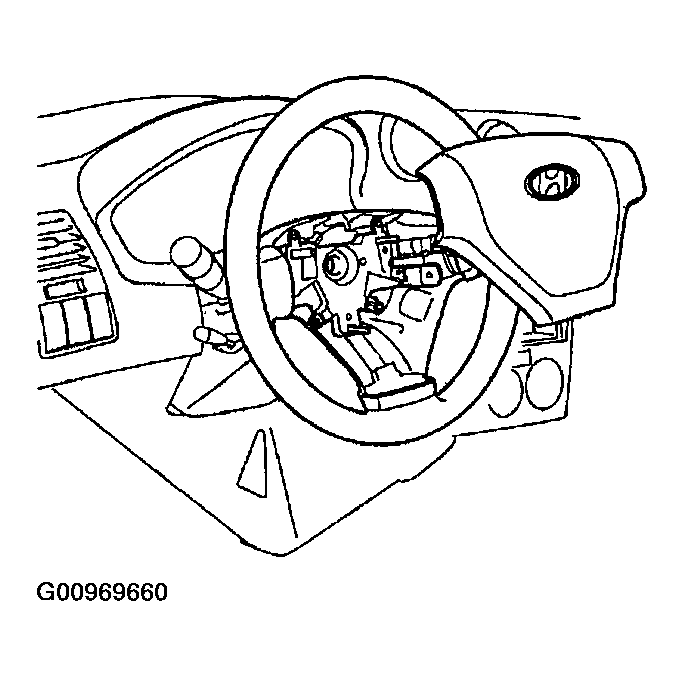

    Fig 1: Removing Dynamic Damper
    G00969660Courtesy of HYUNDAI MOTOR CO.
  6. Install the special tool (09561-11001) and remove the steering wheel.
    CAUTION: Do not hammer on the steering wheel to remove it.

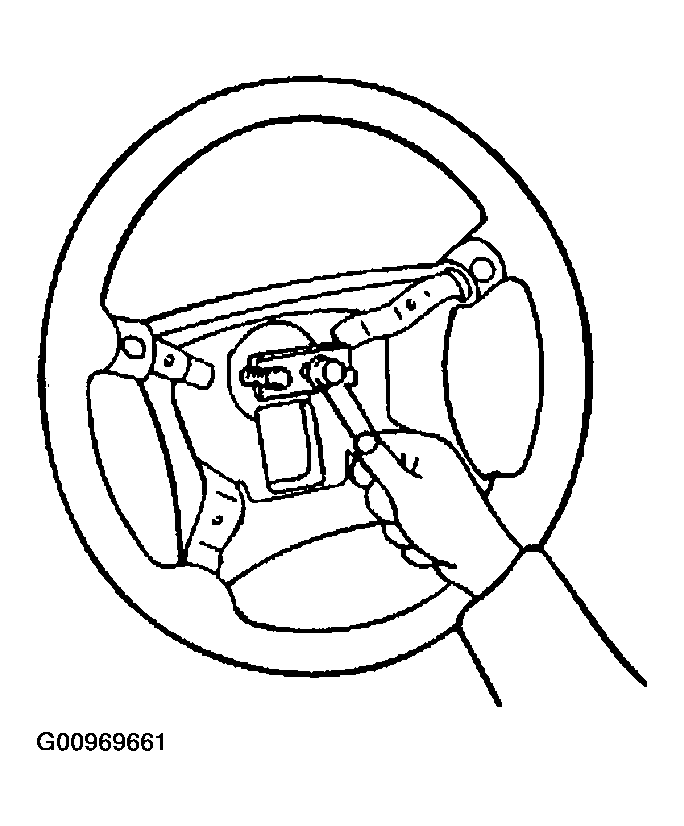

    Fig 2: Removing Steering Wheel
    G00969661Courtesy of HYUNDAI MOTOR CO.
  7. Remove the steering column lower and upper shrouds.

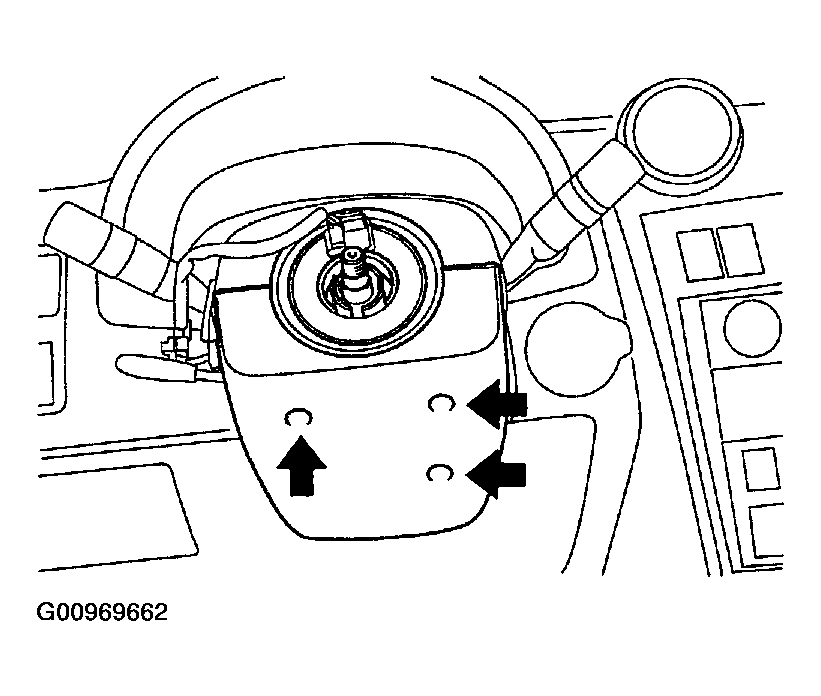

    Fig 3: Identifying Steering Column Shroud Screws
    G00969662Courtesy of HYUNDAI MOTOR CO.
  8. Remove the lower cover.

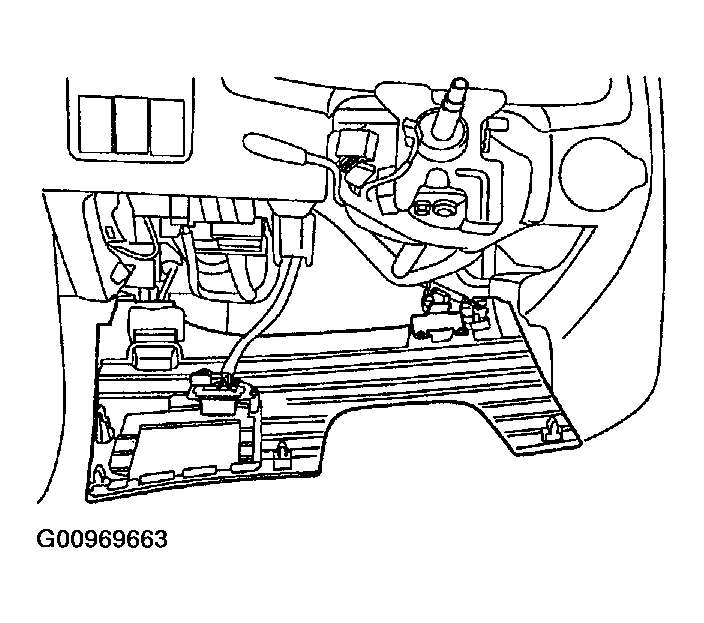

    Fig 4: Removing Lower Cover
    G00969663Courtesy of HYUNDAI MOTOR CO.
  9. Disconnect the connectors and remove the multifunction switch.
  10. Remove the mounting bolts and separate ignition switch from steering column.
