Removal And Installation

  1. Remove the front seat.
  2. Remove the console upper cover.

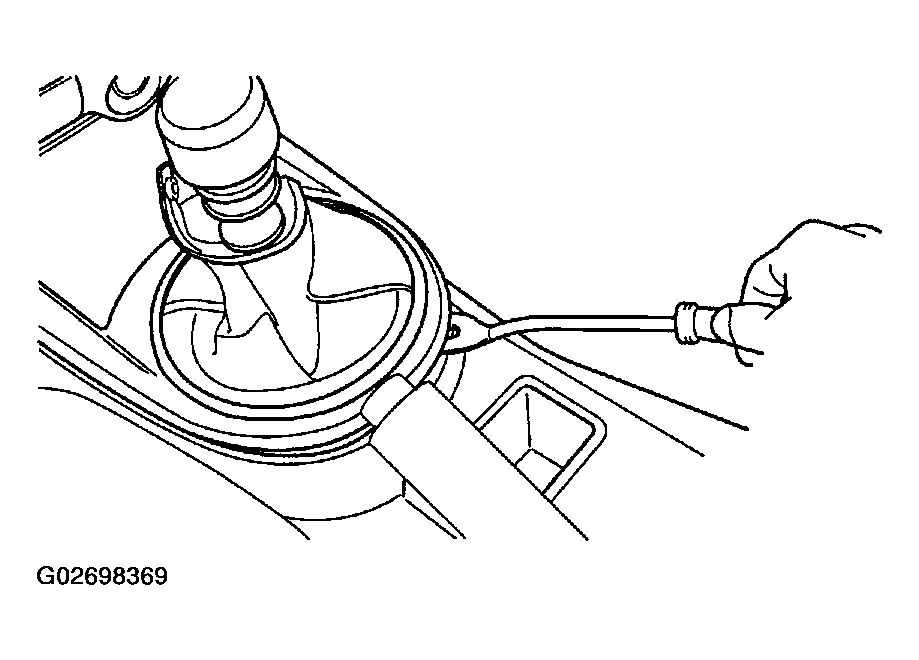

    Fig 1: Removing Console Upper Cover
    G02698369Courtesy of HYUNDAI MOTOR CO.
  3. Remove the console front mounting screws.

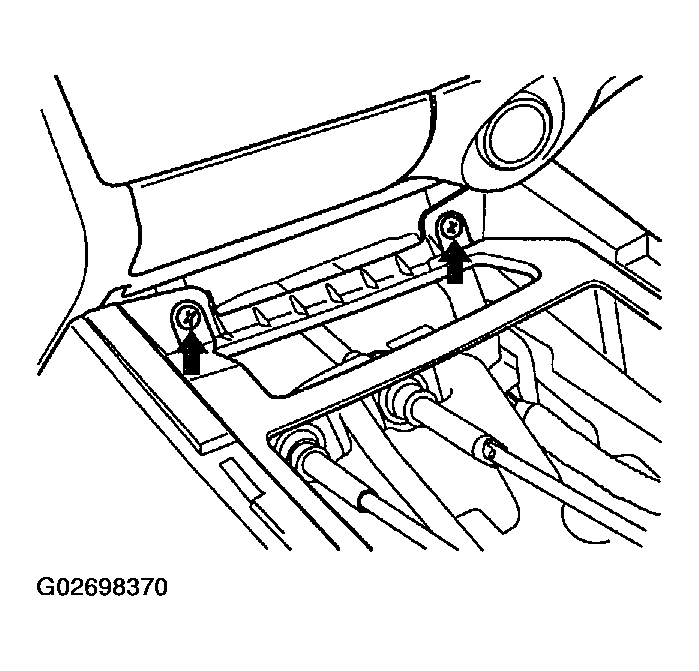

    Fig 2: Removing Console Front Mounting Screws
    G02698370Courtesy of HYUNDAI MOTOR CO.
  4. Remove the floor console.

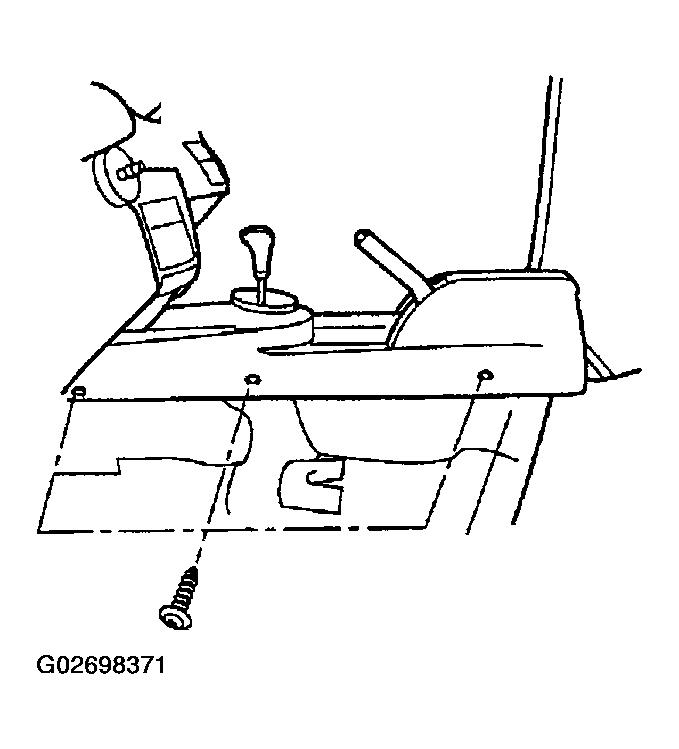

    Fig 3: Removing Floor Console
    G02698371Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
