Removal And Installation

Disconnect the negative battery terminal.
Disconnect the wire connectors from the front seats and then remove the front seats.

Fig 1: Removing Front Seats
Courtesy of HYUNDAI MOTOR CO.

CAUTION: Take care not to scratch the trim when removing the fronts seats.
Remove the cowl side trim, front pillar.

Fig 2: Removing Cowl Side Trim Screws
Courtesy of HYUNDAI MOTOR CO.

Fig 3: Removing Cowl Side Trim
Courtesy of HYUNDAI MOTOR CO.
Remove the console assembly.

Fig 4: Removing Console
Courtesy of HYUNDAI MOTOR CO.
Remove the air bag module.

Fig 5: Removing Air Bag Module
Courtesy of HYUNDAI MOTOR CO.

CAUTION: For instructions on the removal of the air bag module and clock spring, refer to DRIVER-SIDE AIR BAG MODULE & CLOCKSPRING .
The steering wheel mounting nut, and remove the steering wheel.

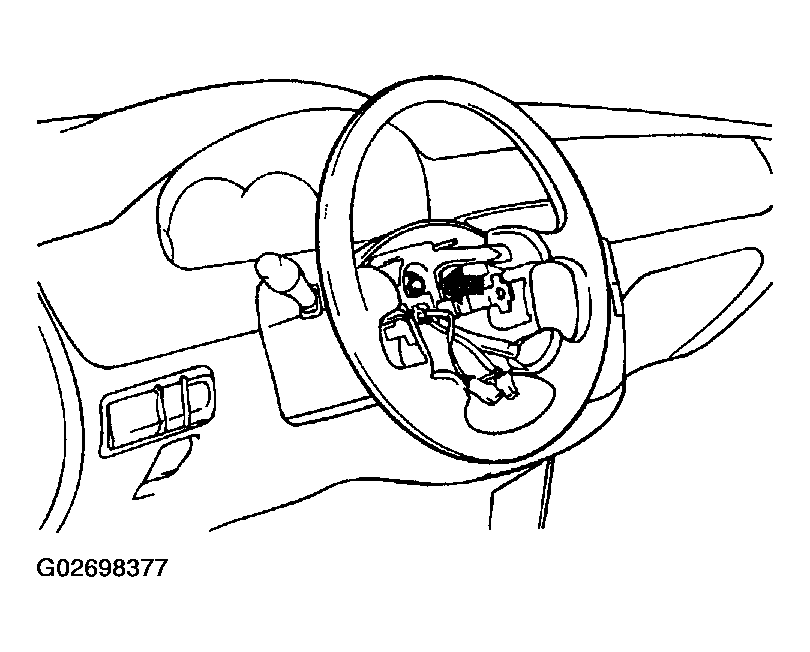

Fig 6: Identifying Steering Wheel Mounting Nut
Courtesy of HYUNDAI MOTOR CO.

Tightening torque:
1. 40-50 Nm (400-500 kg.cm, 29.5-36.9 lb.ft)
Remove the 3 screws holding the steering column lower shroud and then remove the steering column lower and upper shroud.

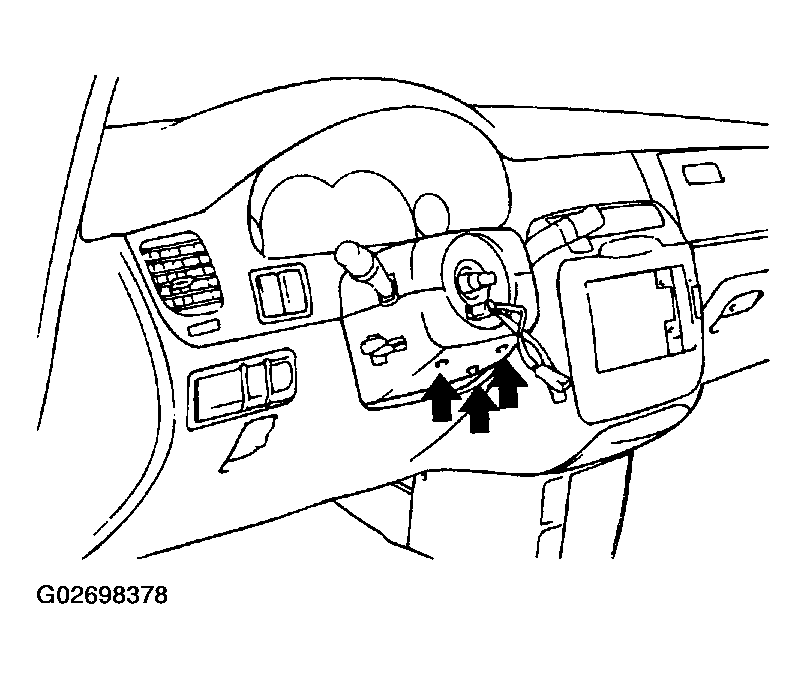

Fig 7: Removing Steering Column Lower Shroud Screws
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connectors and remove the multifunction switch (3 screws).

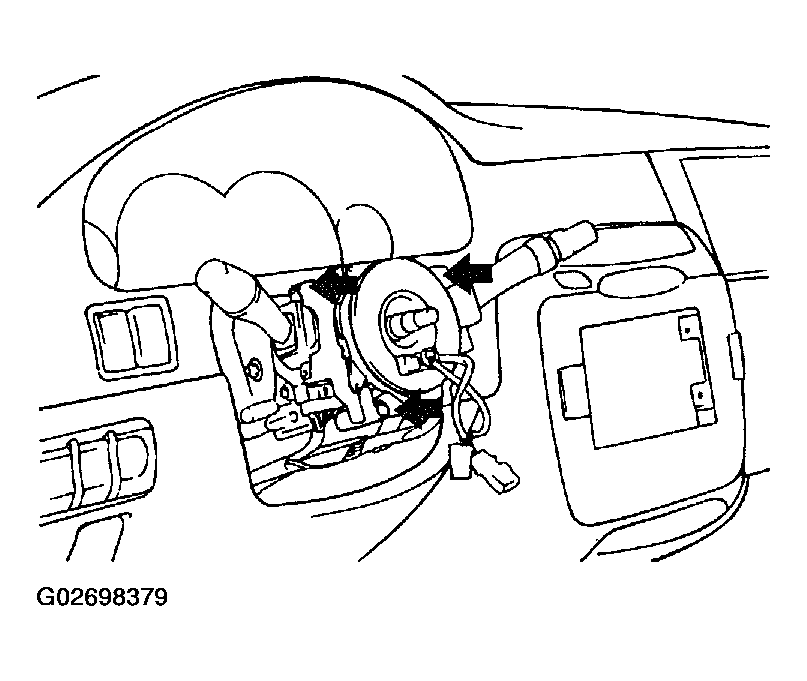

Fig 8: Identifying Multifunction Switch Screws
Courtesy of HYUNDAI MOTOR CO.
Disconnect the hood release cable and connectors from the cover. After removing the 2 screws, remove the crash pad under cover of the passenger compartment.

Fig 9: Removing Lower Crash Pad Cover
Courtesy of HYUNDAI MOTOR CO.
After loosening the 2 screws, remove the cluster housing.

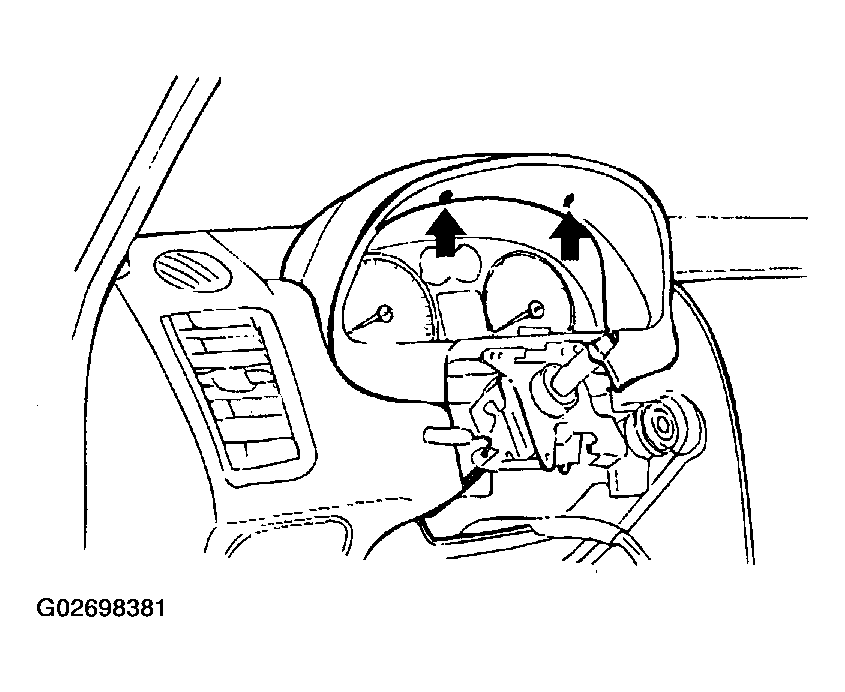

Fig 10: Removing Cluster Housing
Courtesy of HYUNDAI MOTOR CO.
After loosening the 4 screws, remove the cluster.

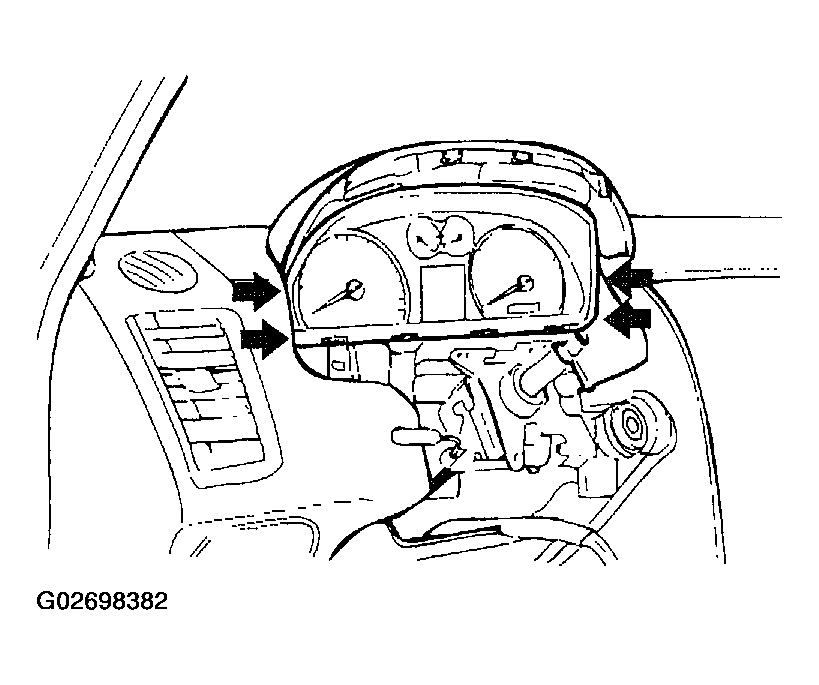

Fig 11: Removing Cluster
Courtesy of HYUNDAI MOTOR CO.
After removing the center fascia panel with a screwdriver, disconnect the switch connectors.

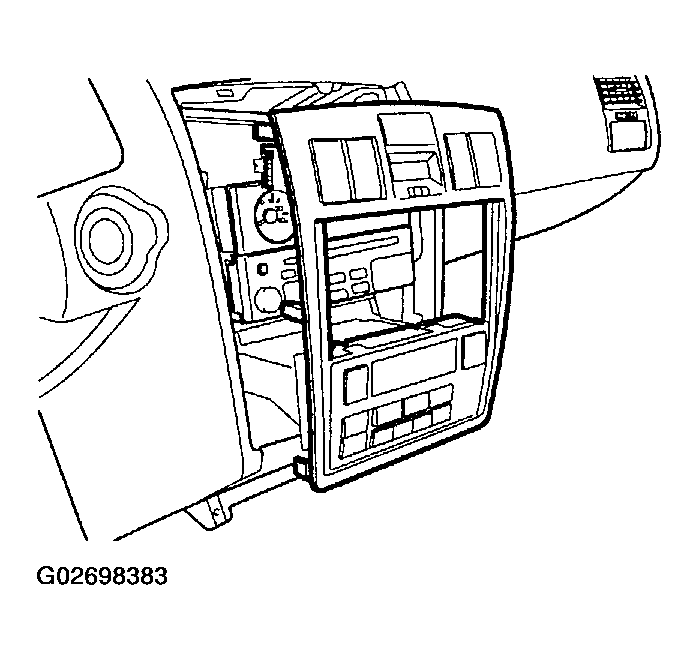

Fig 12: Removing Center Fascia Panel
Courtesy of HYUNDAI MOTOR CO.
Remove the audio mounting screws and the gauge mounting screws to remove the audio assembly.

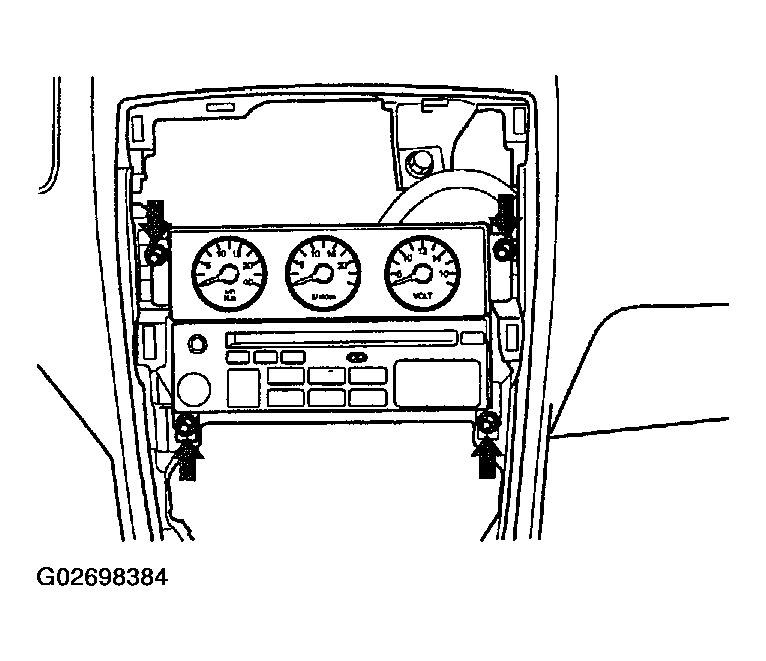

Fig 13: Removing Audio Assembly
Courtesy of HYUNDAI MOTOR CO.
After loosening the 6 mounting screws shown in the illustration, remove the glove box.

Fig 14: Removing Glove Box
Courtesy of HYUNDAI MOTOR CO.
Disconnect the glove box lamp connector and then remove the lamp.

Fig 15: Removing Glove Box Lamp
Courtesy of HYUNDAI MOTOR CO.
Remove the main crash pad mounting bolts.

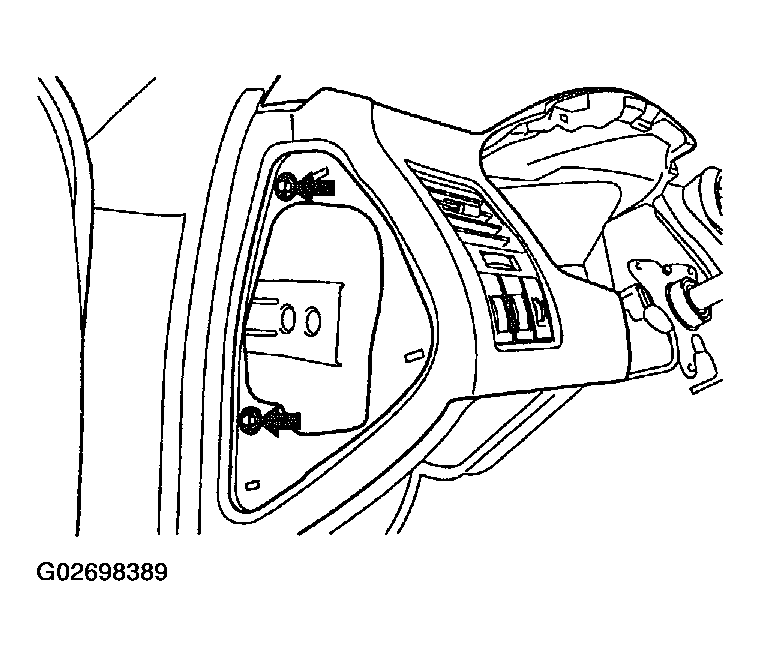

Fig 16: Identifying Main Crash Pad Mounting Bolts (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

Fig 17: Identifying Main Crash Pad Mounting Bolts (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

Fig 18: Identifying Main Crash Pad Mounting Bolts (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Remove the crash pad.

Fig 19: View Of Crash Pad
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal and connect all connectors securely.
