Tailgate Glass: Removal

  1. To remove the tailgate glass, first remove the following parts:
    1. Rear window defogger wire connector.

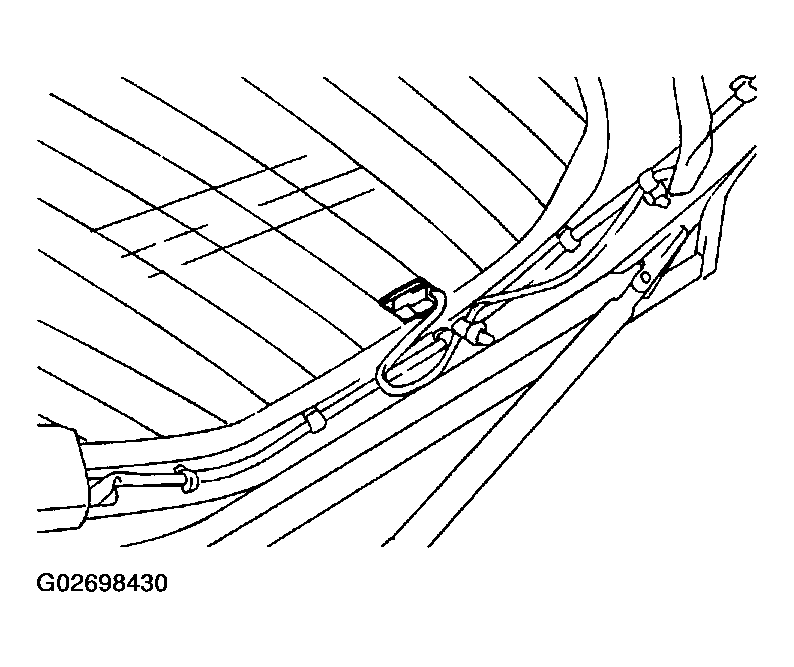

      Fig 1: Identifying Rear Window Defogger Wire Connector
      G02698430Courtesy of HYUNDAI MOTOR CO.
    2. Tailgate trims.
    3. Rear wiper and wiper motor.
  2. Remove the tailgate glass in the same manner as the windshield glass.
