Anti-Lock Braking System Control Module: HECU

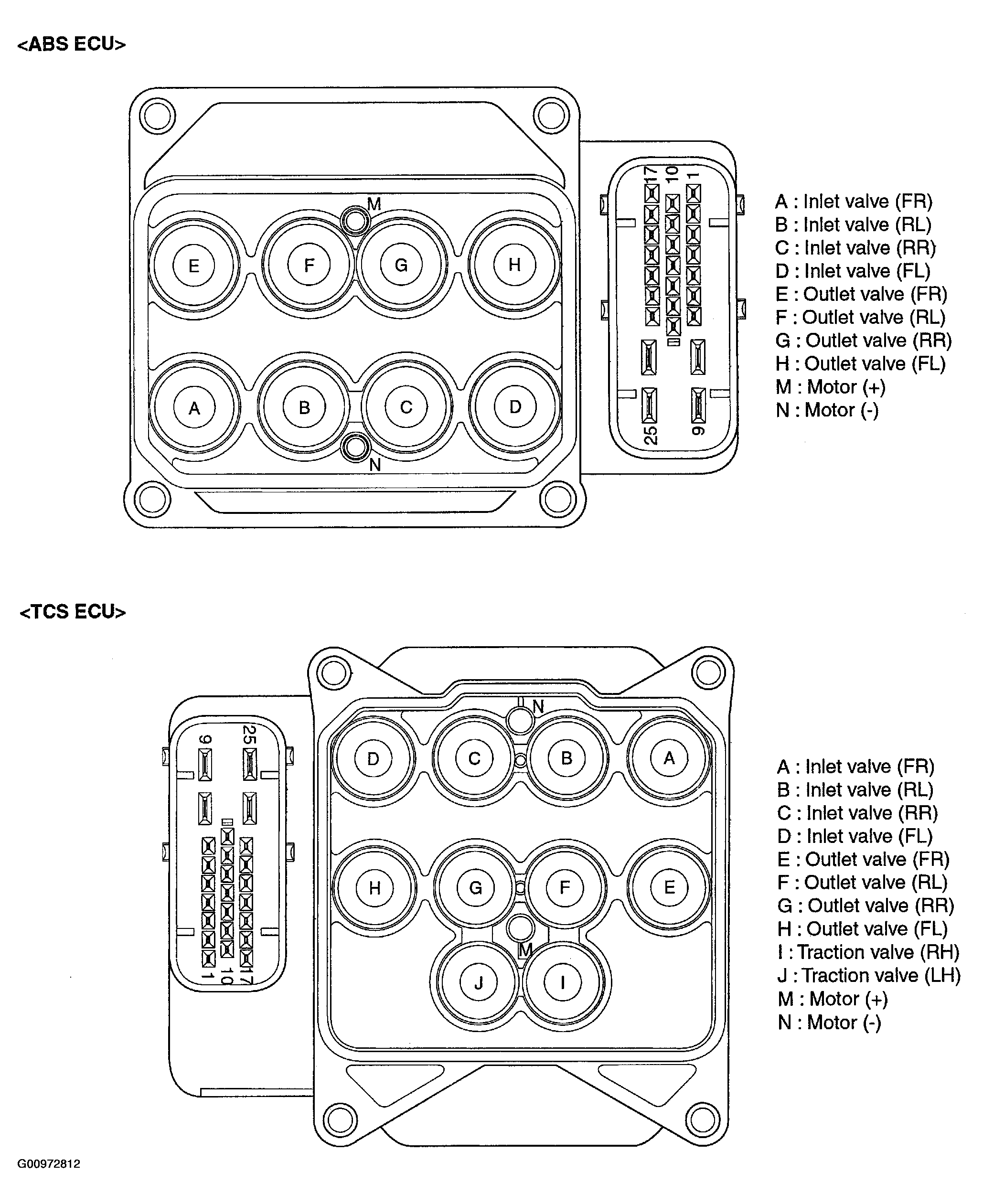

Fig 1: Identifying ABS & TCS HECU
G00972812Courtesy of HYUNDAI MOTOR CO.
