Elements In Use In Each Gear

WARNING: This page is about a different variant/trim than selected.

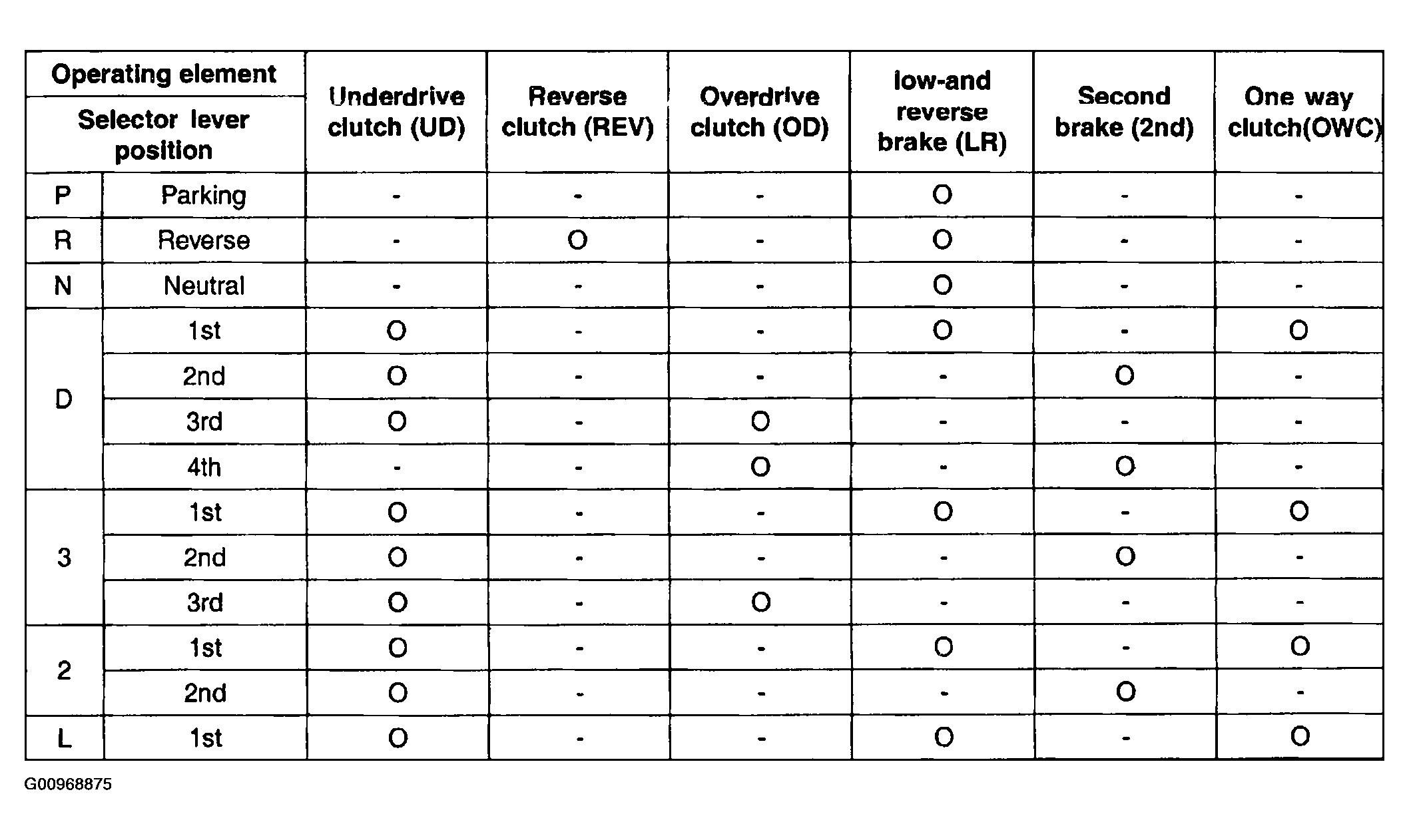

Fig 1: Elements In Use Chart
G00968875Courtesy of HYUNDAI MOTOR CO.
