DTC P1702-P1704: Throttle Position Sensor System

WARNING: This page is about a different variant/trim than selected.

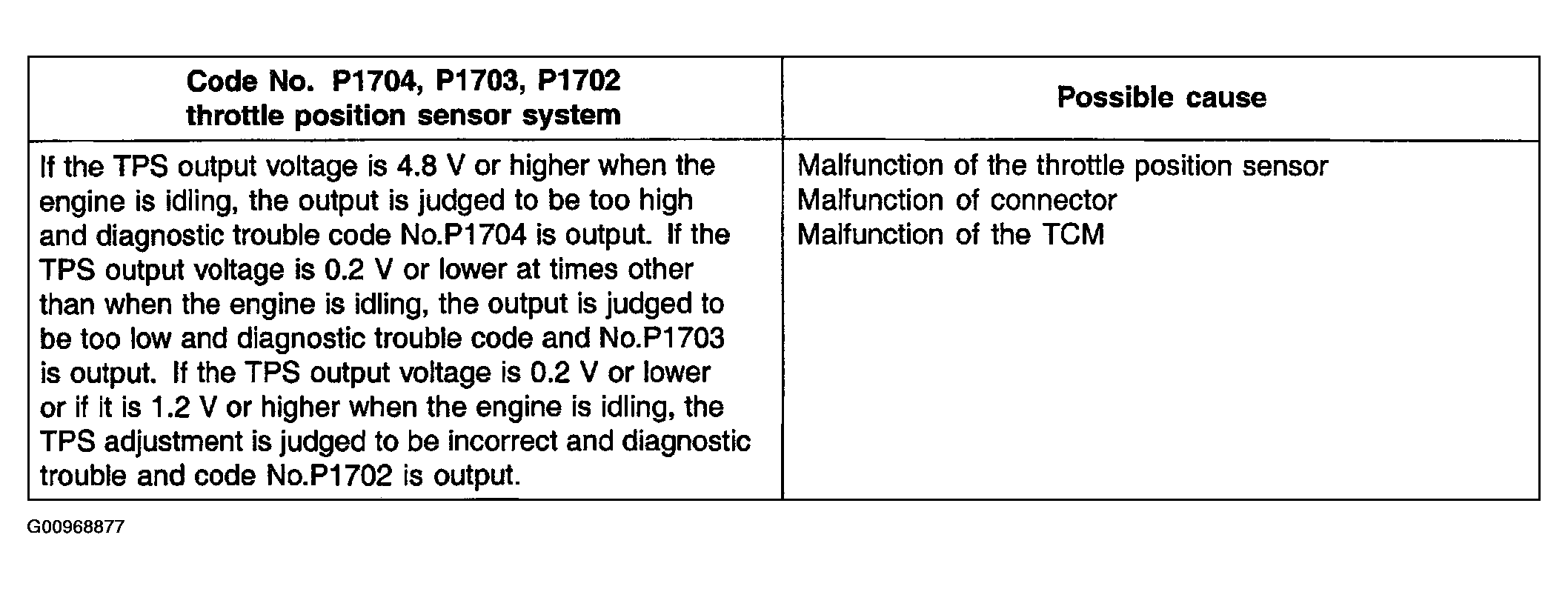

Fig 1: DTC P1702-P1704 Detecting Conditions & Probable Causes
G00968877Courtesy of HYUNDAI MOTOR CO.

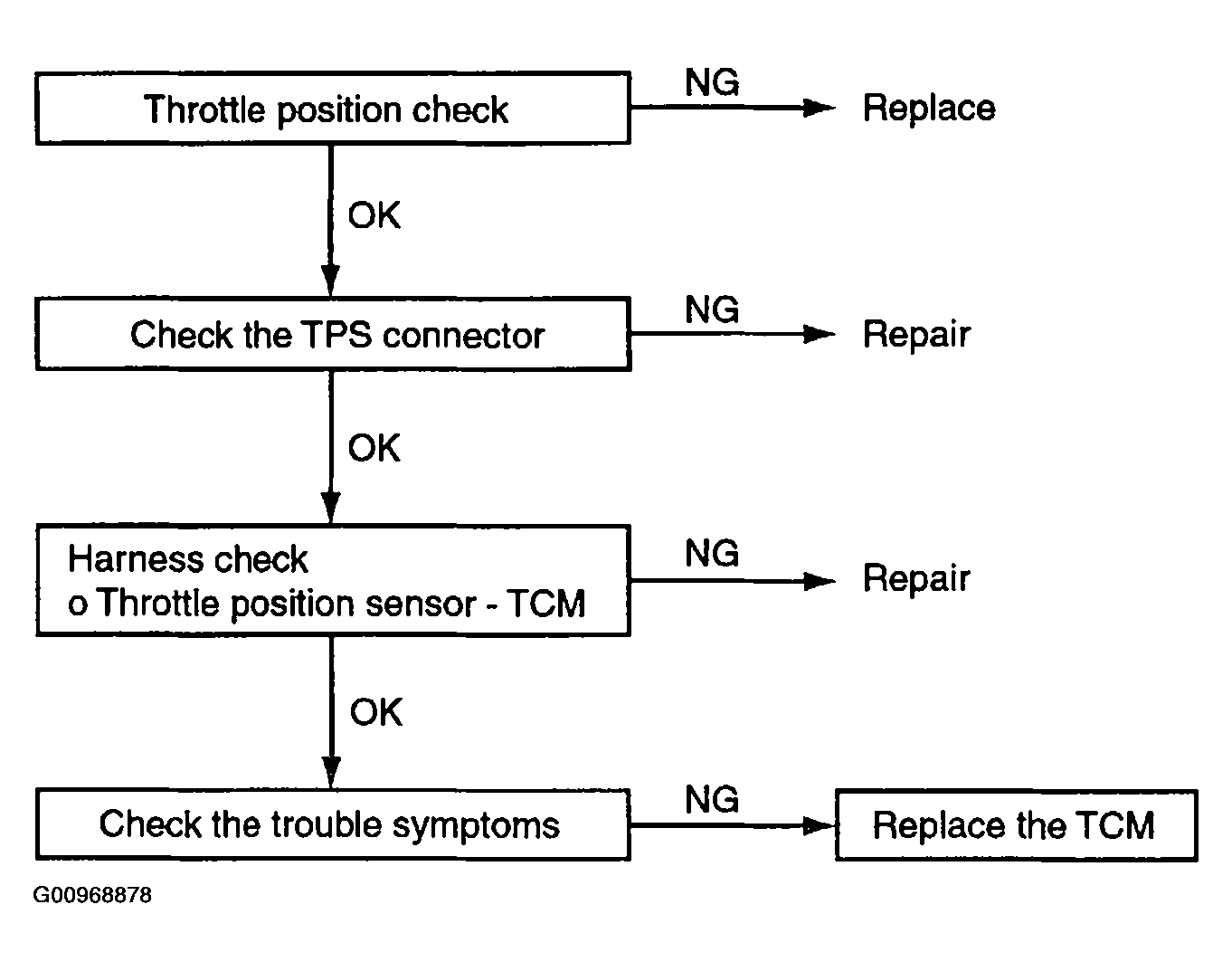

Fig 2: DTC P1702-P1704 Diagnostic Flow Chart
G00968878Courtesy of HYUNDAI MOTOR CO.
