DTC P1723: A/T Control Relay System

WARNING: This page is about a different variant/trim than selected.

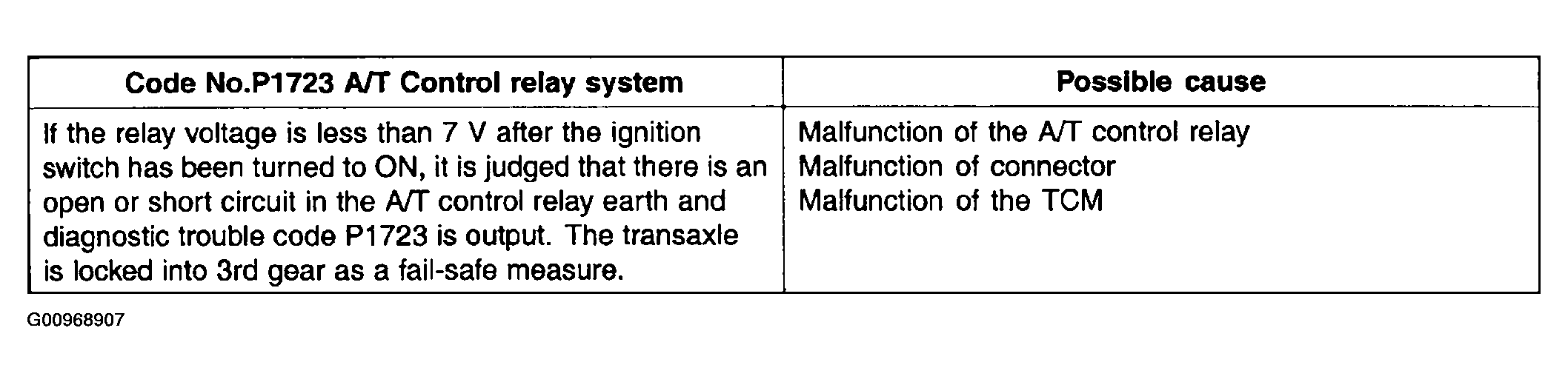

Fig 1: DTC P1723 Detecting Conditions & Probable Causes
G00968907Courtesy of HYUNDAI MOTOR CO.

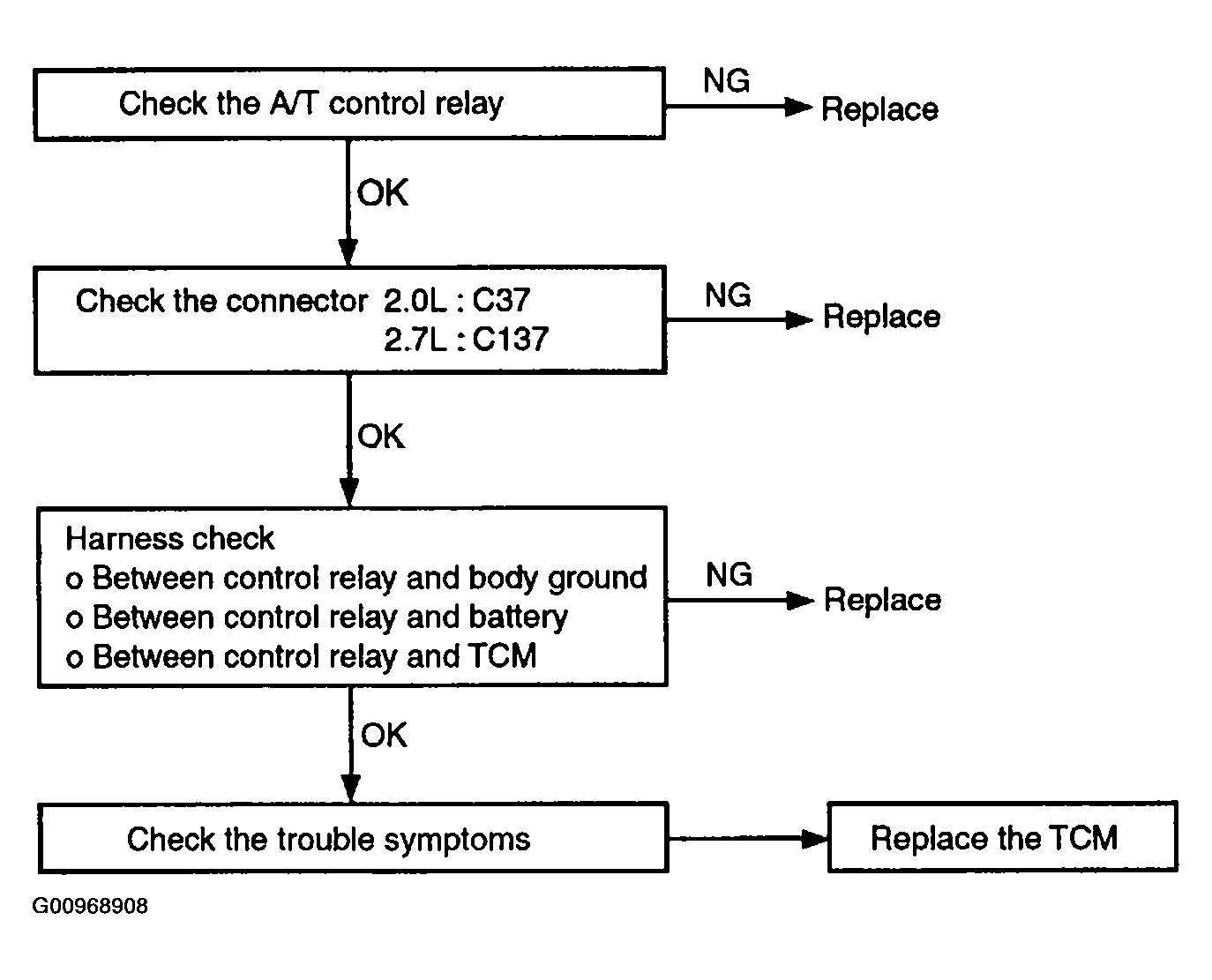

Fig 2: DTC P1723 Diagnostic Flow Chart
G00968908Courtesy of HYUNDAI MOTOR CO.
