Wheel Alignment Specifications & Adjustment Procedures: General: Specifications: Notes

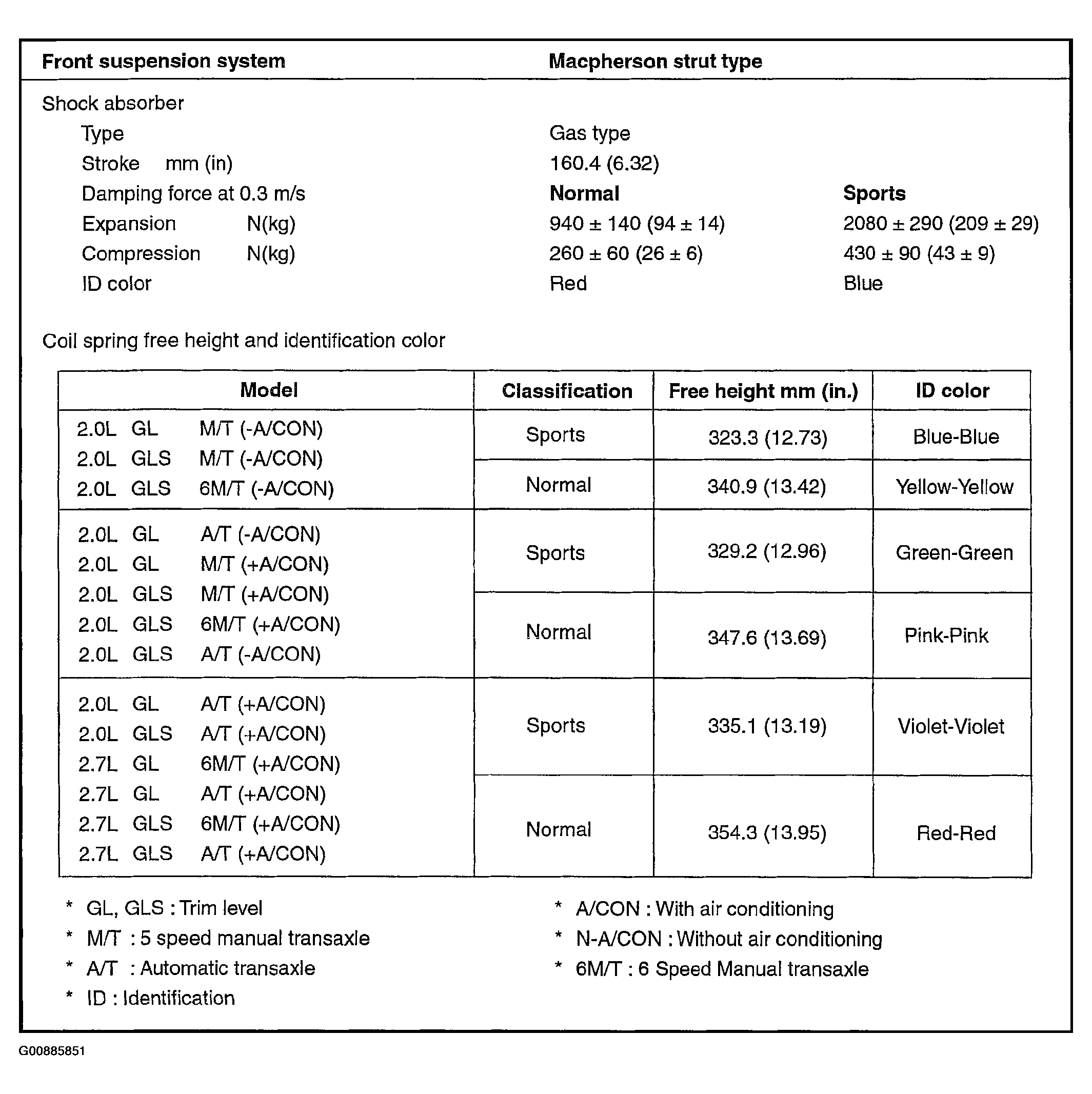

Fig 1: Front Suspension Specification
Courtesy of HYUNDAI MOTOR CO.

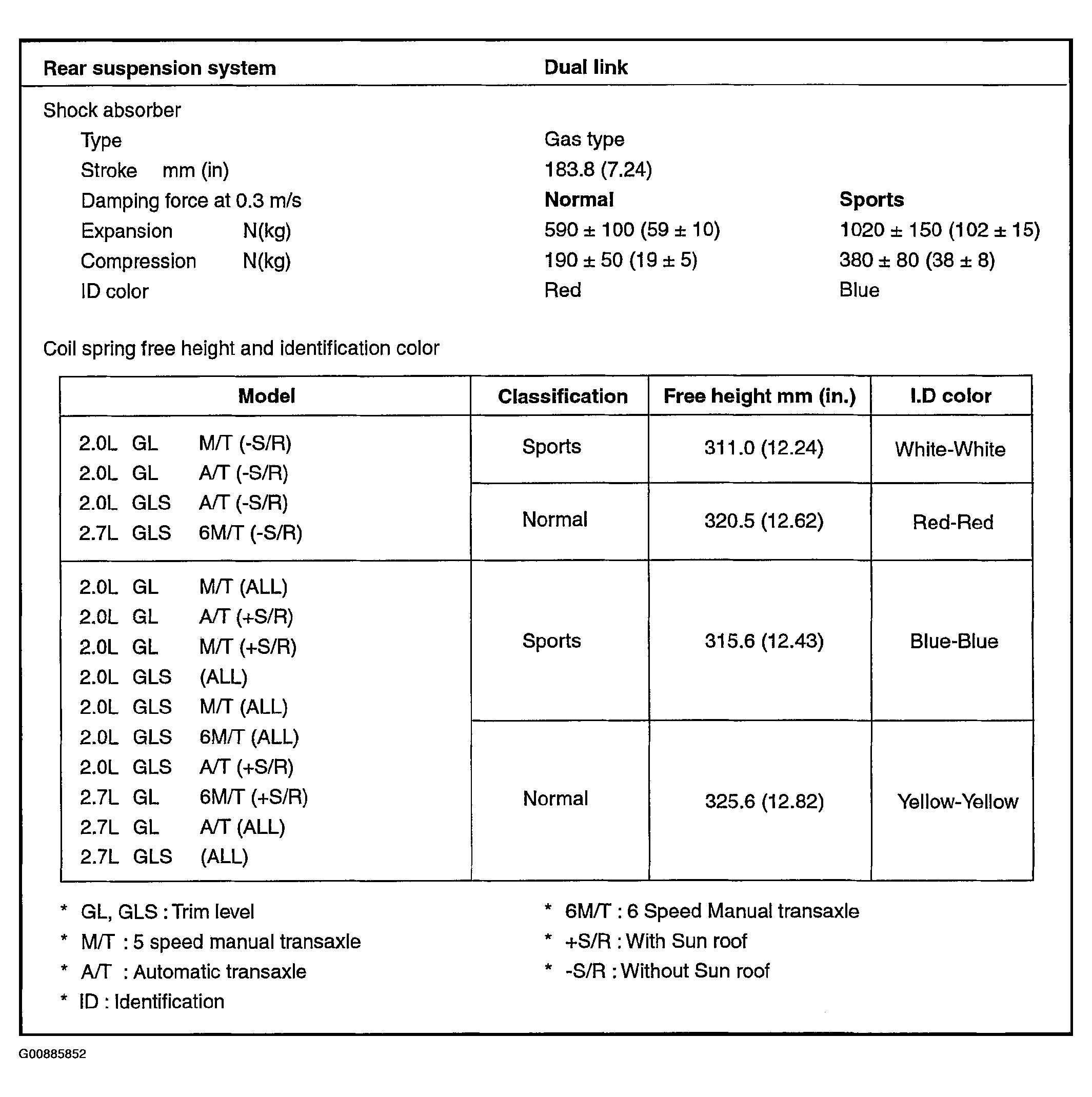

Fig 2: Rear Suspension Specification
Courtesy of HYUNDAI MOTOR CO.
