Service Standard

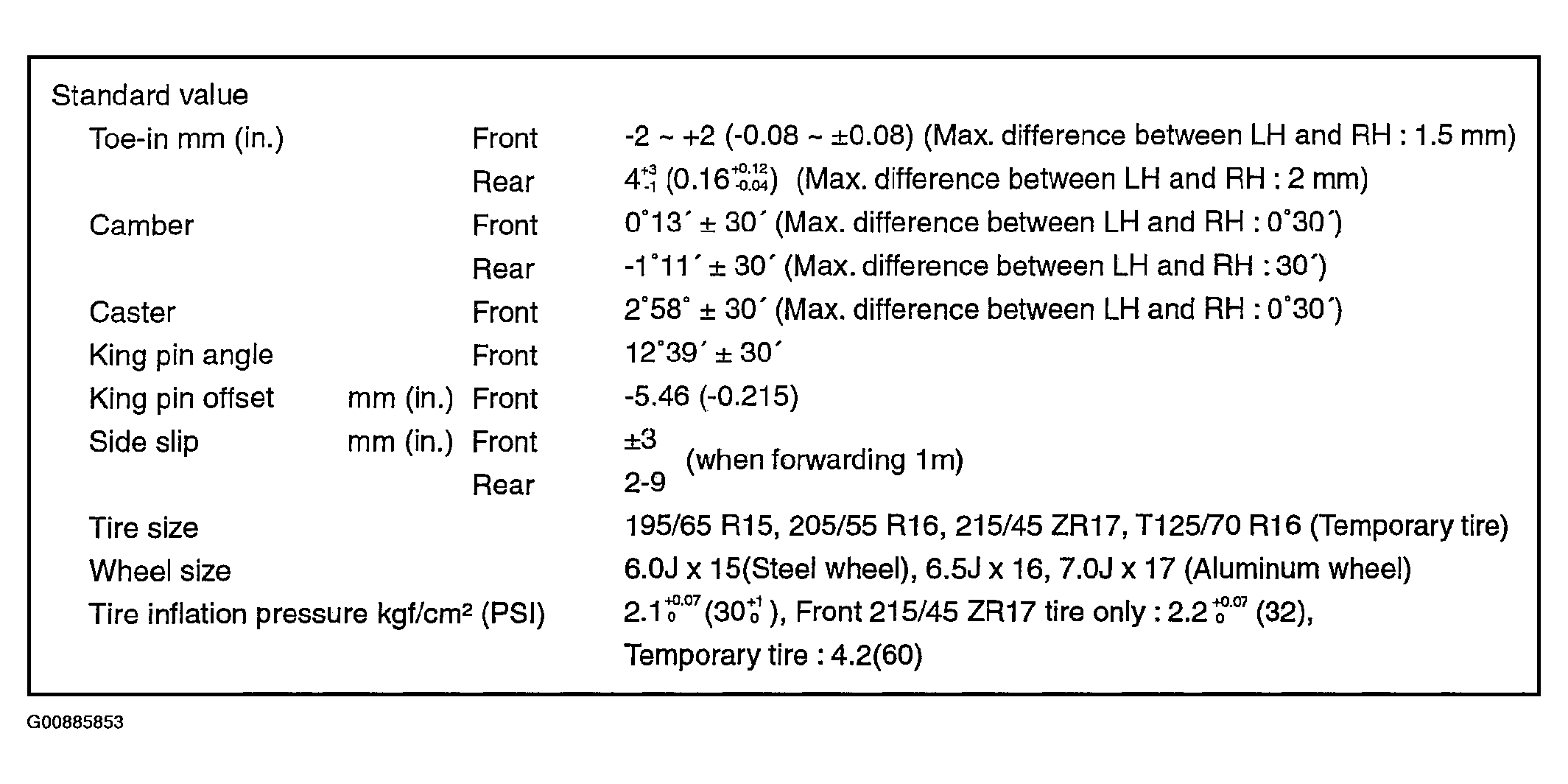

Fig 1: Service Standard Specifications
G00885853Courtesy of HYUNDAI MOTOR CO.
CAUTION: When rotating the "215/45 ZR17" Tires, ensure to follow the "ROTATION" direction marked on the sidewall of tires. See TIRE  .
