Components (6-Speed M/T)

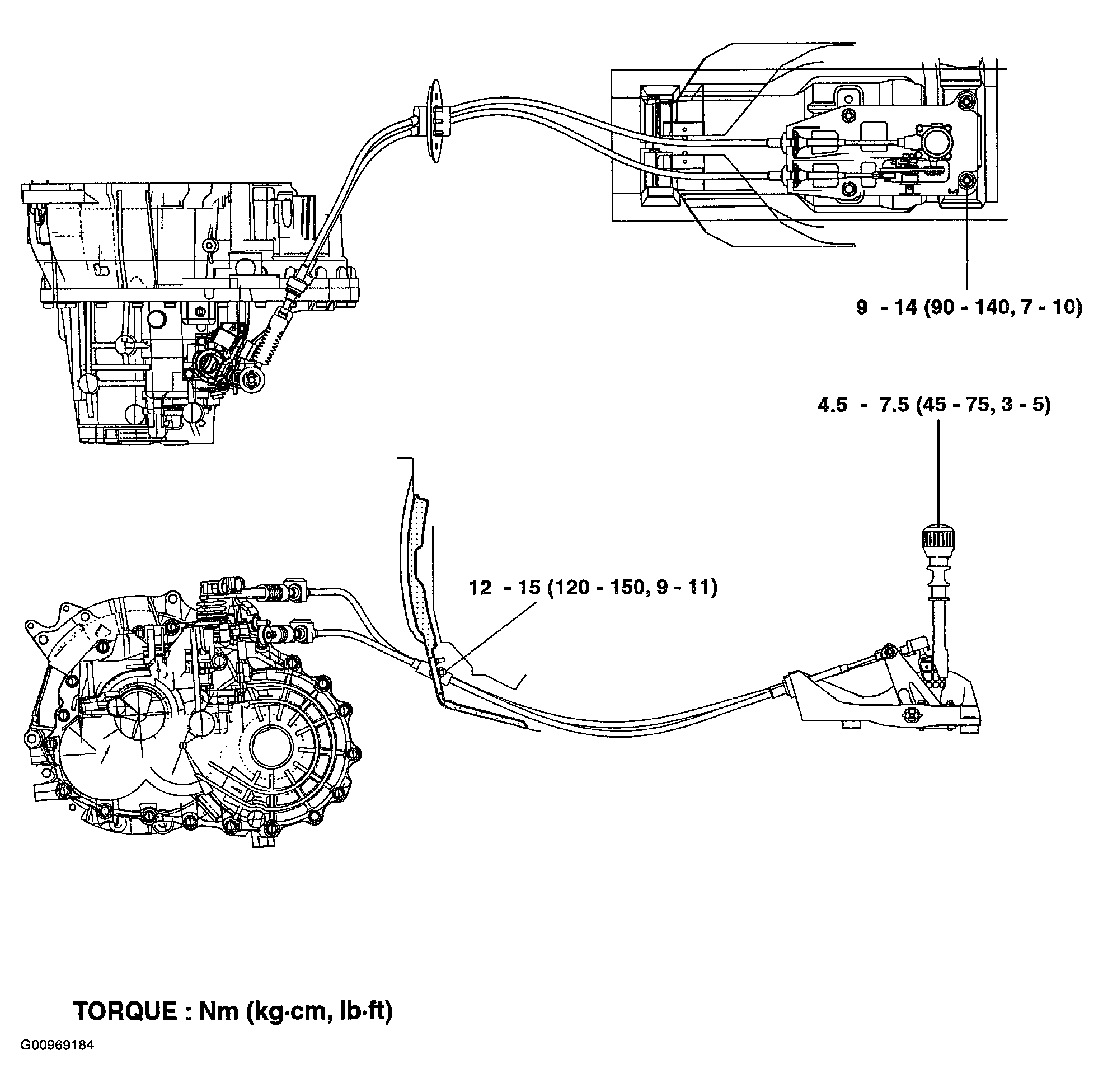

Fig 1: Manual Transaxle Control Components (6-Speed M/T)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
