Manual Transaxle Case: Components

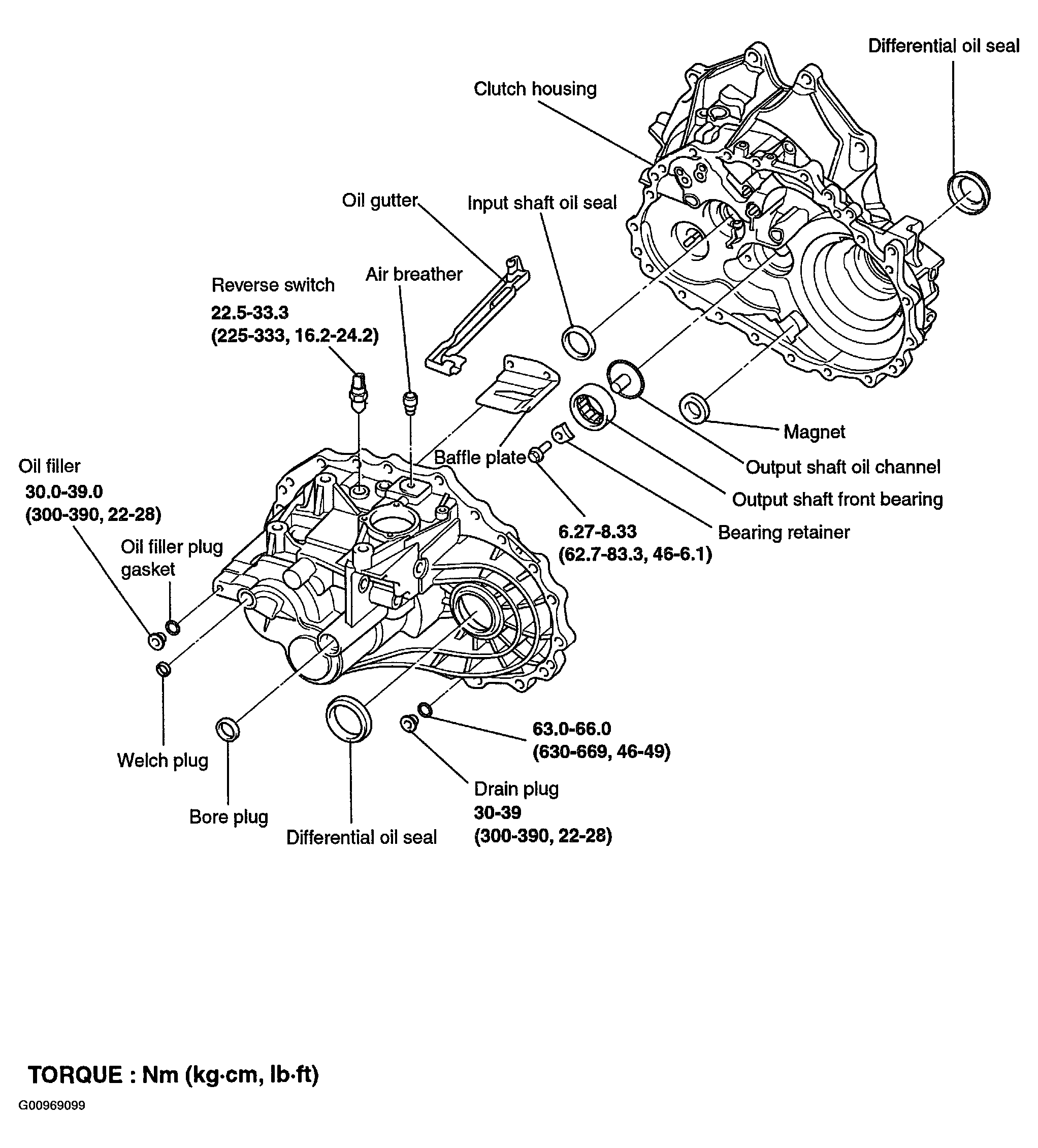

Fig 1: Manual Transaxle Case Components
G00969099Courtesy of HYUNDAI MOTOR CO.
