Component Specification

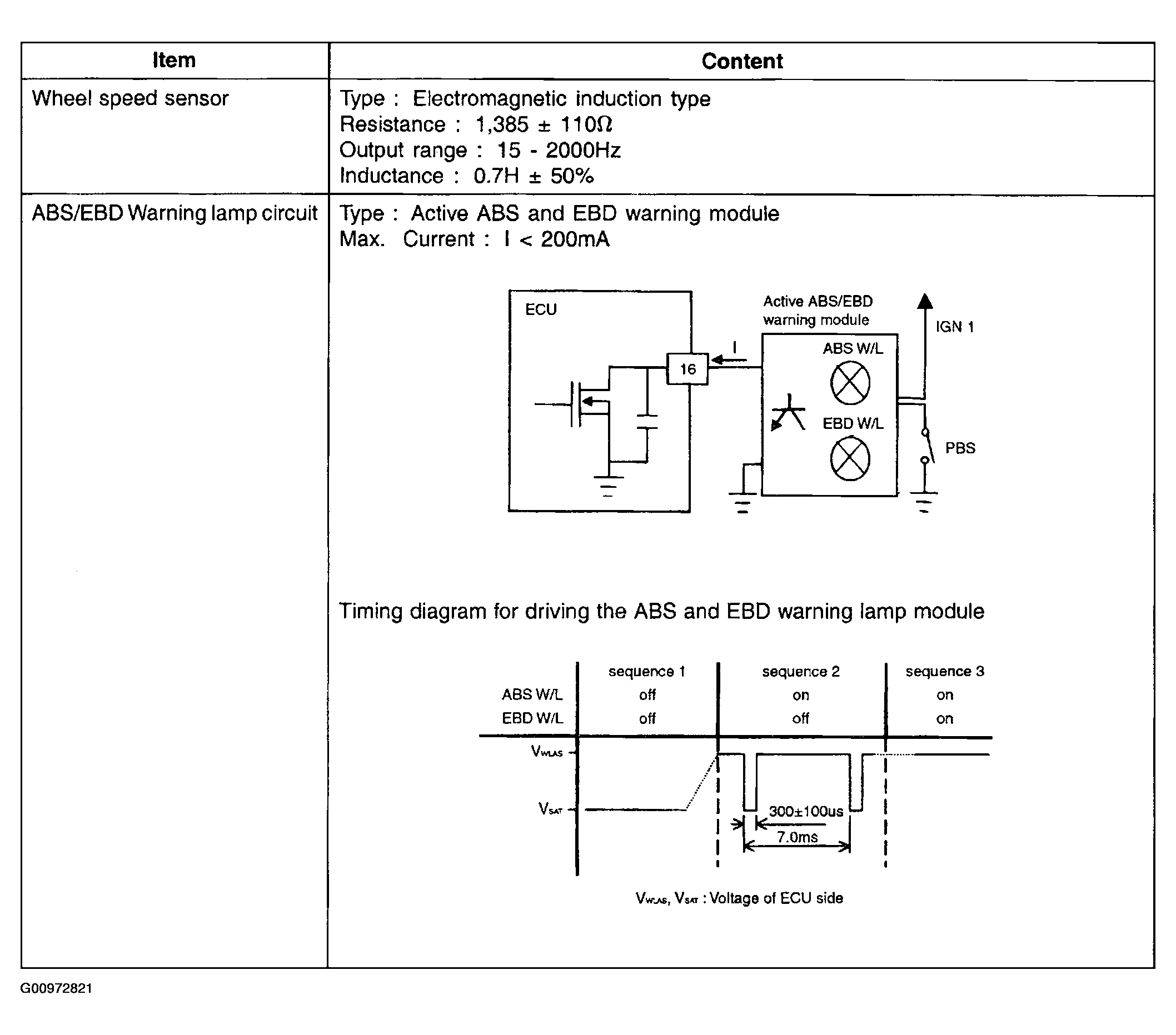

Fig 1: Component Specification Table (1 Of 3)
G00972821Courtesy of HYUNDAI MOTOR CO.

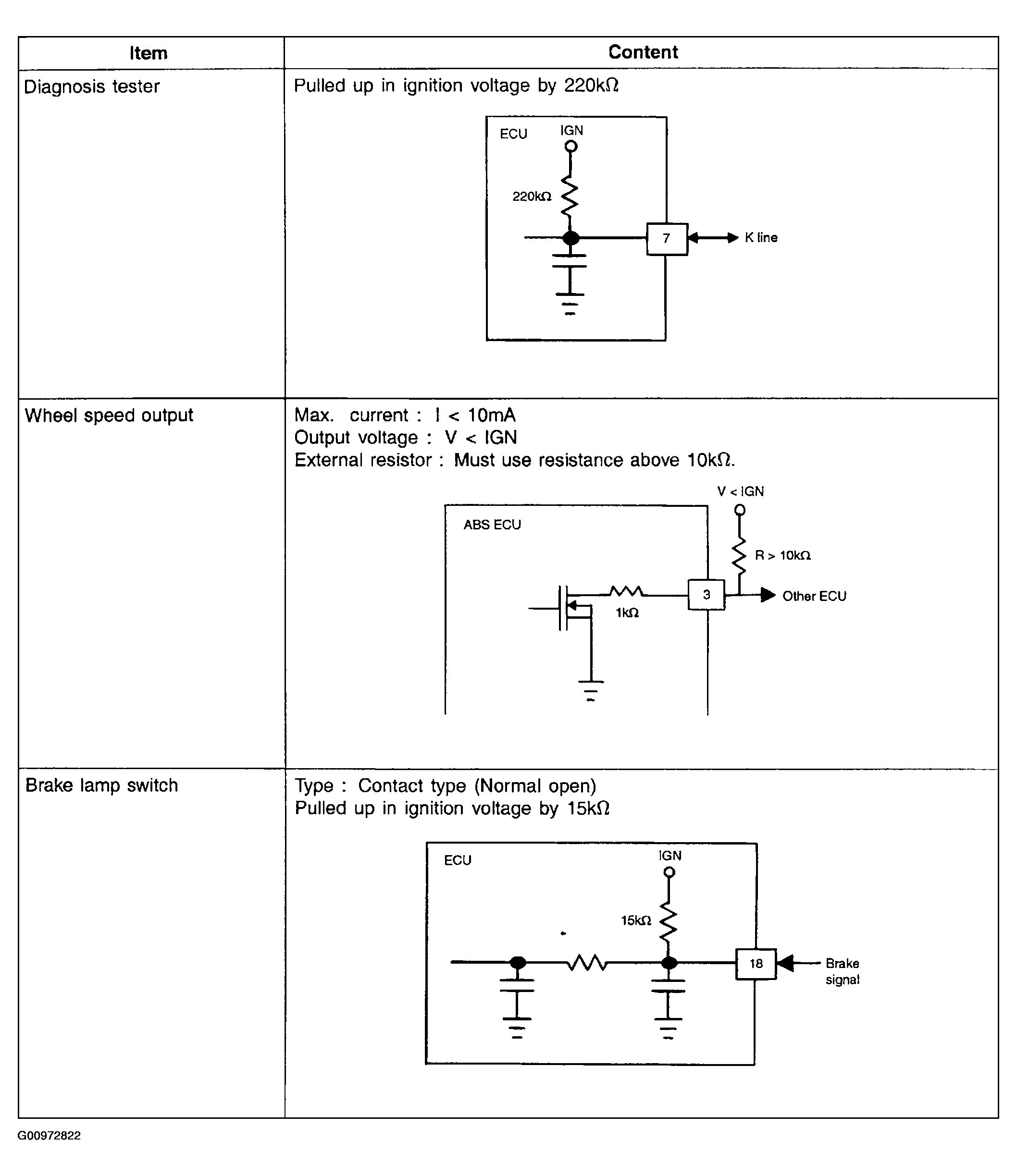

Fig 2: Component Specification Table (2 Of 3)
G00972822Courtesy of HYUNDAI MOTOR CO.

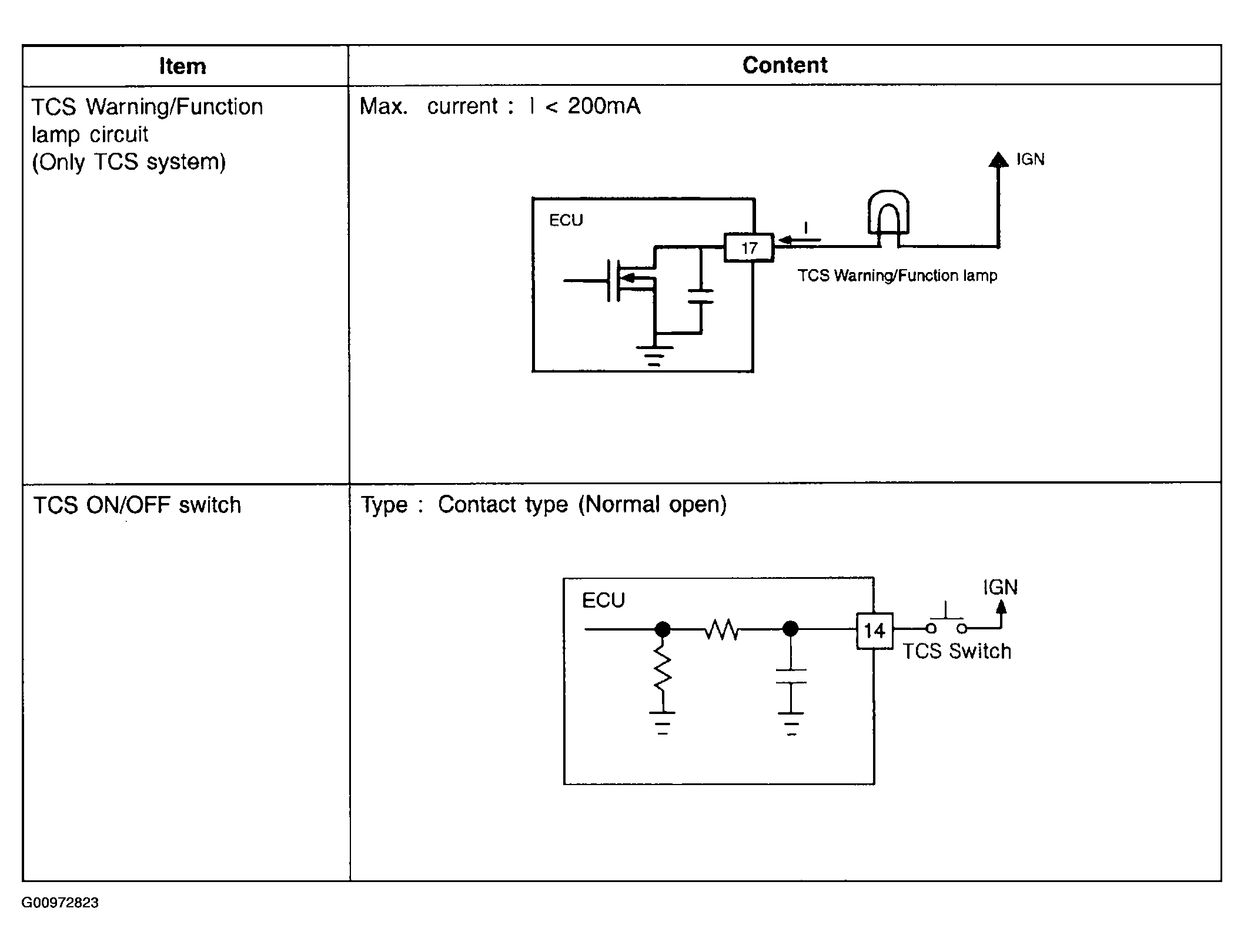

Fig 3: Component Specification Table (3 Of 3)
G00972823Courtesy of HYUNDAI MOTOR CO.
