Air Bag Control Module

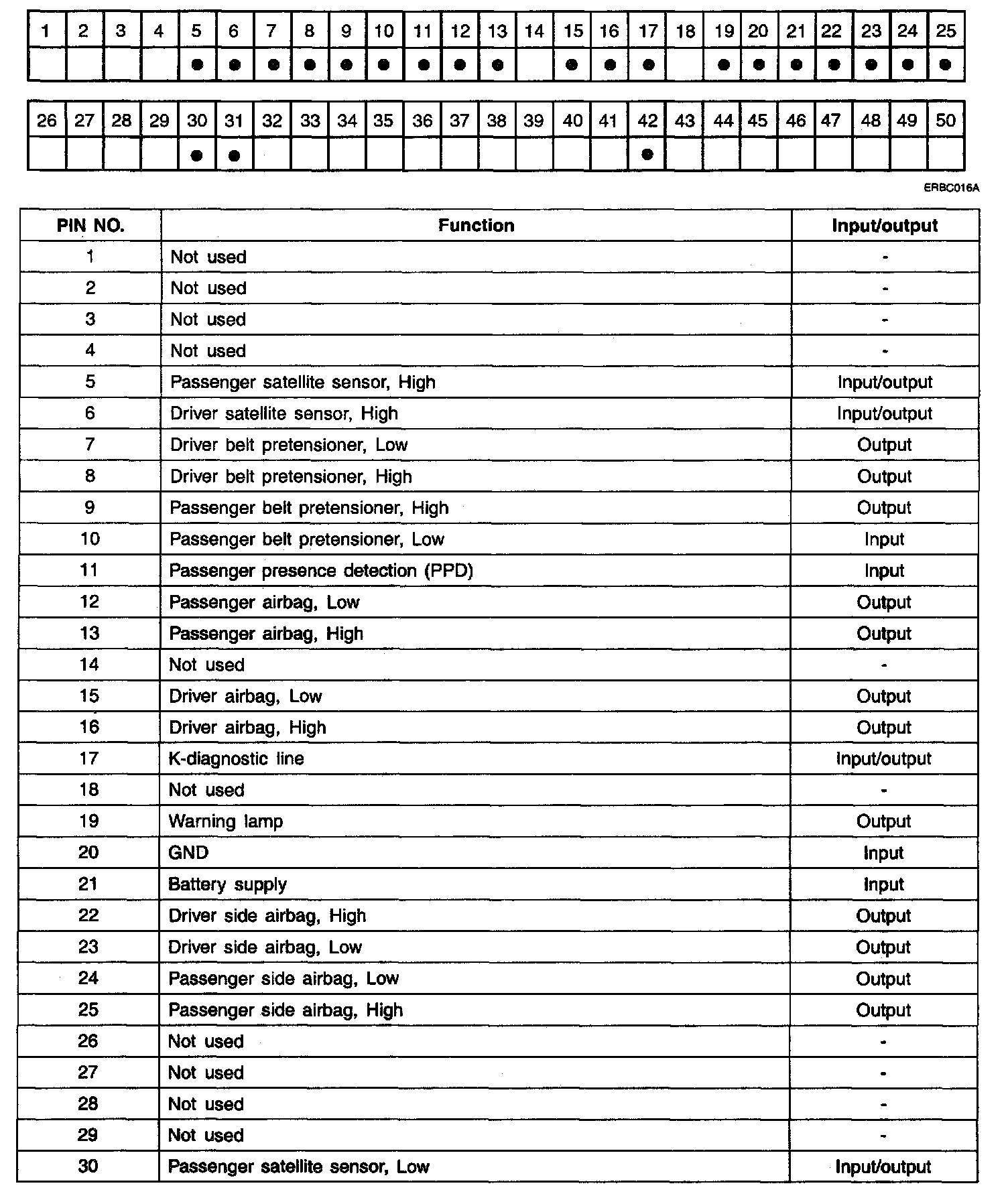

SRSCM Connector DAB + PAB + SAB + BPT (Pin No:1 - 30) Part 1:

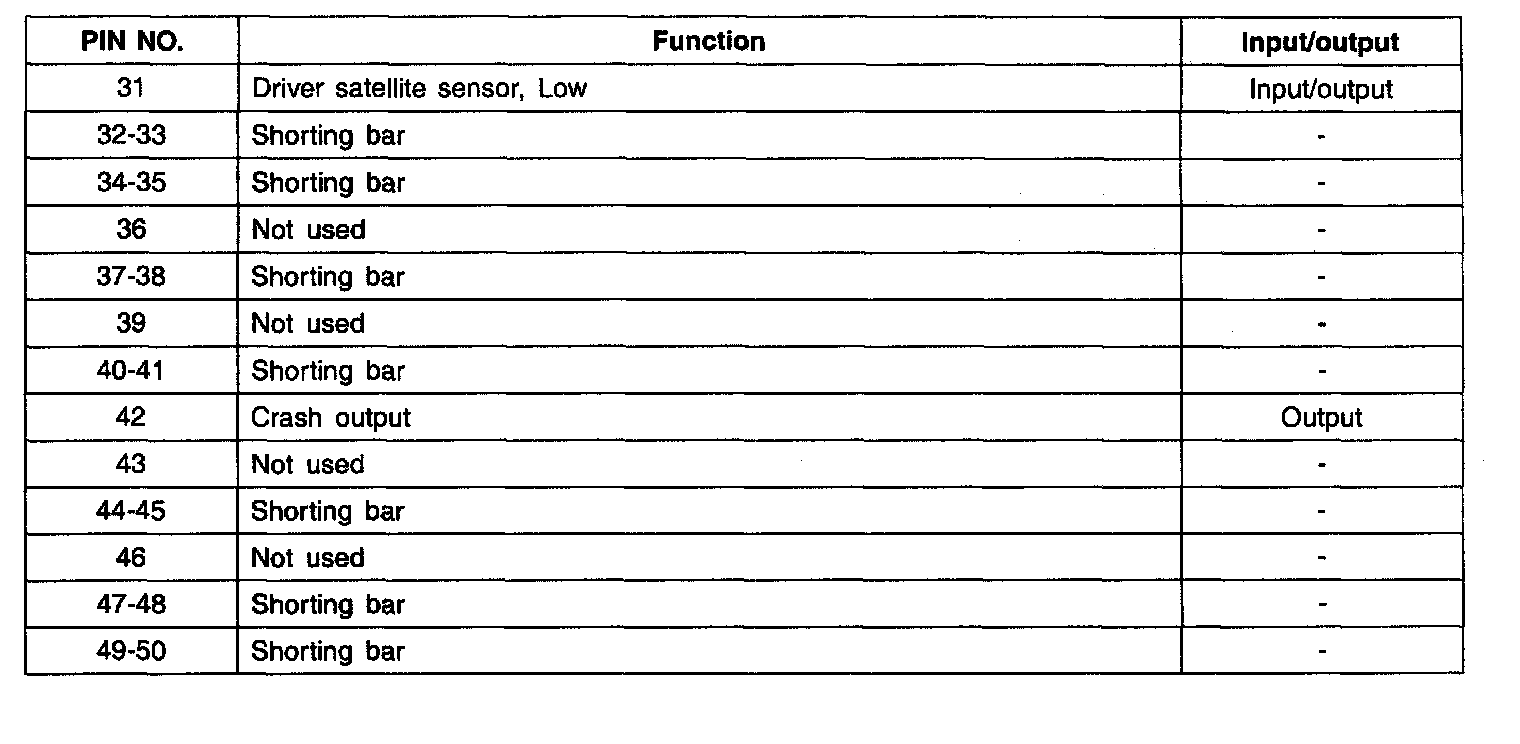

SRSCM Connector DAB + PAB + SAB + BPT (Pin No:31 - 50) Part 2:
